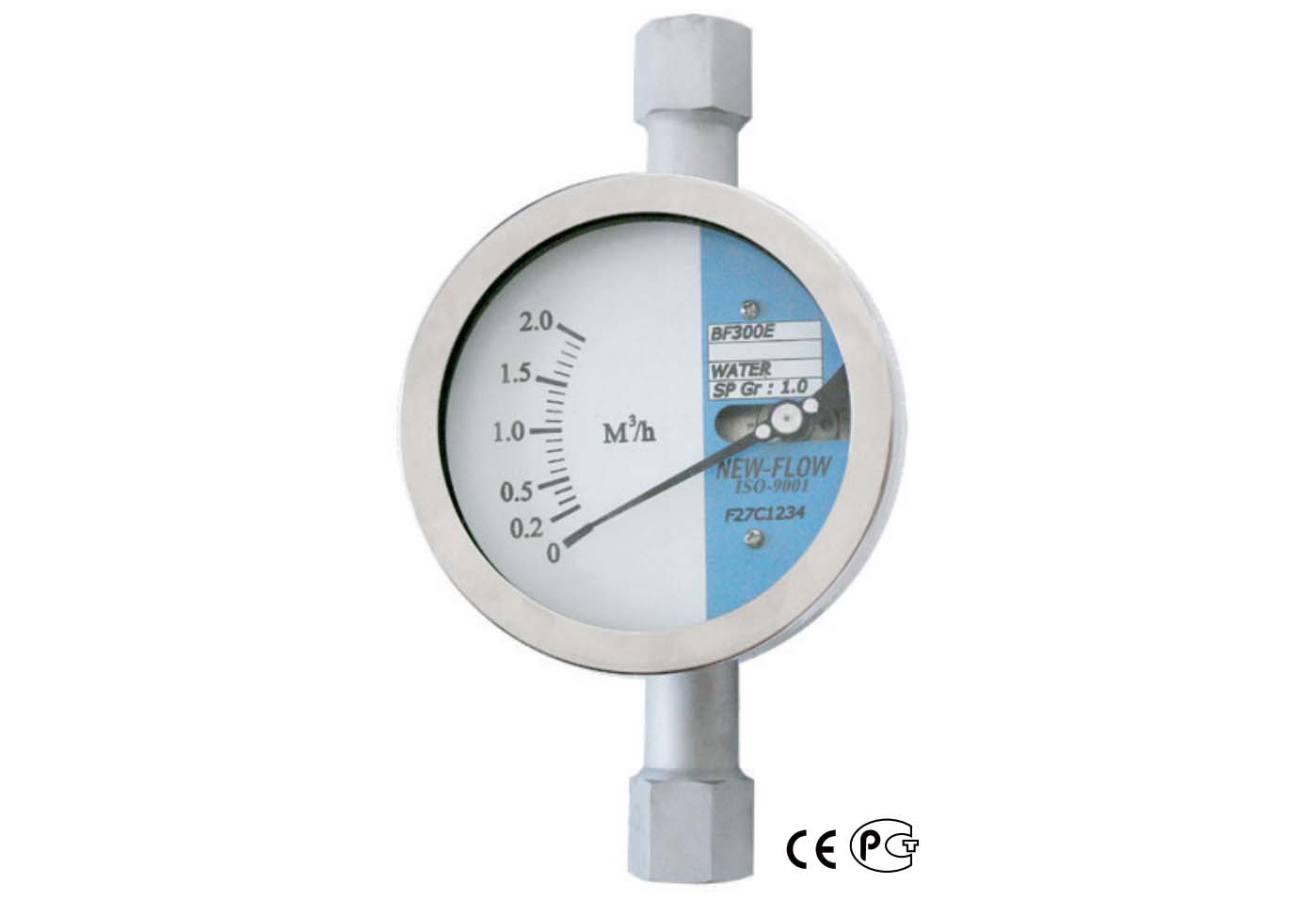

Metal Tube Flow Meter BF300E

Technical Data

BF300E — For high flows of gas, liquid and steam.

Case material
SS316.
Body wetted parts
SS316; others on request. Indication via magnetic coupling, without seals.
Scales calibrated
L/h, m³/h, kg/h, %, etc.
Flow rates
Water: 4–100,000 L/h. Air: 0.1–1,200 Nm³/h. Special ranges on request.
Connection types
Thread, flange, tri-clamp and sanitary; others on request.
Connection sizes
½–5 in.
Mounting length
250 mm standard; others on request.
Working temperature
−50 to +200°C; +300°C option.
Protection class
IP66.
Accuracy
±2% F.S.; ±1.6% option. The first three standard scales are ±5% F.S.
Maximum pressure
40 kg/cm² standard; up to 100 kg/cm² optional.
Damping
Optional mechanical damper.

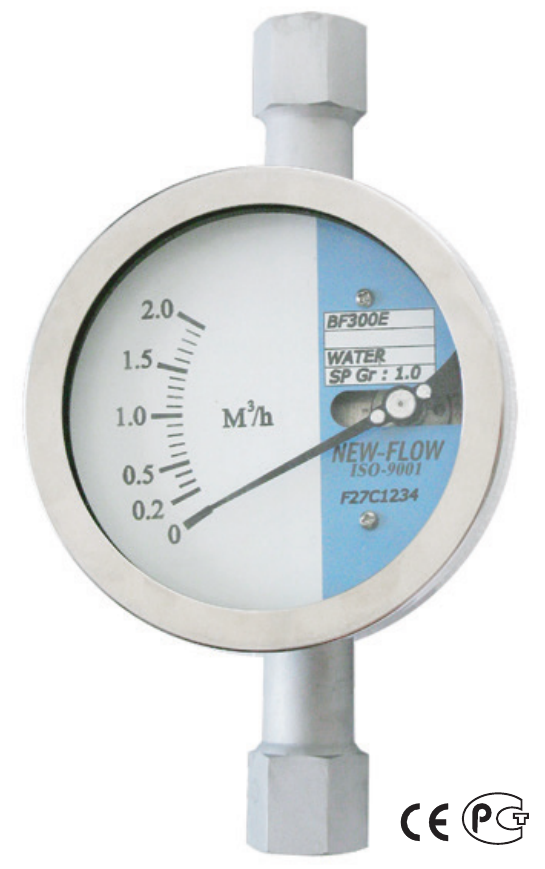

BF300E flow meters from the original datasheet

Dimensions — mm

Swipe across a drawing to see all details.

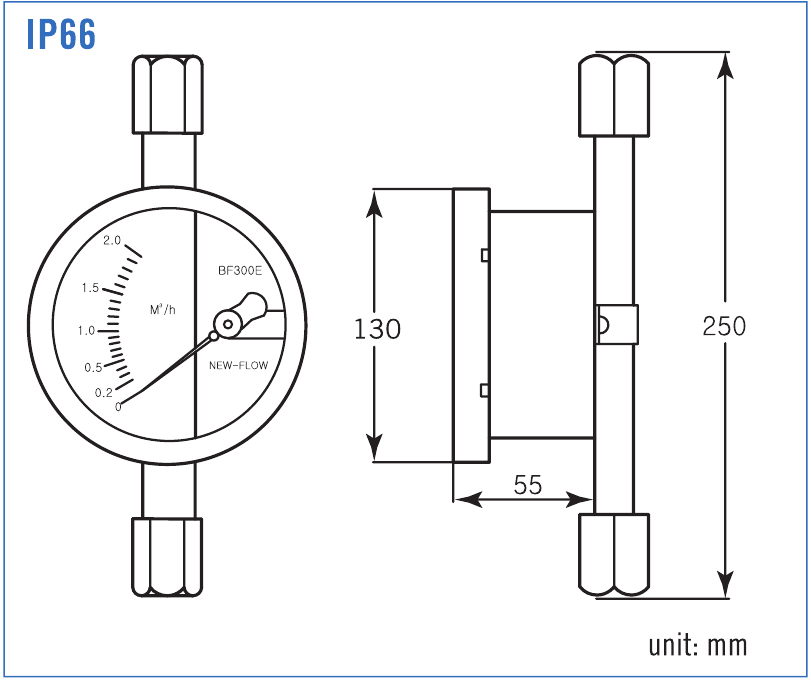

IP66 threaded model — 250 mm mounting length

IP66 threaded model — 250 mm mounting length

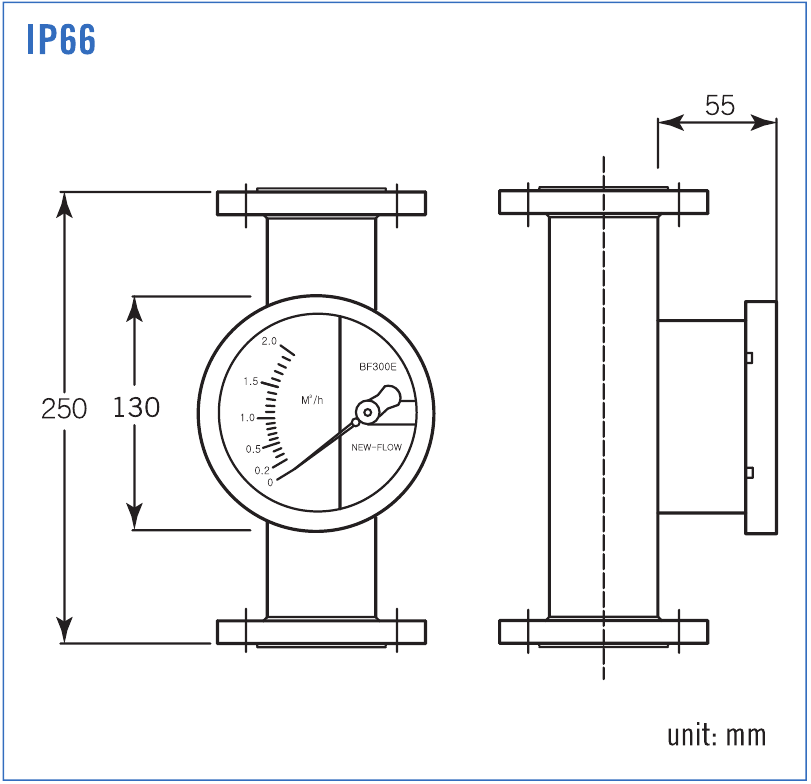

IP66 flanged model — 250 mm mounting length

IP66 flanged model — 250 mm mounting length

Damping and principle

Swipe across a drawing to see all details.

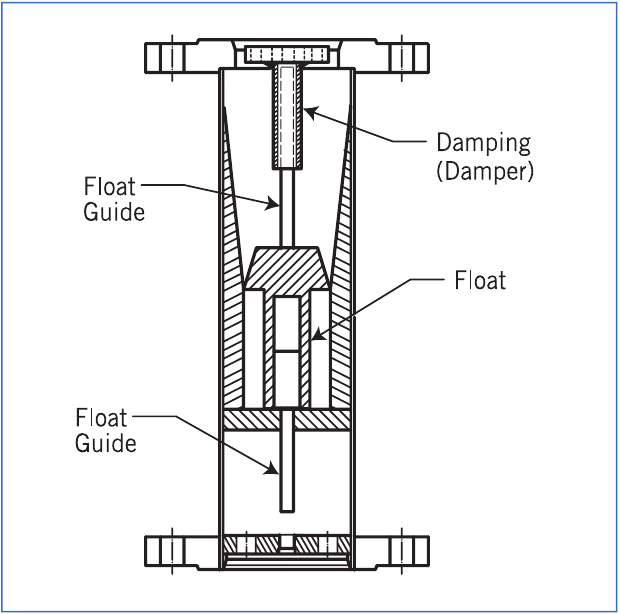

Mechanical damper — optional

Mechanical damper — optional

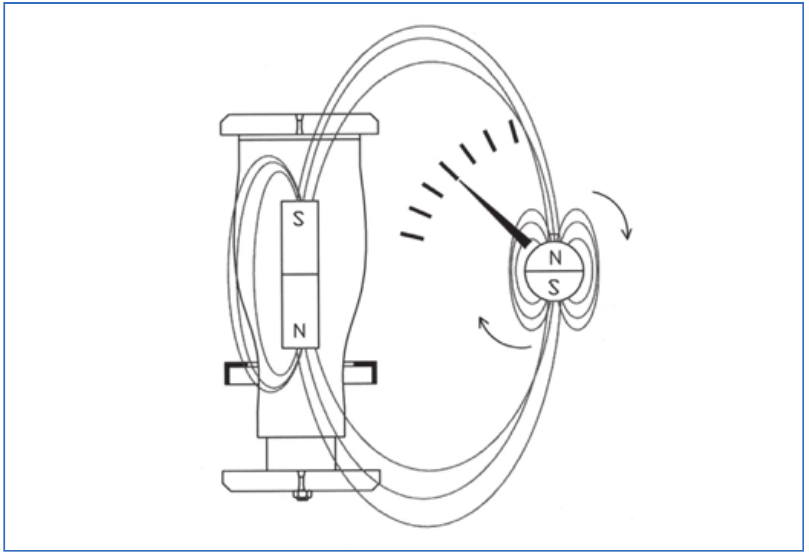

Magnetic indication principle

Magnetic indication principle

Standard Scales

TubeWater — L/h
20°C		Air — Nm³/h
0°C, 1.013 bar		Pressure loss
mm water		ConnectionAccuracy
BF3001E4–300.1–1≤750½ in±5% F.S.
BF3002E4–400.13–1.3≤750½ in±5% F.S.
BF3003E5.5–550.17–1.7≤750½ in±5% F.S.
BF3004E8–800.2–2≤750½ in±2% F.S.
BF3005E16–1600.5–5≤750½ in±2% F.S.
BF3006E18–1800.6–6≤750½ in±2% F.S.
BF3007E30–3001–10≤750½ in±2% F.S.
BF3008E50–5001.5–15≤750½ in±2% F.S.
BF3009E60–6001.8–18≤750½ in±2% F.S.
BF3010E70–7002–20≤750½ in±2% F.S.
BF3011E100–10003–30≤750¾ in±2% F.S.
BF3012E120–12004–40≤7501 in±2% F.S.
BF3013E160–16005–50≤7001 in±2% F.S.
BF3014E200–20006–60≤7001 in±2% F.S.
BF3015E240–24007–70≤7001 in±2% F.S.
BF3016E280–28008.5–85≤7001 in±2% F.S.
BF3017E320–32009–90≤7001 in±2% F.S.
BF3018E350–350010–100≤7001 in±2% F.S.
BF3019E500–500014–140≤6501½ in±2% F.S.
BF3020E600–600015–150≤6501½ in±2% F.S.
BF3021E700–700020–200≤6501½ in±2% F.S.
BF3022E800–800024–240≤6501½ in±2% F.S.
BF3023E1000–1000030–300≤6502 in±2% F.S.
BF3024E1200–1200035–350≤6502 in±2% F.S.
BF3025E1400–1400040–400≤6502 in±2% F.S.
BF3026E1500–1500045–450≤10002 in±2% F.S.
BF3027E1800–1800060–600≤8002½ in±2% F.S.
BF3028E2000–2000075–750≤8002½ in±2% F.S.
BF3029E2300–2300090–900≤8503 in±2% F.S.
BF3030E2500–25000120–1200≤10003 in±2% F.S.
BF3031E2800–28000—≤11003 in±2% F.S.
BF3032E3000–30000—≤12003 in±2% F.S.
BF3033E3500–35000—≤10004 in±2% F.S.
BF3034E4000–40000—≤10004 in±2% F.S.
BF3035E5000–50000—≤12004 in±2% F.S.
BF3036E6000–60000—≤15004 in±2% F.S.
BF3037E10000–100000—≤25005 in±2% F.S.

Water at 20°C; air at 0°C and 1.013 bar. ±1.6% F.S. accuracy is available on request. Special ranges and flange sizes are available on request. Technical data are subject to change.

Build your BF300E ordering code

Select the options in the same order as the PDF. Each choice shows its ordering code.

Ordering information

Options follow PDF page 3. Standard ranges show the published Water/Air scales for your connection size. Custom ranges are available on request.

Service condition

Materials, calibration and pressure/temperature suitability will be reviewed with your enquiry.
