C6H Ultrasonic Flow Sensor
Split-type Multi-channel Flow Sensor
Applications and measurement
Monitor up to six water pipelines simultaneously using transit-time ultrasonic measurement. Separate clamp-on sensors connect to a central transmitter, allowing installation without pipe cutting or process interruption.

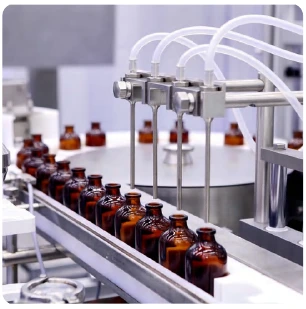

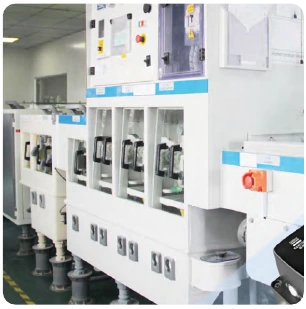

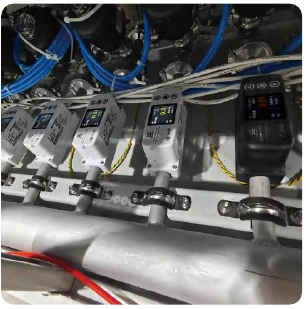

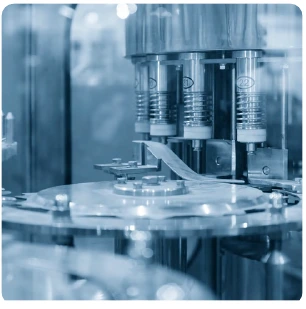

Applications include liquid cooling systems, industrial cleaning, LCD manufacturing, and medical and pharmaceutical systems. The specified measuring medium is water and the specified pipe material is stainless steel.
About C6H

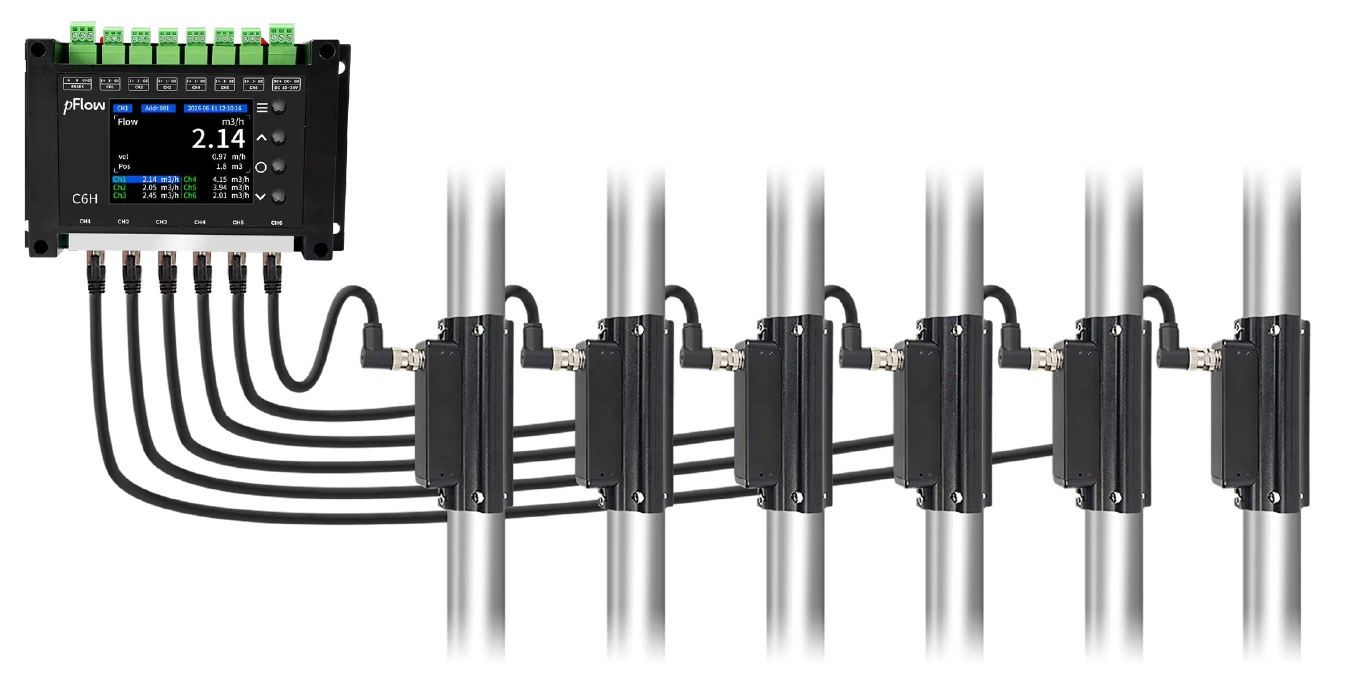

The C6H combines independent measurement channels with centralised readings on a 2.8-inch colour LCD. Each channel connects to one sensor through an RJ45 interface.
- One to six pipelines monitored simultaneously.
- Clamp-on installation without stopping production.
- RJ45 quick connections for each sensor.
- Colour screen with centralised digital readings.
- 4–20 mA outputs and RS485 Modbus communication.
- DN10–DN32 or DN40–DN50 sensor groups; sizes from the two groups cannot be mixed in one device.
Application and Installation Guidance

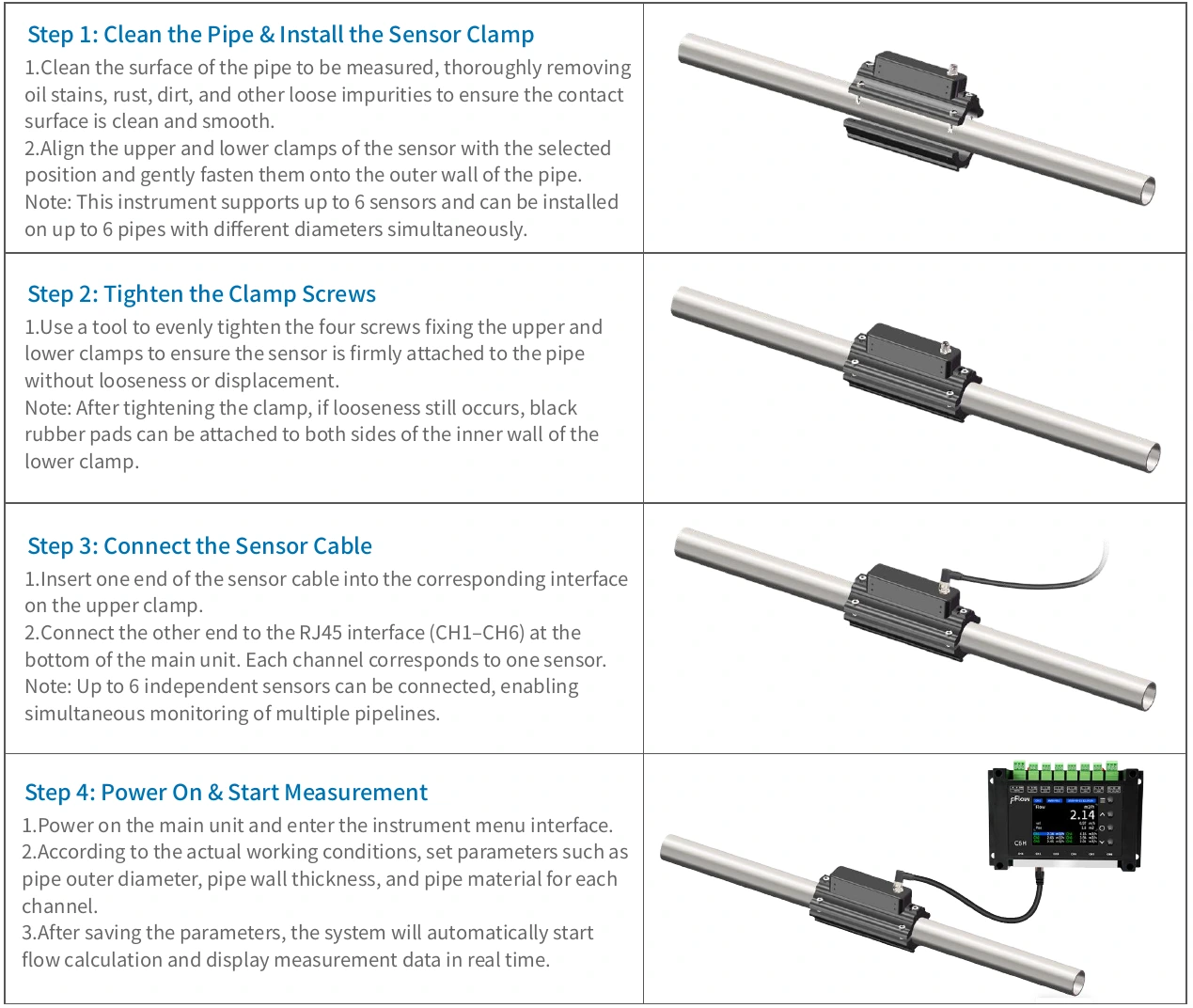

- Select a suitable measurement point and clean away oil, rust, dirt and loose impurities. Align the upper and lower clamps around the pipe.
- Use the coupling pad to ensure tight contact without air gaps. Match the sensor's flow direction arrow to the actual flow direction.
- Tighten the four clamp screws evenly. For Level B pipe fit, apply one or two layers of the supplied rubber pads to both sides of the lower clamp's inner wall.
- Connect each sensor cable to its sensor and the corresponding CH1–CH6 RJ45 input on the transmitter.
- Power on and set the actual pipe outside diameter, wall thickness and pipe material for each channel. Save the parameters to start measurement.
Technical Data and Wiring
- Measurement
- Transit-time ultrasonic; split transmitter and clamp-on sensors
- Medium / pipe material
- Water / stainless steel
- Nominal pipe sizes
- DN10–DN50; see actual outside-diameter fit table
- Flow velocity
- 0.3–5.0 m/s
- Accuracy
- ±3% FS
- Repeatability
- 0.6%
- Channels
- 1–6 independent measurement channels
- Communication
- RS485 (Modbus)
- Analogue output
- 4–20 mA; CH1–CH6
- Power supply
- 10–36 VDC / 500 mA
- Display
- 2.8-inch colour LCD, 240 × 320 pixels
- Controls
- 4 tactile keys
- Transmitter temperature
- −10 to +50°C
- Sensor temperature
- 0–85°C
- Humidity
- 35–85% RH, non-condensing
- Protection
- IP54
- Transmitter enclosure
- ABS; split type
- Sensor construction
- Clamp-on; AL6061 aluminium alloy
- Cable
- 5 m, Ø5 mm, PVC sheath
- Sensor connection
- RJ45; CH1–CH6
- Transmitter dimensions
- 145 × 90 × 40 mm

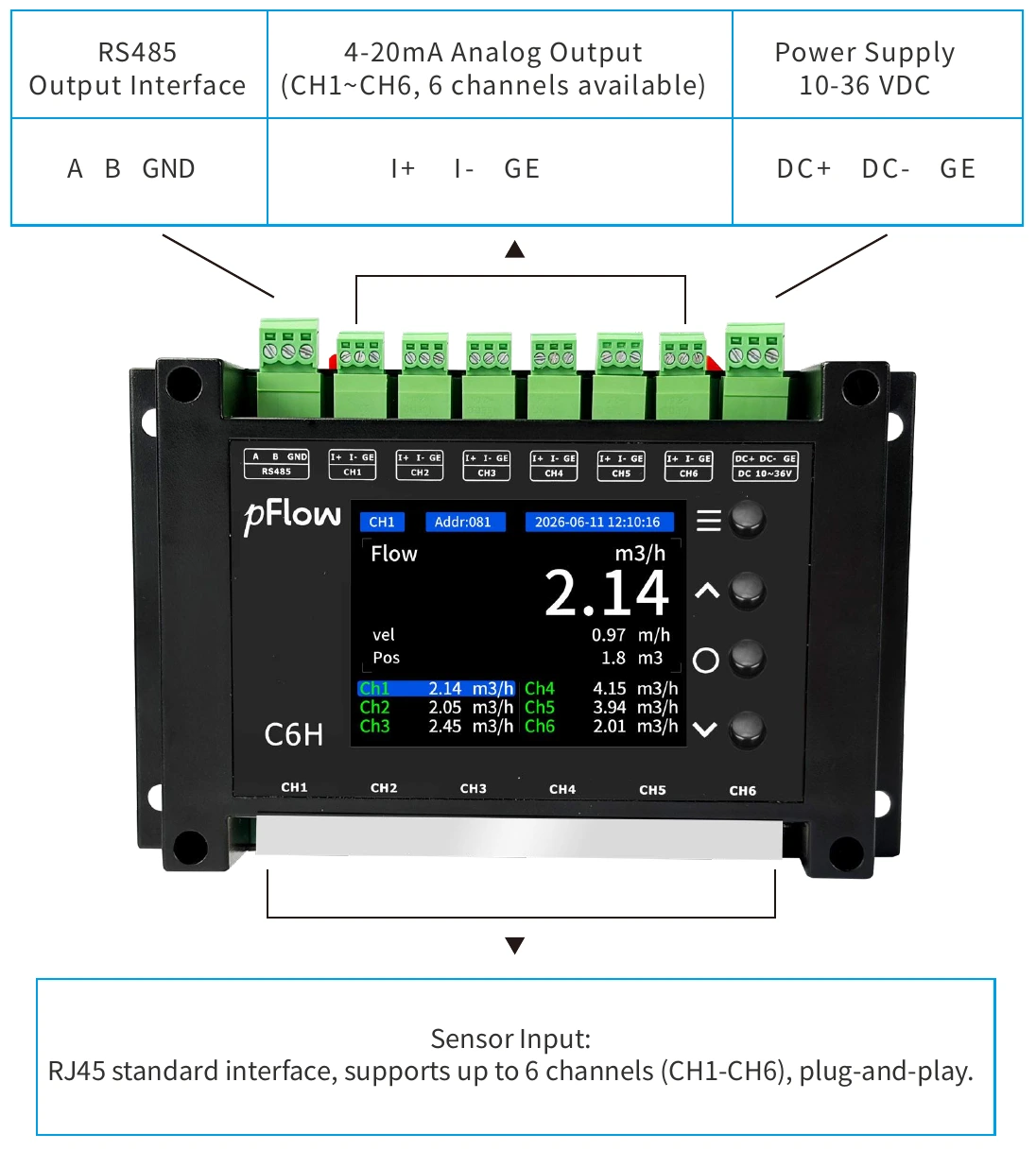

Terminal references
- RS485: A, B, GND.
- 4–20 mA outputs CH1–CH6: I+, I−, GE.
- 10–36 VDC power: DC+, DC−, GE.
- Sensor inputs: RJ45, CH1–CH6.
Pipe Sizes and Flow Ranges
For stainless steel pipe. DN is the nominal pipe size; check the actual outside diameter against the fit ranges below.
| Nominal size | Level A pipe OD — mm | Level B pipe OD — mm | Overall pipe OD — mm | Flow range — m³/h |
|---|---|---|---|---|
| DN10 | 16–18 | Not listed | 16–18 | 0.1–1.5 |
| DN15 | 18–23 | Not listed | 18–23 | 0.2–3.5 |
| DN20 | 25–29 | 23–25 | 23–29 | 0.4–6 |
| DN25 | 32–36 | 29–32 | 29–36 | 0.5–9 |
| DN32 | 39–43 | 36–39 | 36–43 | 0.9–15 |
| DN40 | 50–54 | 46–50 | 46–54 | 1.3–23 |
| DN50 | 63–67 | 59–63 | 59–67 | 2–35 |
Level B requires one or two layers of the supplied rubber pads on both sides of the lower clamp's inner wall. Level B is not listed for DN10 or DN15.

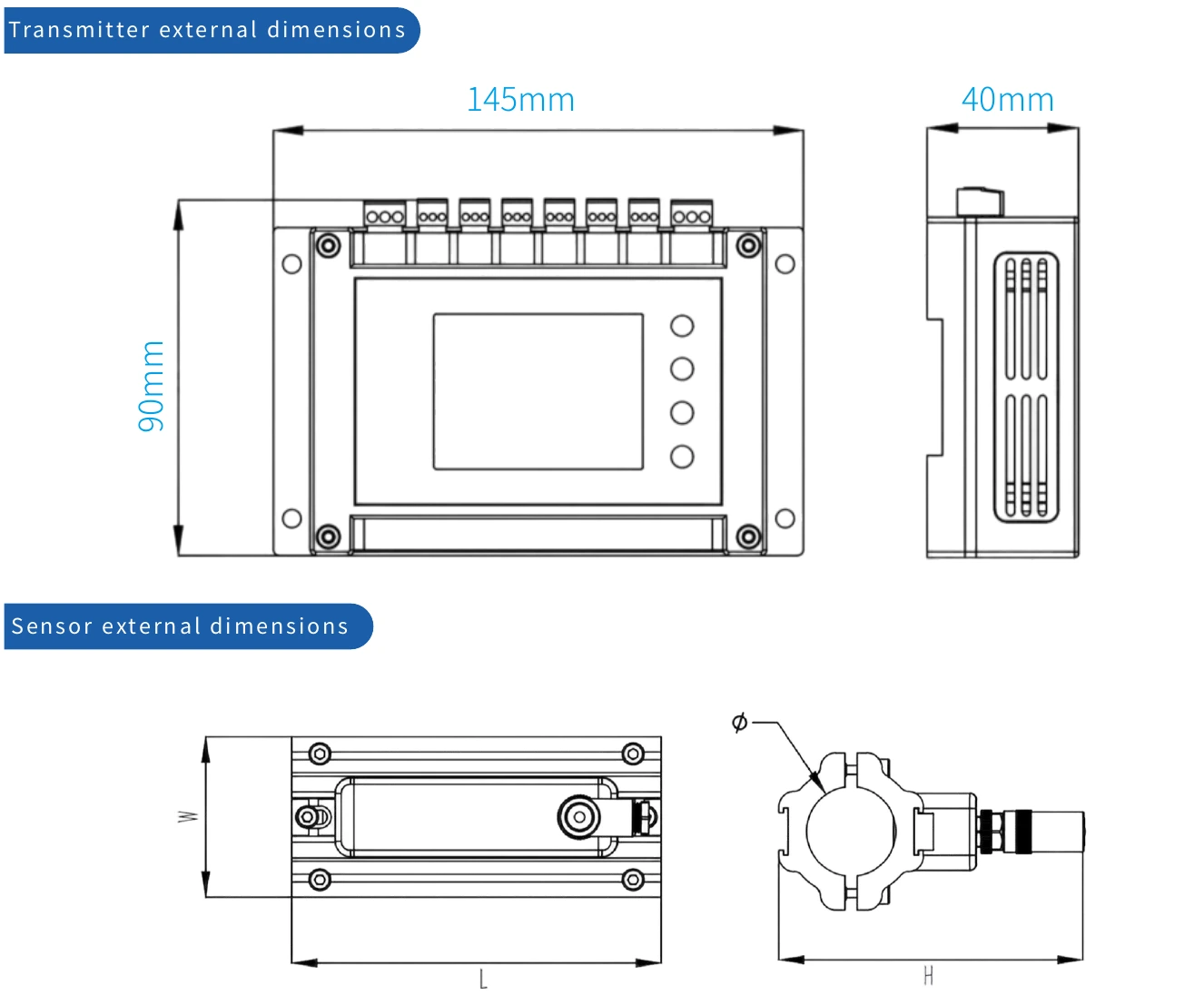

Product Dimensions — mm
Transmitter: 145 mm wide × 90 mm high × 40 mm deep.
| Pipe size | W | L | H | Ø | Pipe OD range |
|---|---|---|---|---|---|
| DN10 | 38 | 118 | 91 | 18 | 16–18 |
| DN15 | 43 | 118 | 96 | 23 | 18–23 |
| DN20 | 51 | 118 | 101 | 29 | 23–29 |
| DN25 | 56 | 118 | 108 | 36 | 29–36 |
| DN32 | 63 | 118 | 115 | 43 | 36–43 |
| DN40 | 74 | 118 | 126 | 54 | 46–54 |
| DN50 | 89 | 118 | 118 | 67 | 59–67 |
Build your C6H ordering code
Example — C6H-1-6-1A2C3B4C5D6E
DN10–DN32 group with six channels: CH1 DN10, CH2 DN20, CH3 DN15, CH4 DN20, CH5 DN25 and CH6 DN32.
