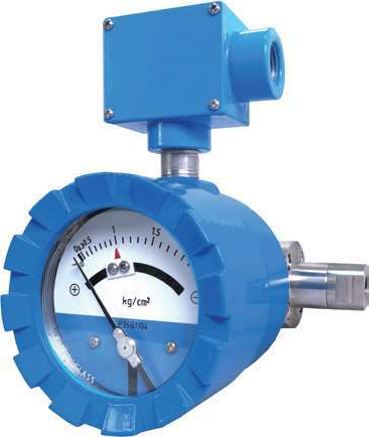

DPG5000 Differential Pressure Gauge

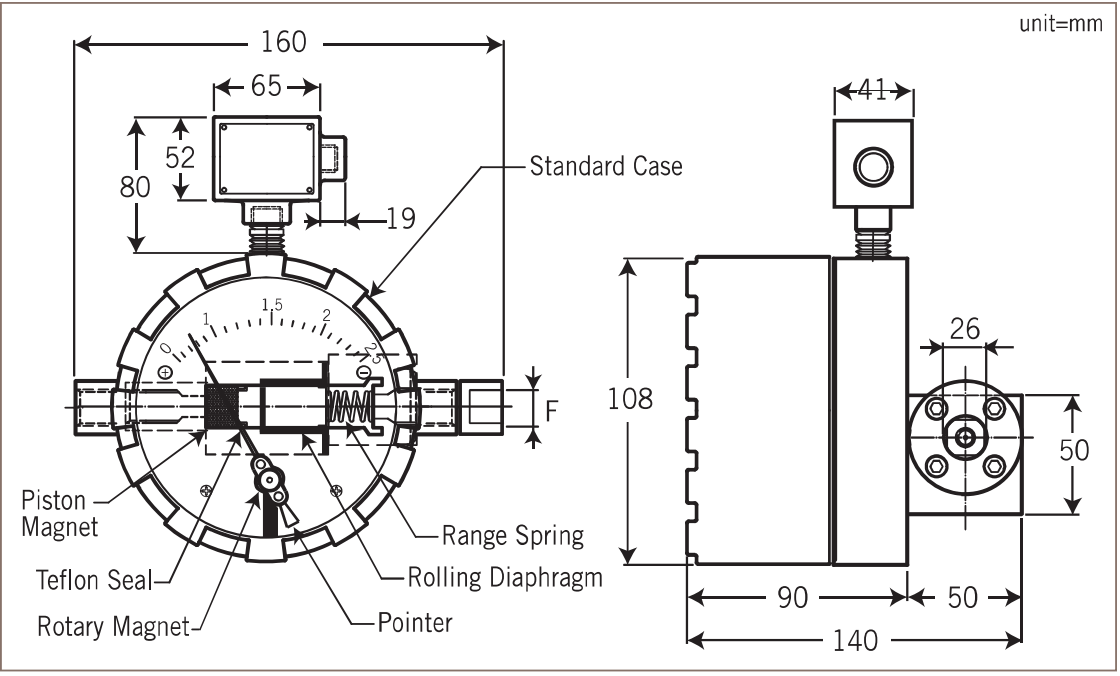

The DPG5000 uses high and low pressure ports with a spring and diaphragm and magnetic coupling to indicate differential pressure on a dial. One or two SPDT switches or a 4–20 mA output are available.
Weatherproof · IP66Diaphragm typeWorking temperature: max. 80°C
Features
- Accuracy: ±2% of full scale on rising pressure.
- 4-inch dial.
- Painted die-cast aluminium-alloy housing; SS316 housing available.
- Viton diaphragm; other wetted parts in SS316.
- High and low sides must be pressurised on line at the same time.
- Flow scale available on request.
Technical specifications
- Protection
- IP66.
- Working pressure
- 200 kg/cm². High and low sides must be pressurised on line at the same time.
- Working temperature
- Maximum 80°C.
- Process connection
- ½ or ¼ inch NPT female.
- Switch rating
- 5 A at 125 VAC; 5 A at 250 VAC; 2 A at 30 VDC.
- Switch dead band
- ±12%.
- Output signal
- 4–20 mA, two wires; 24 VDC power supply.
- Electrical connection
- ½ inch NPT female standard; ¾ inch NPT female available.
Differential pressure ranges and dead band
| Code | Range (psi) | Range (kg/cm²) | Maximum differential proof pressure (psi) |
|---|---|---|---|
| 07R | 0–7 | 0–0.5 | 8 |
| 09R | 0–9 | 0–0.6 | 10 |
| 12R | 0–12 | 0–0.8 | 13 |
| 17R | 0–17 | 0–1.2 | 19 |
| 30R | 0–30 | 0–2 | 33 |
| 40R | 0–40 | 0–2.5 | 44 |
| 60R | 0–60 | 0–4 | 66 |
| 100R | 0–100 | 0–7 | 110 |
Switch dead band: ±12%.
