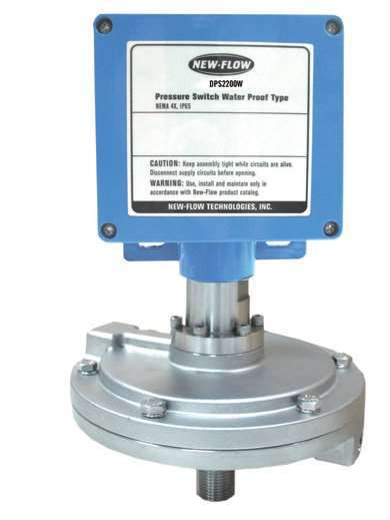

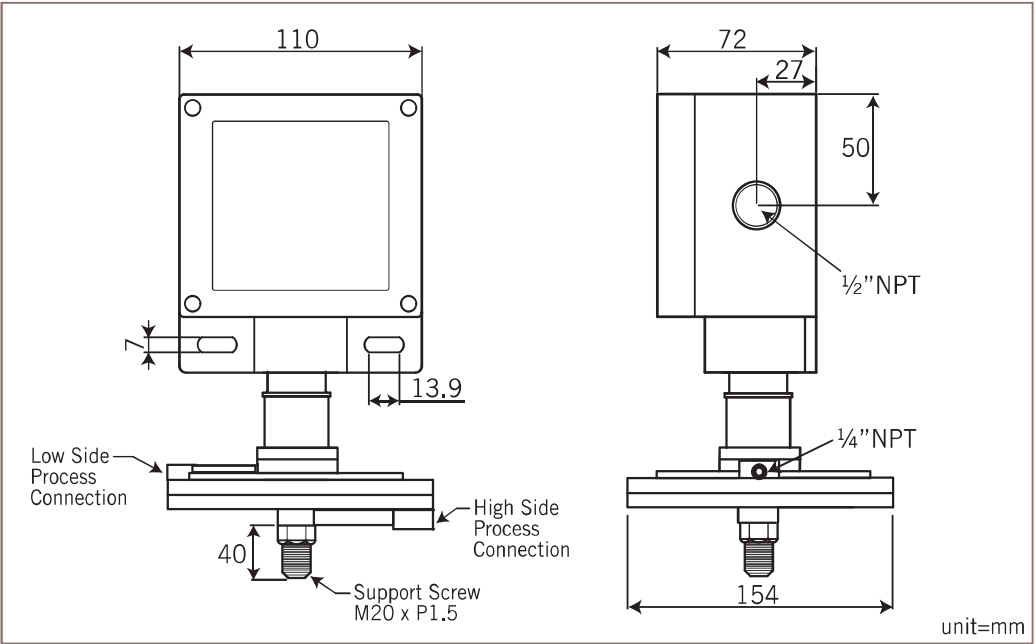

DPS2200W Differential Pressure Switch
The DPS2200W is a weatherproof differential pressure switch for control systems, with high set-point repeatability and a narrow dead band. The set point is adjustable without special tools.
NEMA 4 / 4X · IP66400–10000 mmH₂OTemperature: −30 to 205°C
Features
- Welded diaphragm pressure element.
- SS316 + Titanium wetted parts.
- Painted die-cast aluminium-alloy housing.
- One or two SPDT microswitches, with gold-contact options.
- Two SPDT switches share one setting point.
- Other range selections available on request.
Technical specifications
- Protection
- NEMA 4 / 4X; IP66.
- Temperature
- −30 to 205°C.
- Microswitch rating
- 15 A at 125/250 VAC; 0.4 A at 125 VDC; 3 A at 30 VDC.
- Gold-contact rating
- 1 A at 125/250 VAC.
- Process connection
- With adapter: ½ or ¼ inch NPT, BSP or PT female; M20 × P1.5.
- Conduit connection
- ¾ or ½ inch NPT female; M20 × P1.5 female.
Differential pressure ranges and dead band
| Code | Adjustable range (mmH₂O) | Dead band (mmH₂O) | Maximum proof pressure (psi) |
|---|---|---|---|
| 10R | 400–1900 | 30–80 | 750 |
| 20R | 1000–10000 | 70–200 | 750 |
