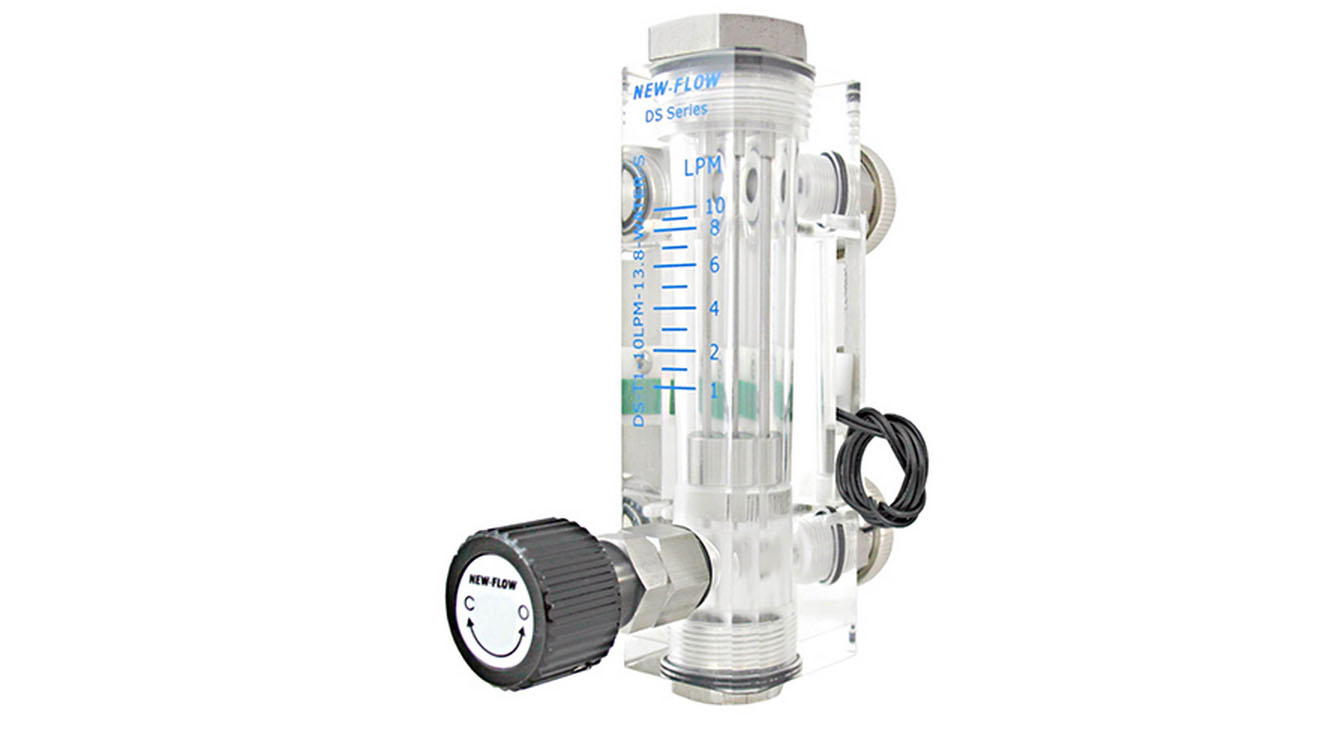

DS Series — Flow Meter

Name: DS Series — Flow Meter
Brand: Sightflow

Acrylic flow meter · Water and air

Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.

Find your meter

DS Series

Technical data

Application and operating limits

Service: Water and air
Mounting: Vertical
Accuracy: ±5% of full scale
Pressure limit: 150 psig (10 bar) at 38°C
Temperature: −24 to +54°C
Weight: 0.55–0.6 kg

Materials and options

Body: Acrylic plastic
O-ring: Viton
Float: Magnet covered with nickel
Connections: SS316; ¼ in or ⅜ in NPT or PT female
Needle valve: With or without
Alarm: One or two setting points
Switch type: Form A normally open bistable reed switch
Switch rating: AC 125 V / 0.5 A; DC 100 V / 10 W; maximum DC 250 V <40 mA
Setting range: 10% to 80% of full scale

Dimensions and construction

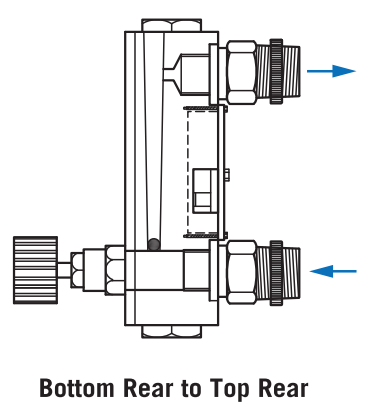

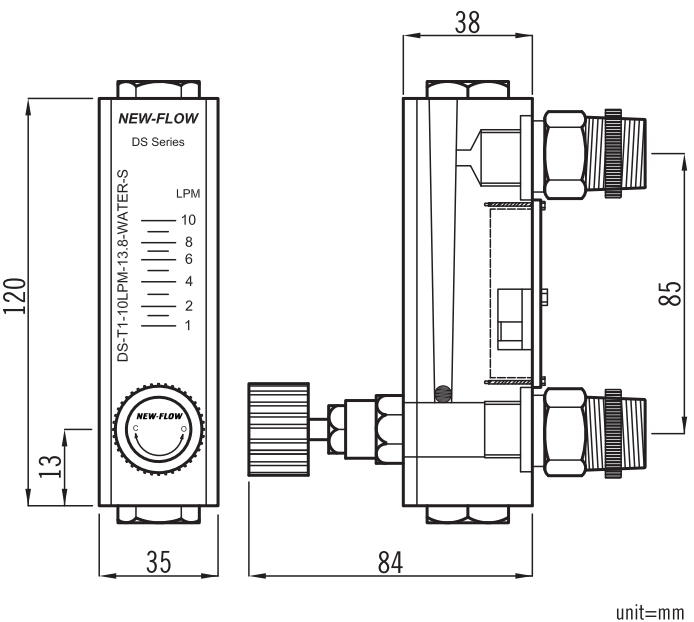

DS dimensions (mm)
Height	Front width	Body depth	Depth with valve	Connection centres	Lower offset
120	35	38	84	85	13
