FAC200 Series — Flow Meter

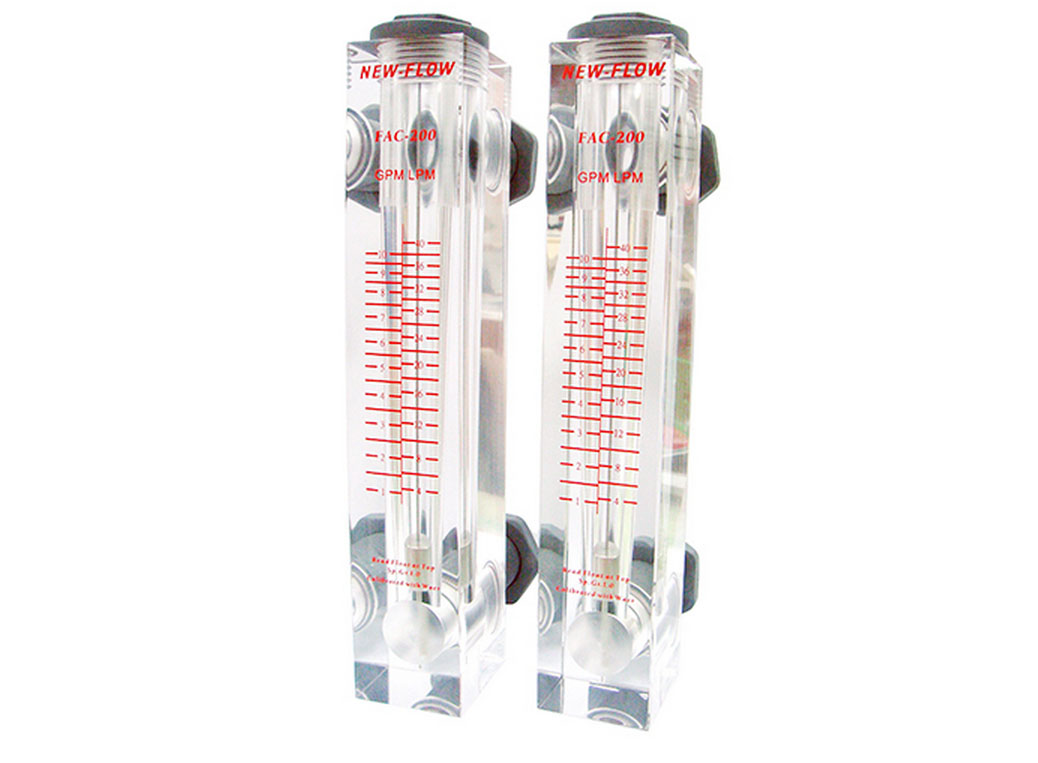

Acrylic flow meter · Water and liquid
Compare the flow ranges and select FAC-201, FAC-202 or FAC-203. Each model has fixed dual scales and an NPT male connection. Original drawings and the complete source PDF are included below.
Find your meter
FAC200 Series
Technical data
Application and operating limits
- Service
- Water or liquid
- Mounting
- Vertical
- Accuracy
- ±3% of full scale
- Pressure limit
- 120 psig (8.4 bar) at 38°C
- Temperature
- 0–45°C
- Weight
- 0.31 kg
Materials and options
- Body
- Acrylic
- Plastic wetted parts
- Polypropylene
- O-ring
- EPDM
- Float guide
- 304 stainless steel
- Connection material
- Polypropylene
- Connections
- ⅜ in, ½ in or ¾ in NPT male; model-dependent

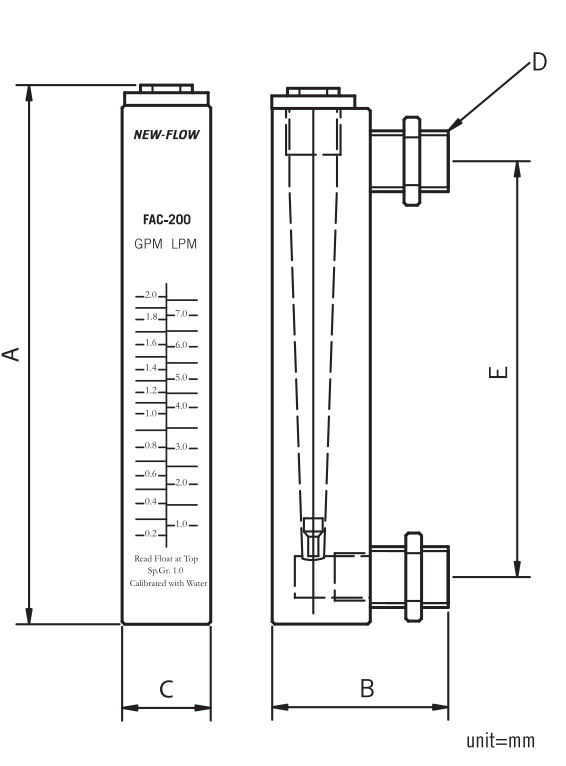

Dimensions and construction
| Model | A (in / mm) | B (in / mm) | C (in / mm) | D (NPT) | E (in / mm) |
|---|---|---|---|---|---|
| FAC-201 | 8.4 / 213.2 | 2.75 / 70 | 1.38 / 35 | ⅜ in | 6.5 / 165 |
| FAC-202 | 8.4 / 213.2 | 2.75 / 70 | 1.38 / 35 | ½ in | 6.5 / 165 |
| FAC-203 | 9.0 / 229.2 | 3.75 / 95.2 | 1.58 / 40 | ¾ in | 6.5 / 165 |
Select your FAC200 Series meter
Compare the dual flow scales below, then select your model.
Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
