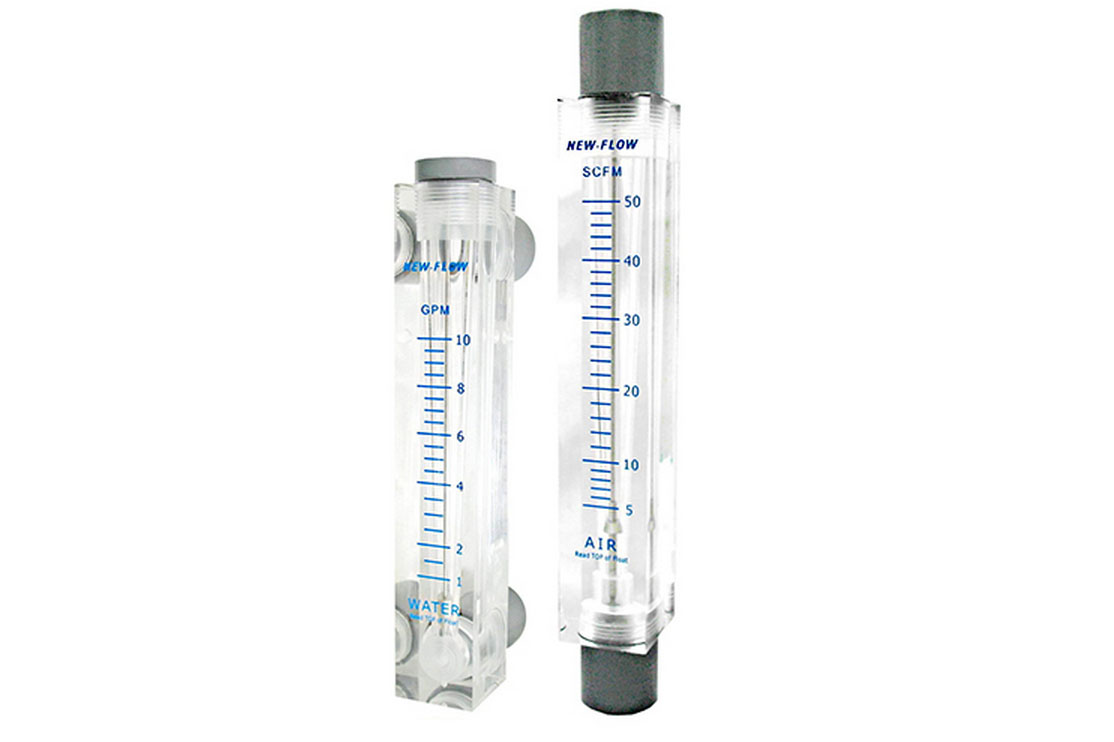

FAC300 Series — Flow Meter

Name: FAC300 Series — Flow Meter
Brand: Sightflow

Acrylic flow meter · Water and air

Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.

Find your meter

FAC300 Series Source approval marks

Technical data

Application and operating limits

Service: Water, liquid or air
Pressure limit: 120 psig (8.4 bar) at 38°C
Temperature: 0–45°C
Accuracy: ±3% of full scale
Mounting: Vertical
Weight: 0.7 kg

Materials and options

Body: Acrylic
Plastic wetted parts / connections: Polypropylene
O-ring: EPDM
Float / guide: SS316
Connection: 1 in NPT female

Dimensions and construction

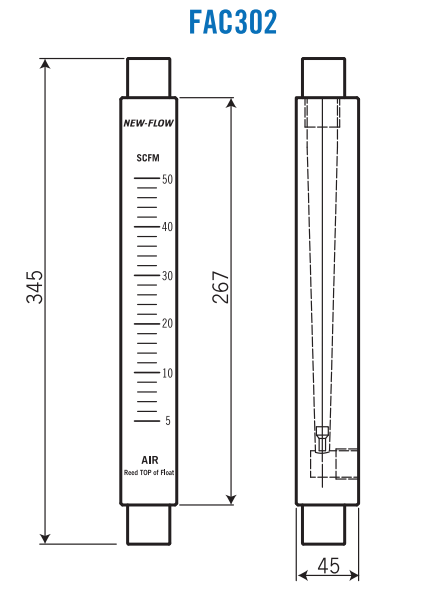

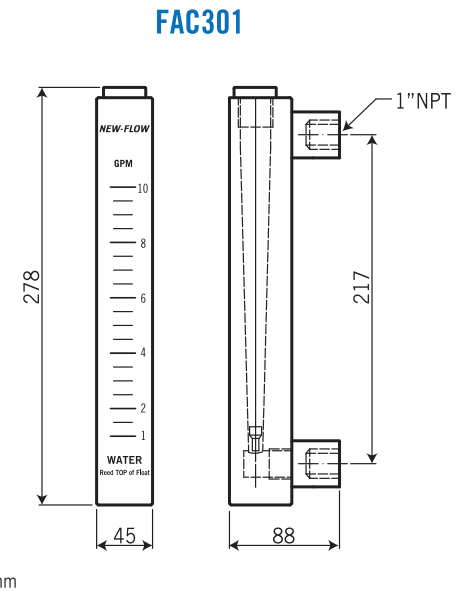

FAC300 dimensions (mm)
Model	Height	Scale body height	Width	Depth	Connection centres
FAC301	278	—	45	88	217
FAC302	345	267	45	—	—

Select your FAC300 Series meter

Choose your fluid, units and maximum range to compare the available scales.

1–3. Your flow requirements

1. Fluid2. Flow units3. Max flow range

4. Choose a matching meter

Choose a fluid to begin.

6. Your selection

Your selected meter will appear here.

Selected referenceComplete your selection above

Request a quote

Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
