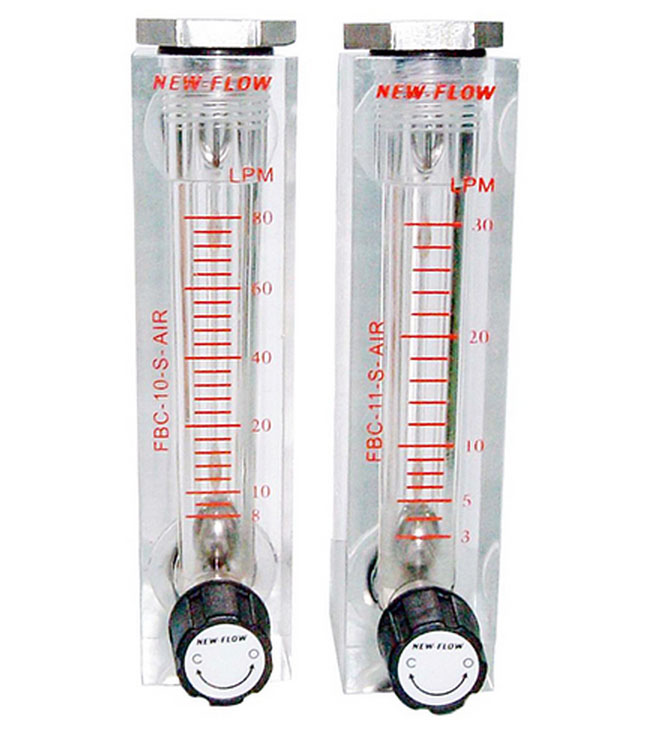

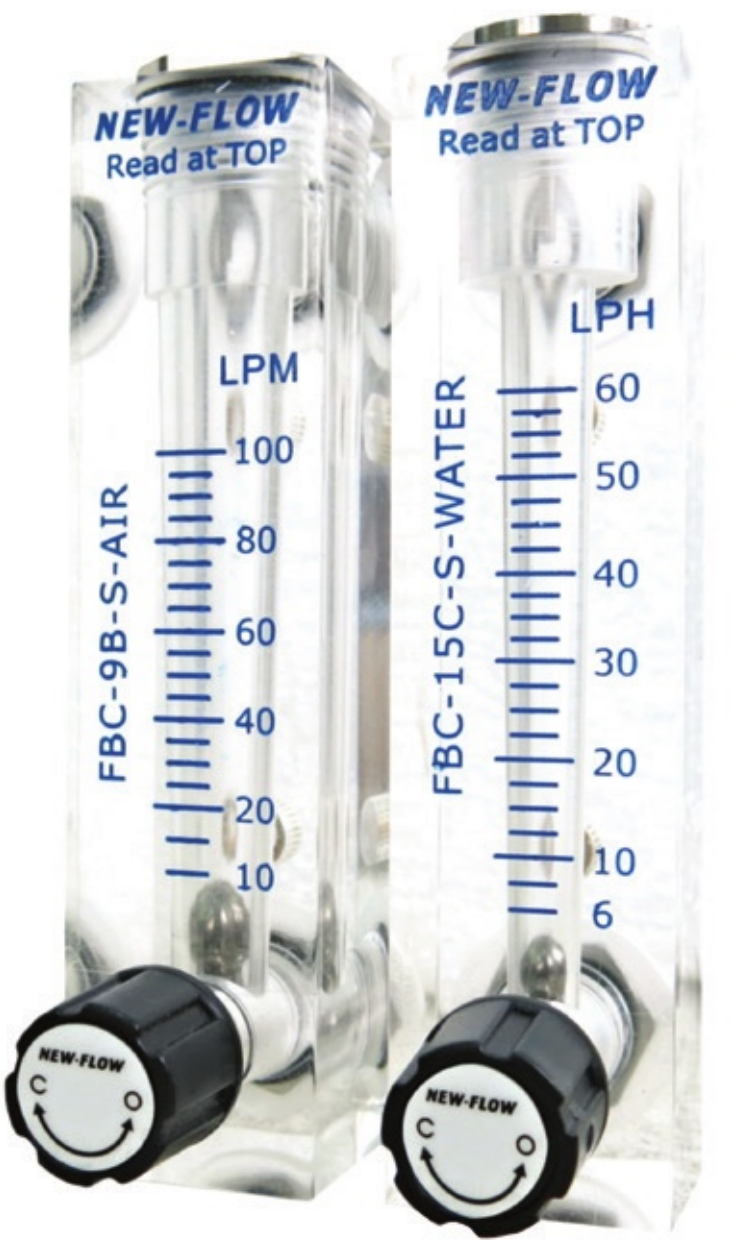

FBC Series — Flow Meter

Acrylic flow meter · Water and gas scales

Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.

Find your meter

FBC Series Original source approval marks

Technical data

Application and operating limits

Service: Gas and liquid
Mounting: Vertical
Accuracy: ±3% of full scale
Pressure limit: 150 psig (10 bar) at 38°C
Temperature: −24 to +54°C
Weight: 0.12 kg

Materials and connections

Body: Acrylic plastic
O-ring: NBR standard; Viton on request
Float: SS316, glass or POM plastic; fixed by scale and option
Connection material: SS316
Female connection: ⅛ in NPT
Needle valve: With or without
Valve material: SS316

Dimensions and construction

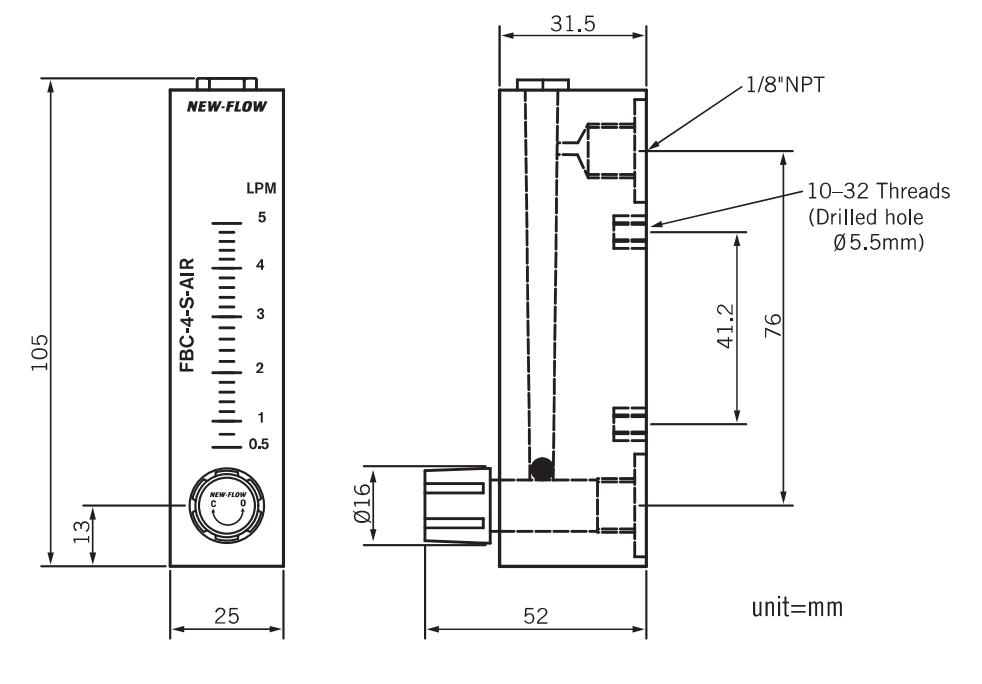

FBC dimensions (mm)
Height	Front width	Body depth	Depth with valve	Connections	Mounting centres
105	25	31.5	52	⅛ in NPT	41.2

Connection centres 76 mm; lower axis 13 mm; valve Ø16 mm; mounting 10–32 threads, drilled Ø5.5 mm.

FBC Water ranges
Item	Flow range	Unit	Float	With needle valve	Without needle valve
1	5–50	cc/min	SS316	FBC-V-S-W-50-C	FBC-N-S-W-50-C
2	10–100	cc/min	SS316	FBC-V-S-W-100-C	FBC-N-S-W-100-C
3	25–250	cc/min	SS316	FBC-V-S-W-250-C	FBC-N-S-W-250-C
4	100–1000	cc/min	SS316	FBC-V-S-W-1000-C	FBC-N-S-W-1000-C
5	0.1–1	LPH	SS316 with valve; POM without	FBC-V-S-W-1-LH	FBC-N-P-W-1-LH
6	0.5–5	LPH	SS316	FBC-V-S-W-5-LH	FBC-N-S-W-5-LH
7	1.5–15	LPH	SS316	FBC-V-S-W-15-LH	FBC-N-S-W-15-LH
8	3–30	LPH	SS316	FBC-V-S-W-30-LH	FBC-N-S-W-30-LH
9	6–60	LPH	SS316	FBC-V-S-W-60-LH	FBC-N-S-W-60-LH
10	10–100	LPH	SS316	FBC-V-S-W-100-LH	FBC-N-S-W-100-LH
11	1.5–15	GPH (US)	SS316	FBC-V-S-W-15-GH	FBC-N-S-W-15-GH
12	2.5–25	GPH (US)	SS316	FBC-V-S-W-25-GH	FBC-N-S-W-25-GH

FBC Air ranges
Item	Flow range	Unit	Float	With needle valve	Without needle valve
1	60–300	cc/min (normal)	Glass	FBC-V-G-A-300-C	FBC-N-G-A-300-C
2	80–450	cc/min (normal)	POM plastic	FBC-V-P-A-450-C	FBC-N-P-A-450-C
3	100–1000	cc/min (normal)	Glass	FBC-V-G-A-1000-C	FBC-N-G-A-1000-C
4	0.1–1	LPM (normal)	Glass	FBC-V-G-A-1-LM	FBC-N-G-A-1LM
5	0.2–2	LPM (normal)	SS316	FBC-V-S-A-2-LM	FBC-N-S-A-2-LM
6	0.5–5	LPM (normal)	SS316	FBC-V-S-A-5-LM	FBC-N-S-A-5-LM
7	1–10	LPM (normal)	SS316	FBC-V-S-A-10-LM	FBC-N-S-A-10-LM
8	2–20	LPM (normal)	POM plastic	FBC-V-P-A-20-LM	FBC-N-P-A-20-LM
9	2.5–25	LPM (normal)	SS316	FBC-V-S-A-25-LM	FBC-N-S-A-25-LM
10	4–40	LPM (normal)	SS316	FBC-V-S-A-40-LM	FBC-N-S-A-40-LM
11	5–50	LPM (normal)	SS316	FBC-V-S-A-50-LM	FBC-N-S-A-50-LM
12	8–80	LPM (normal)	SS316	FBC-V-S-A-80-LM	FBC-N-S-A-80-LM
13	10–100	LPM (normal)	SS316	FBC-V-S-A-100-LM	FBC-N-S-A-100-LM
14	10–100	LPH (normal)	SS316	FBC-V-S-A-100-LH	FBC-N-S-A-100-LH
15	20–200	LPH (normal)	POM plastic	FBC-V-P-A-200-LH	FBC-N-P-A-200-LH
16	30–300	LPH (normal)	SS316	FBC-V-S-A-300-LH	FBC-N-S-A-300-LH
17	50–500	LPH (normal)	SS316	FBC-V-S-A-500-LH	FBC-N-S-A-500-LH
18	60–600	LPH (normal)	SS316	FBC-V-S-A-600-LH	FBC-N-S-A-600-LH
19	80–800	LPH (normal)	SS316	FBC-V-S-A-800-LH	FBC-N-S-A-800-LH
20	0.15–1.5	Nm³/h	SS316	FBC-V-S-A-1.5-LM	FBC-N-S-A-1.5-MH
21	0.3–3	Nm³/h	SS316	FBC-V-S-A-3-MH	FBC-N-S-A-3-MH
22	0.6–6	Nm³/h	SS316	FBC-V-S-A-6-MH	FBC-N-S-A-6-MH
23	0.3–3	SCFH	SS316	FBC-V-S-A-3-SH	FBC-N-S-A-3-SH
24	0.6–6	SCFH	POM plastic	FBC-V-P-A-6-SH	FBC-N-P-A-6-SH
25	1–10	SCFH	POM plastic	FBC-V-P-A-10-SH	FBC-N-P-A-10-SH
26	2–20	SCFH	SS316	FBC-V-S-A-20-SH	FBC-N-S-A-20-SH
27	5–50	SCFH	SS316	FBC-V-S-A-50-SH	FBC-N-S-A-50-SH
28	16–160	SCFH	SS316	FBC-V-S-A-160-SH	FBC-N-S-A-160-SH
29	20–200	SCFH	SS316	FBC-V-S-A-200-SH	FBC-N-S-A-200-SH

FBC Oxygen (O₂) ranges
Item	Flow range	Unit	Float	With needle valve	Without needle valve
1	0.02–0.2	LPM	POM plastic	FBC-V-P-A-0.2-LM	FBC-N-P-A-0.2-LM

FBC Ammonia (NH₃) ranges
Item	Flow range	Unit	Float	With needle valve	Without needle valve
2	20–150	SCFH	POM plastic	FBC-V-P-A-150-SH	FBC-N-P-A-150-SH

Select your FBC Series meter

Choose your fluid, units and maximum range to compare the available scales.

1–3. Your flow requirements

1. Fluid2. Flow units3. Max flow range

4. Choose a matching meter

Choose a fluid to begin.

6. Your selection

Your selected meter will appear here.

Selected referenceComplete your selection above

Request a quote

Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
