Model SFI

Flanged AS 2129 Or ANSI 150

These sight glasses are designed to ASME, AS & BS Standards

About Model SFI

Stainless steel or carbon steel flow indicators and sight glasses, with arrangements to suit the application and end-fitting requirements.

Flange options: AS 2129 Tables D, E, F or H; ANSI 150
Nominal bore: 15–350 mm
Body: Stainless steel or carbon steel.
Glass: Toughened soda-lime (standard); toughened borosilicate optional.
Gasketing: CF (standard) or PTFE; others on request.

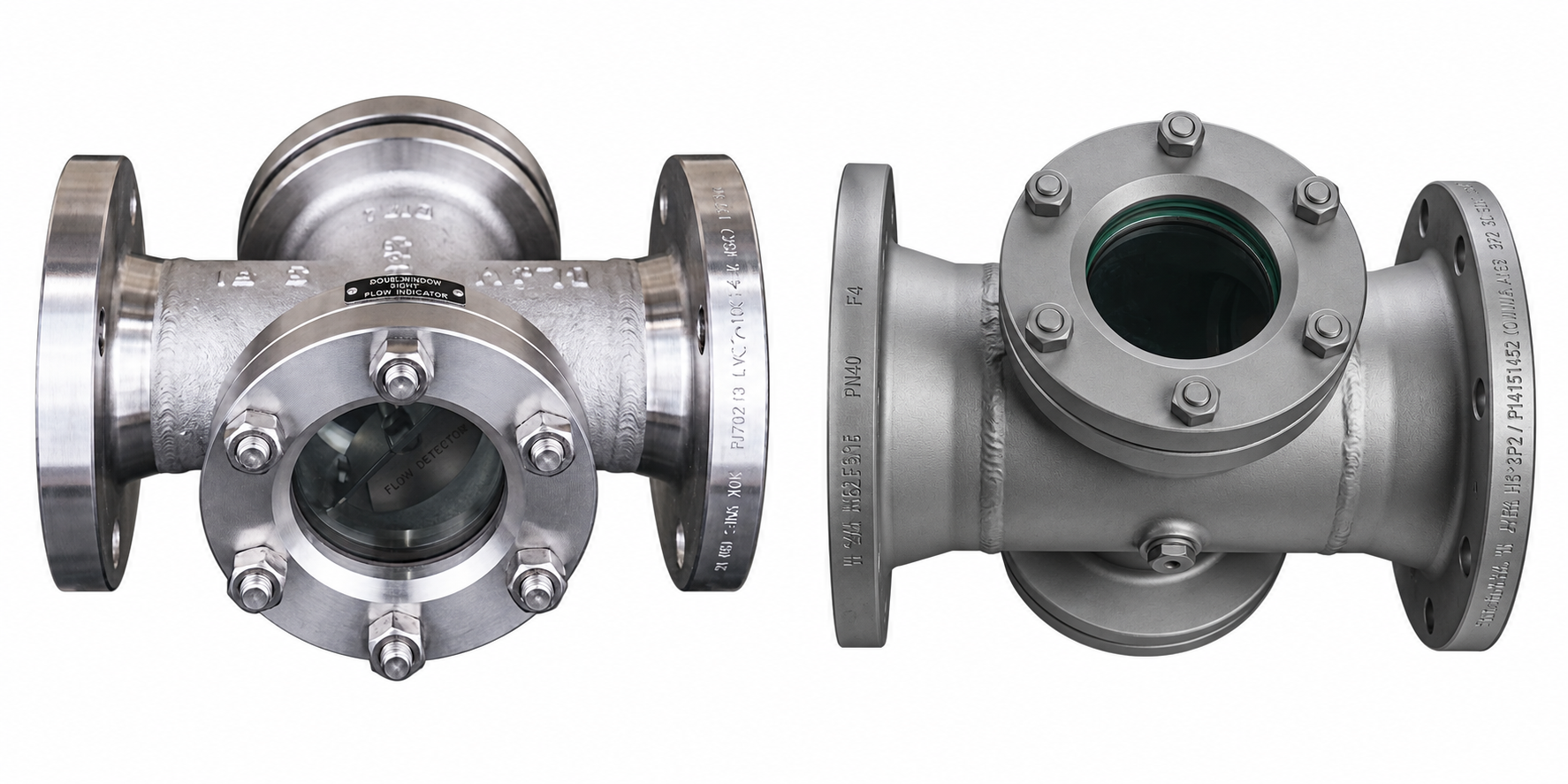

Stainless steel SFI on the left and carbon steel SFI on the right — Stainless steelCarbon steel

Construction and application options

Fabricated and semi-fabricated construction in either material; forged construction is also available in carbon steel. Options below are available for some sizes and require confirmation.

Units for vertical downward flow.
Drip-lip for intermittent flow.
Bi-directional flow.
Units suitable for pigging.

Fabrication and design are available to required standards. Describe any special arrangement in Application and special requirements.

Pressure and temperature limits are confirmed for the selected construction and application.

Flanged dimensions

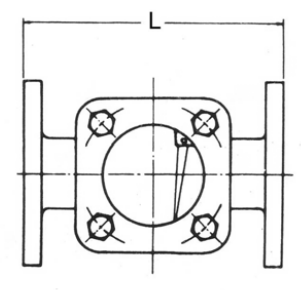

Flanged flow indicator drawing showing overall length L — Stainless steel

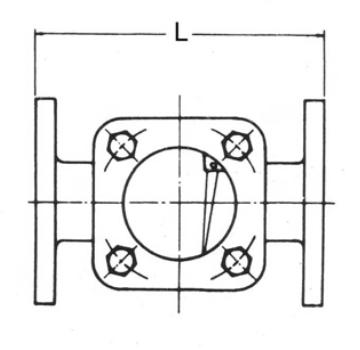

Carbon steel flanged flow indicator drawing showing overall length L — Carbon steel

Flanged overall length and viewing diameter — mm
Nominal bore	Stainless steel L	Stainless steel view Ø	Carbon steel L	Carbon steel view Ø
15	171	38	171	38
20	171	38	171	38
25	171	38	171	38
32	178	64	185	50
40	178	64	185	50
50	178	64	235	64
65	305	89	305	89
80	305	89	305	89
100	305	100	305	100
125	381	100	381	100
150	381	100	381	100
200	483	150	483	150
250	483	150	483	150
300	508	150	508	150
350	533	150	533	150

Carbon steel dimensions cover AS 2129 E or ANSI 150. The stainless steel reference covers AS 2129 H or ANSI 150; other material/table combinations require dimension confirmation.
