TB Series-C / HT Series-B Flow Sight Glass Gauge

Double-window colour-ball indication — TB-C and high-pressure HT-B

Observe compatible gas and liquid flow through two windows using PTFE colour balls. TB-C uses tempered glass; HT-B uses borosilicate glass for the high-pressure model.

IECEx / ATEXOptional certification: II 2G, Ex h IIC Tx Gb

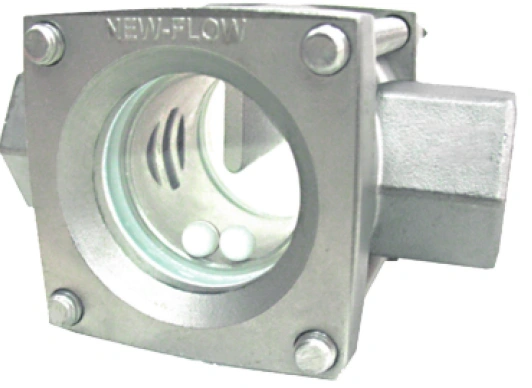

TB-C Type

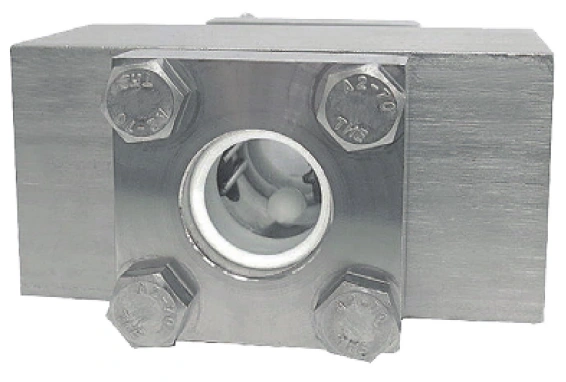

HT-B Type

Service and indication

Compatible gas and liquid service for water treatment and industrial flow systems
Double-window observation with PTFE colour-ball indication
Horizontal flow in either direction or vertically upward

Technical data

Operating limits and connections

Teflon gasket: −40 to 150°C
Sigma 533 gasket: −40 to 180°C
TB-C maximum pressure: 16 kg/cm² at 25°C water
HT-B maximum pressure: 100 kg/cm² at 25°C water, without Ex certification
Ex application pressure: 0–16 kg/cm² gauge
TB-C connection sizes: ½ inch (15A), ¾ inch (20A)
HT-B connection sizes: ½ inch (15A), ¾ inch (20A), 1 inch (25A)
Female threads: NPT, PF (BSPP) or PT

Materials

Body / wetted parts: SS316 (CF8M)
Colour balls: PTFE
TB-C window: Tempered glass
HT-B window: Borosilicate glass
Gaskets: Teflon or Sigma 533

Dimensions and mounting

Dimensions in millimetres.

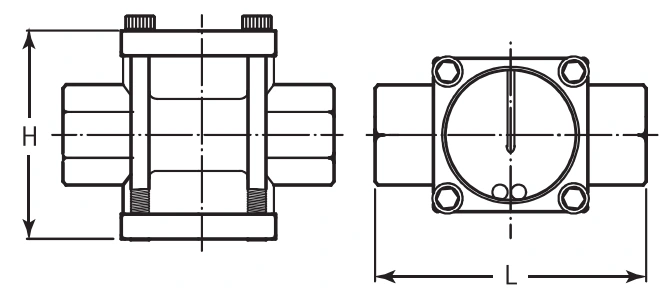

TB-C front and side drawings with L and H dimensions — **TB-C**

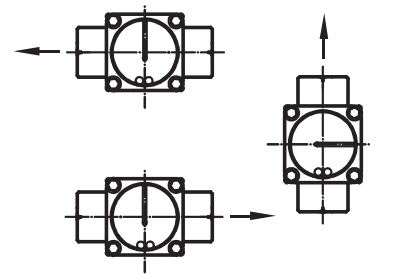

Leftward, rightward and vertically upward flow mounting diagrams — **Permitted mounting positions**Horizontal flow in either direction or vertically upward.

TB-C Type
Dimension	½ inch (15A)	¾ inch (20A)
L	114	114
H	72	72

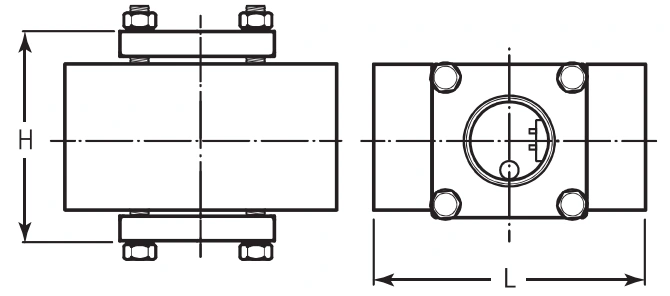

HT-B front and side drawings with L and H dimensions — HT-B

HT-B Type
Dimension	½ inch (15A)	¾ inch (20A)	1 inch (25A)
L	83	83	83
H	100	100	100

Explosion-proof certification and temperature classes

Optional IECEx and ATEX II 2G certification, Ex h IIC Tx Gb. The class is selected for the process and ambient temperature.

Temperature classes for the offered 15A–25A sizes
Code	Process and ambient conditions
T2	175°C < Tprocess ≤ 270°C; Tamb ≤ 75°C
T3	110°C < Tprocess ≤ 175°C; Tamb ≤ 75°C
T4	75°C < Tprocess ≤ 110°C; Tamb ≤ 75°C
T5	60°C < Tprocess; Tamb ≤ 75°C
T6	Tprocess and Tamb ≤ 60°C

Ex applications are limited to 0–16 kg/cm² gauge, including HT-B.

These are certification-class conditions, not higher gasket ratings. Teflon is limited to 150°C and Sigma 533 to 180°C. Confirm any class/application combination against these material limits.

The source gives T5 a lower process-temperature bound only. It also lists conditions for sizes 80A and above; those sizes are not offered in this ordering table.
