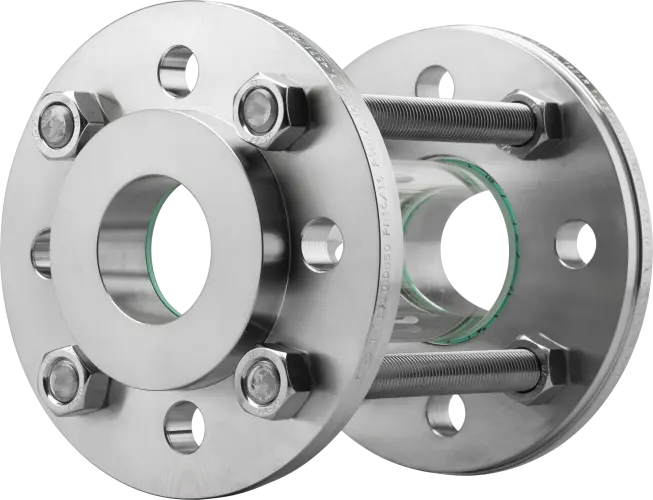

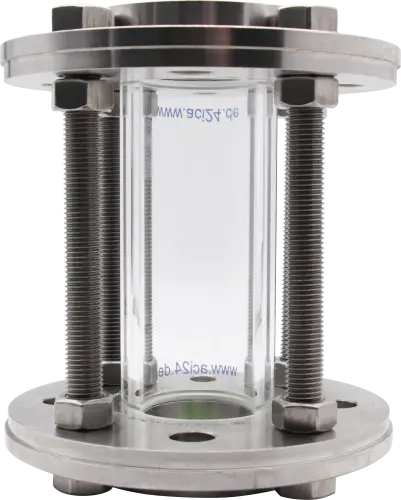

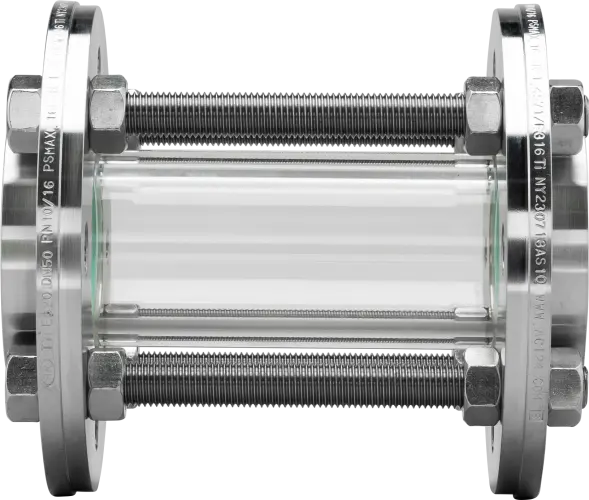

Type 620A Full View Flow Indicator
Tubular sight glass · ASME B16.5 Class 150 · Full view
About Type 620A
Monitor liquid levels and flows in pipelines with a clear 360° view. Type 620A allows visual checks of individual devices and complete systems, with flanges at both ends suitable for ASME B16.5 Class 150.
- Working pressure
- 5–16 barg, depending on nominal size
- Temperature
- Up to 300°C, depending on gasket and impact protection
- Nominal sizes
- NPS ½–8 inches
- Standard length
- 200 mm
Construction and options
- Flanges
- Stainless steel 1.4571; special materials on request
- Glass cylinder
- Borosilicate glass 3.3
- Threaded rods / nuts
- A4-70
- Gaskets
- PTFE, FKM, NBR, C4400, silicone, EPDM or graphite; special materials on request

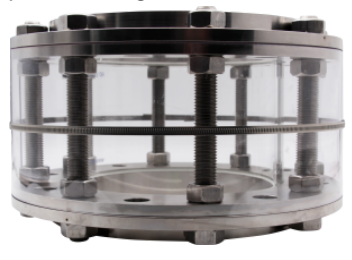

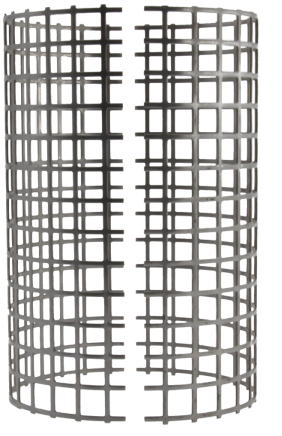

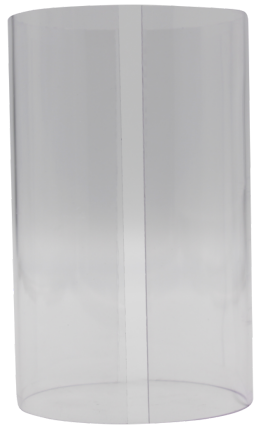

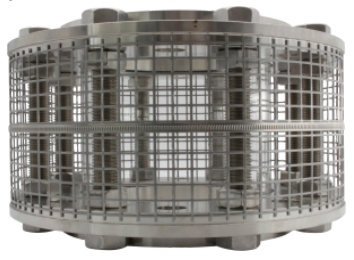

Optional PETg or perforated stainless steel impact protection, additional run-in phase for special piping, special total lengths and additional options are available on request.

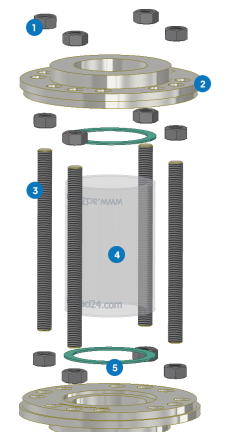

- Nuts
- Flange
- Threaded rod
- Borosilicate glass cylinder
- Gasket
Installation
Use seals that fit the sealing surfaces exactly. Screw material should match or exceed the quality of the sight glass body, and screws must match the flange hole pattern. Lubricate threads and screw heads where possible. Install without tension; pipe forces, vibration and pressure shocks must not act on the fitting.

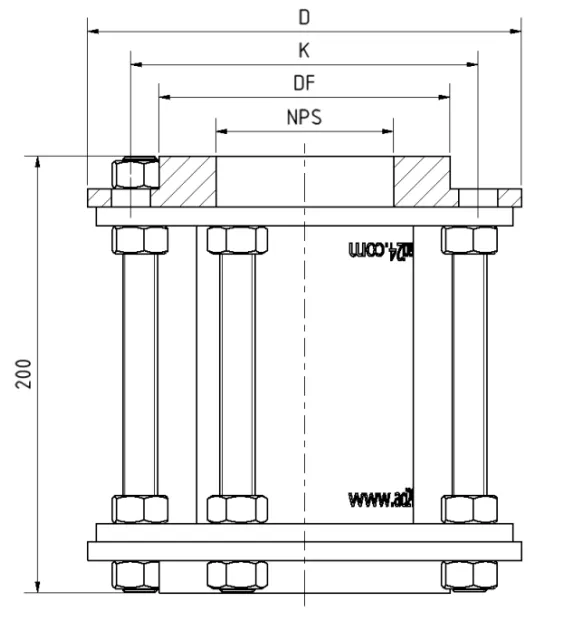

Engineering dimensions
| Nominal size | LK (mm) | DF (mm) | D (mm) | PS (barg) |
|---|---|---|---|---|
| NPS ½ inch | 60 | 35 | 95 | 16 |
| NPS ¾ inch | 70 | 43 | 105 | 16 |
| NPS 1 inch | 79 | 51 | 115 | 16 |
| NPS 1½ inches | 98 | 73 | 150 | 16 |
| NPS 2 inches | 121 | 92 | 165 | 16 |
| NPS 3 inches | 152 | 127 | 200 | 10 |
| NPS 4 inches | 190 | 157 | 230 | 10 |
| NPS 6 inches | 241 | 216 | 285 | 7 |
| NPS 8 inches | 298 | 270 | 345 | 5 |
Operating limits
| Gasket | Maximum gasket temperature |
|---|---|
| PTFE | 200°C |
| FKM | 200°C |
| NBR | 80°C |
| C4400 | 175°C |
| Silicone | 180°C |
| EPDM | 130°C |
| Graphite | Above 300°C; complete fitting limited to 300°C |
Borosilicate glass 3.3 supports the operating range up to 300°C. Pressure limits depend on nominal size: 16 barg for NPS ½–2, 10 barg for NPS 3–4, 7 barg for NPS 6 and 5 barg for NPS 8. The lowest applicable glass, gasket or cover temperature limit governs the selection. Operation above 300°C and special materials require confirmation.
