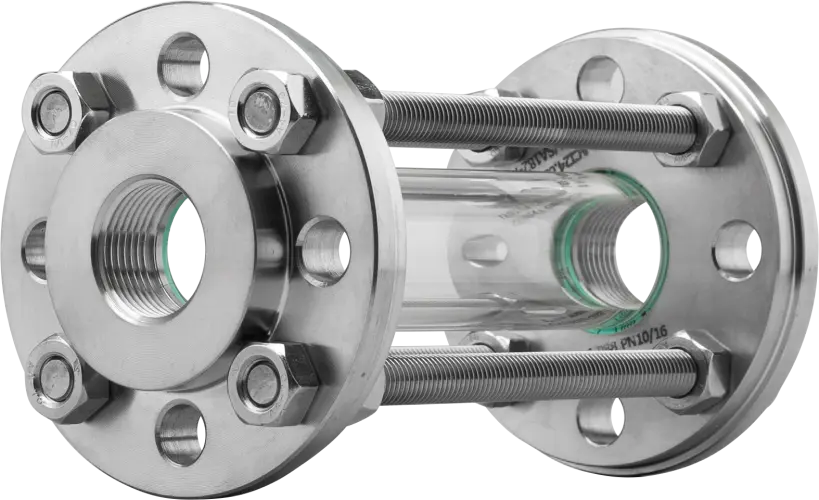

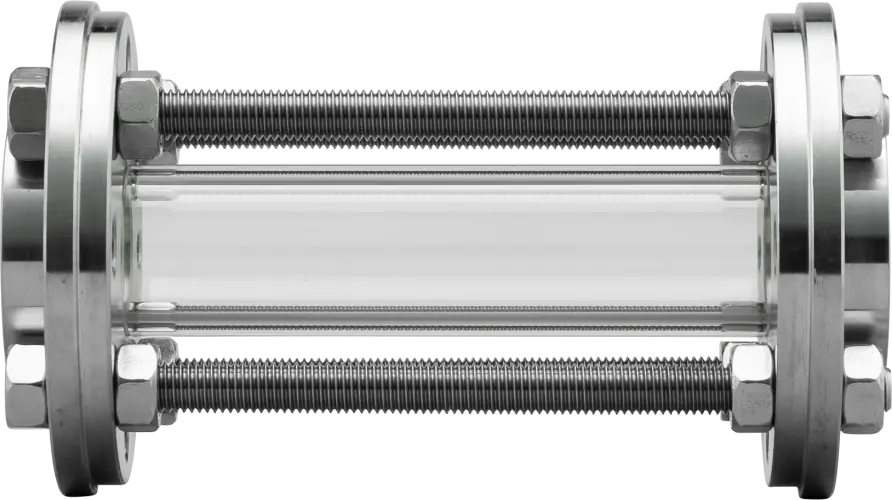

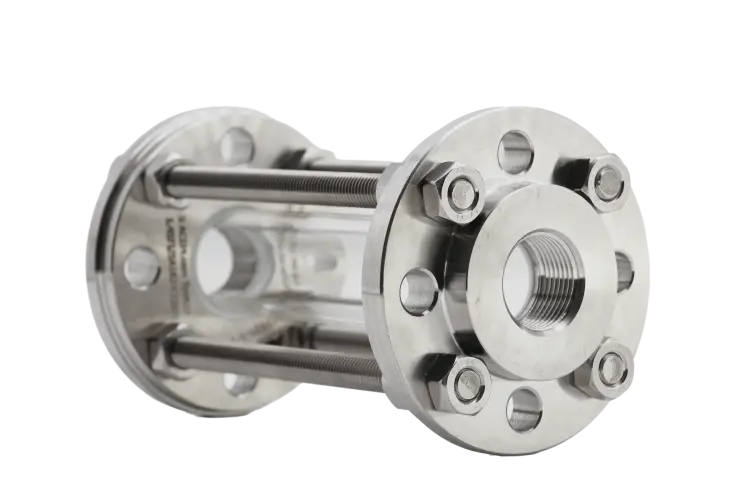

Type 622 Full View Flow Indicator
Tubular sight glass · PN 16 · BSP female threads
About Type 622
Monitor liquid levels and flows in pipelines with a clear 360° view. Type 622 allows visual checks of individual devices and complete systems, with internal threads at both ends according to DIN EN ISO 228-1.
- Working pressure
- Up to 16 barg
- Temperature
- Up to 300°C, depending on gasket and impact protection
- Thread sizes
- G ⅜, ½, ¾, 1, 1½ and 2 inches
- Standard length
- 200 mm
Construction and options
- Flanges
- Stainless steel 1.4571; special materials on request
- Glass cylinder
- Borosilicate glass 3.3
- Threaded rods / nuts
- A4-70
- Gaskets
- PTFE, FKM, NBR, C4400, silicone, EPDM or graphite; special materials on request

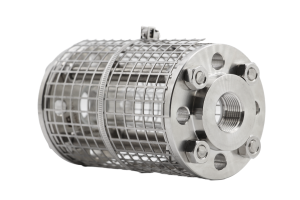

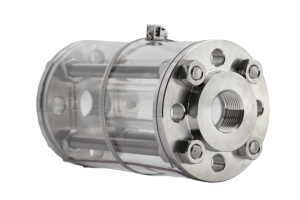

Optional impact protection, special total lengths and additional options are available on request.

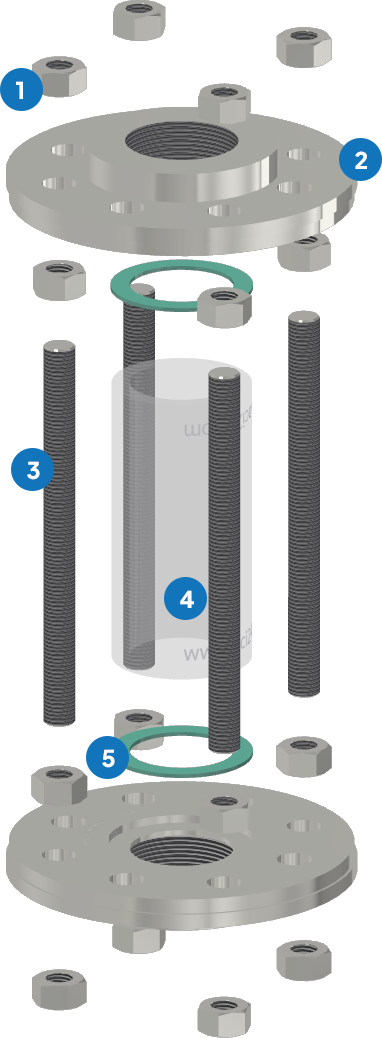

- Nuts
- Flange
- Threaded rod
- Borosilicate glass cylinder
- Gasket
Installation
The parallel connection thread is not self-sealing. Use suitable sealing material to achieve the specified working pressure. Install the tubular sight glass without pipe forces (tension, compression or torsion), vibration or pressure shocks acting on the fitting.

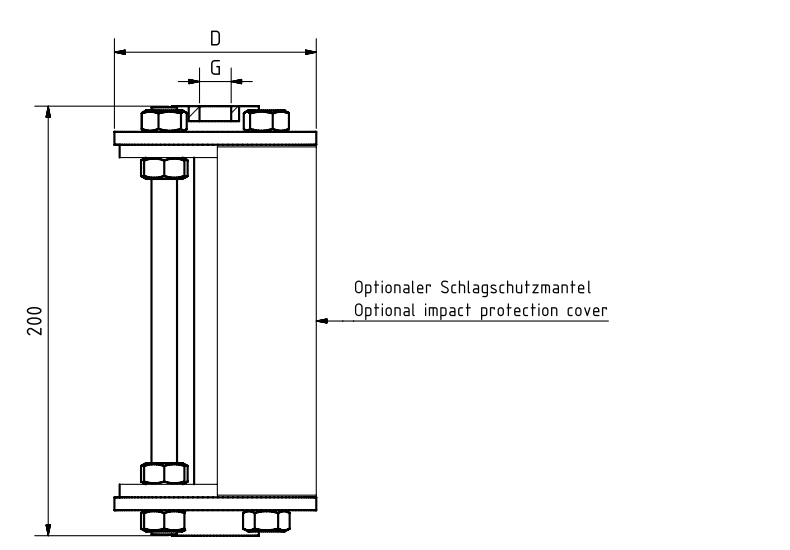

Engineering dimensions
| Thread | D (mm) | Weight (kg) | PS (barg) |
|---|---|---|---|
| G ⅜ inch | 95 | 2.3 | 16 |
| G ½ inch | 95 | 2.3 | 16 |
| G ¾ inch | 105 | 2.9 | 16 |
| G 1 inch | 115 | 3.5 | 16 |
| G 1½ inches | 150 | 6.2 | 16 |
| G 2 inches | 175 | 8.2 | 16 |
Other sizes, lengths and flange standards on request.
Operating limits
| Gasket | Maximum gasket temperature |
|---|---|
| PTFE (novaflon® 500) | 200°C |
| FKM | 200°C |
| NBR | 80°C |
| C4400 | 175°C |
| Silicone | 180°C |
| EPDM | 130°C |
| Graphite | Above 300°C; complete fitting limited to 300°C |
Borosilicate glass 3.3 supports the published operating range up to 300°C. All listed gaskets support pressures up to 16 barg. The lowest applicable glass, gasket or cover temperature limit governs the selection. Operation above 300°C and special materials require confirmation.
