bursting disksBursting Disk Holder for flat
Graphite Bursting Disks G2 series



Bursting disks of the G2 series (G2 & LPG2) are installed in holder HG2 between the flanges. The principal structure of such bursting disk equipment is always the same.

The bursting disk is positioned with the optional vacuum support in the holder inlet part, and then clamped between the flanges. The necessary axial pressure applied this way makes the unit tight. The system is completed with the seals between holder and flanges or the optional burst indicator on the discharge side.



Design examples and material variants

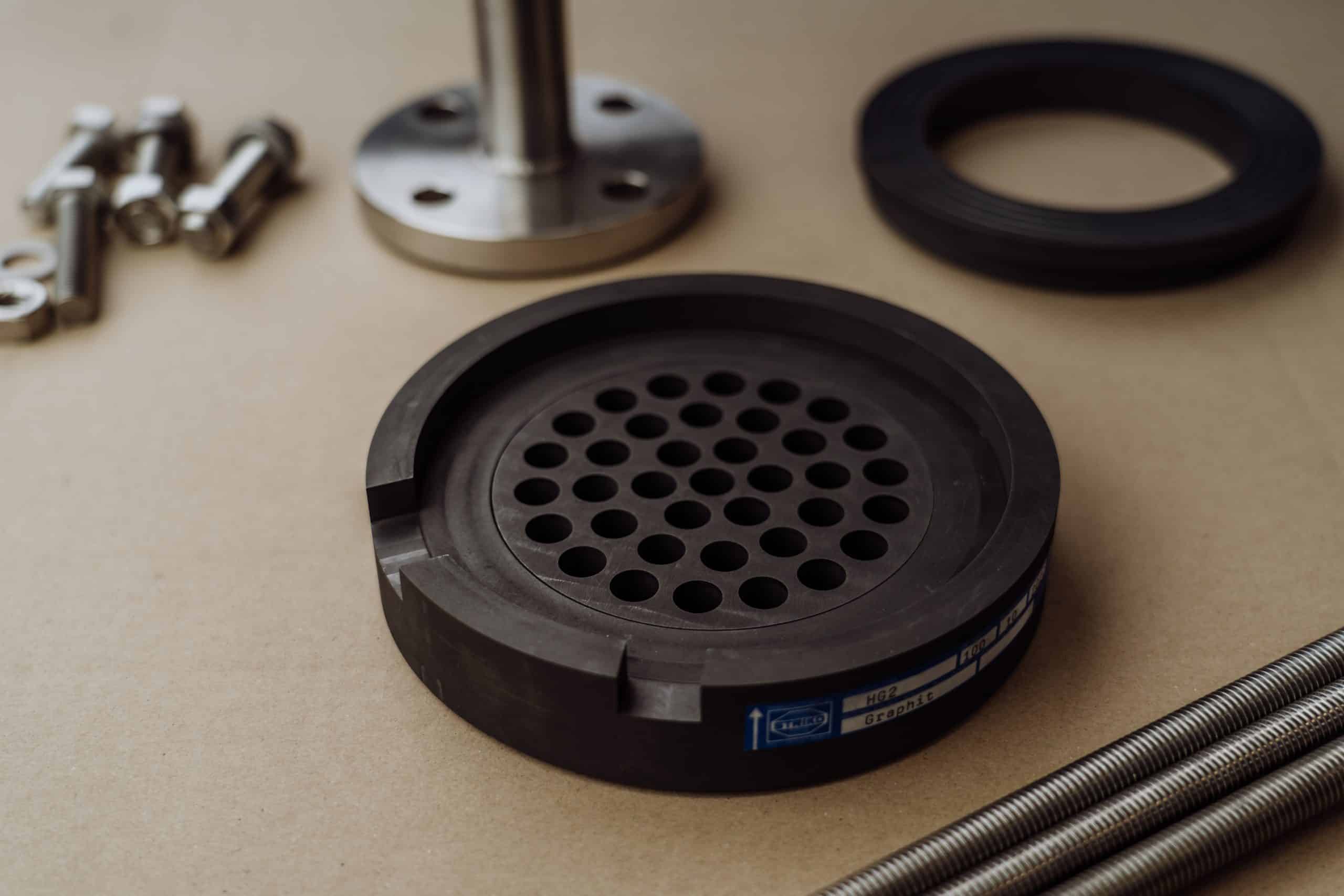

disk holder from graphite

Graphite

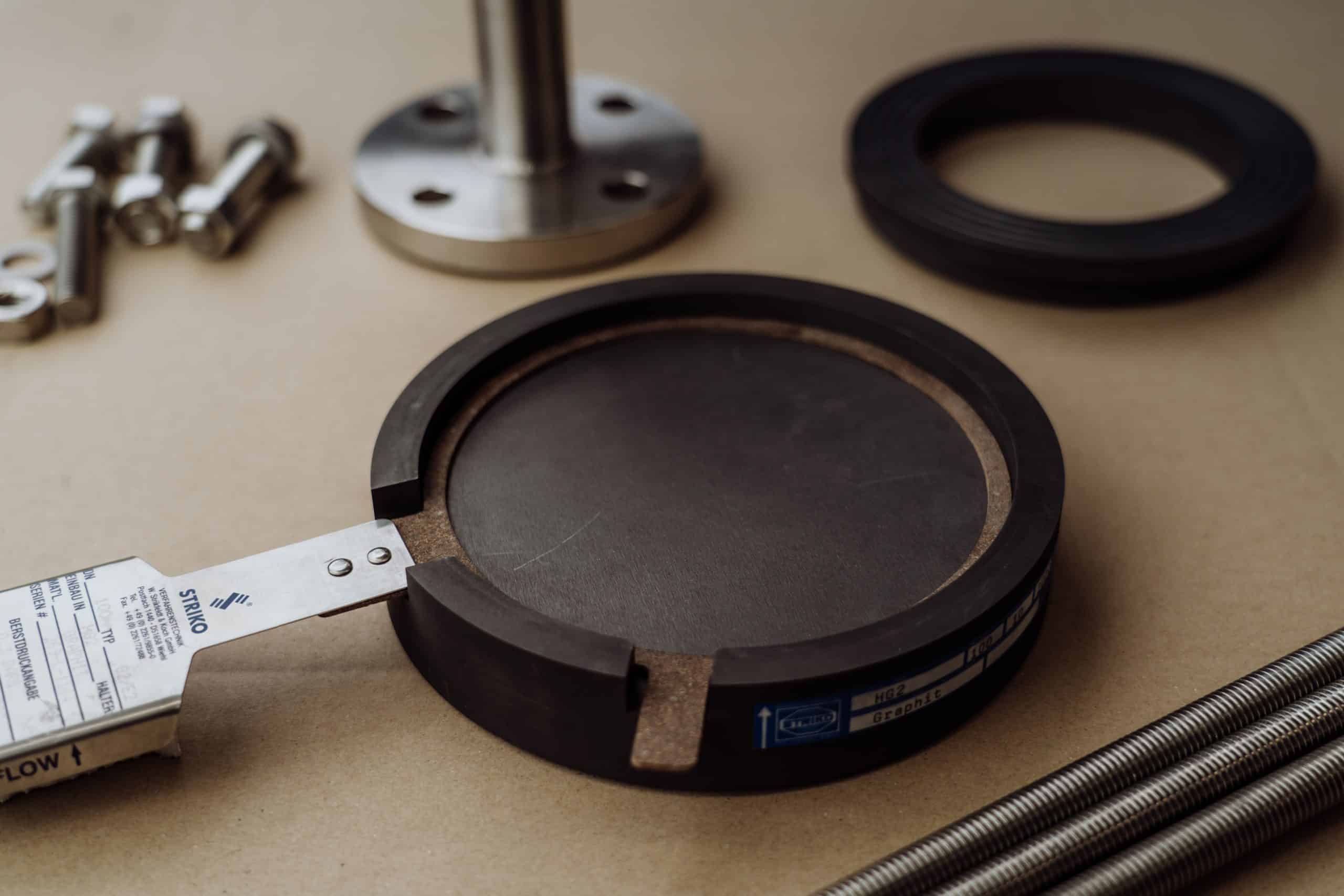

Design example Graphite Disk Holder
Disk Holder for flat Disks
Holder Bursting Disks G2 series

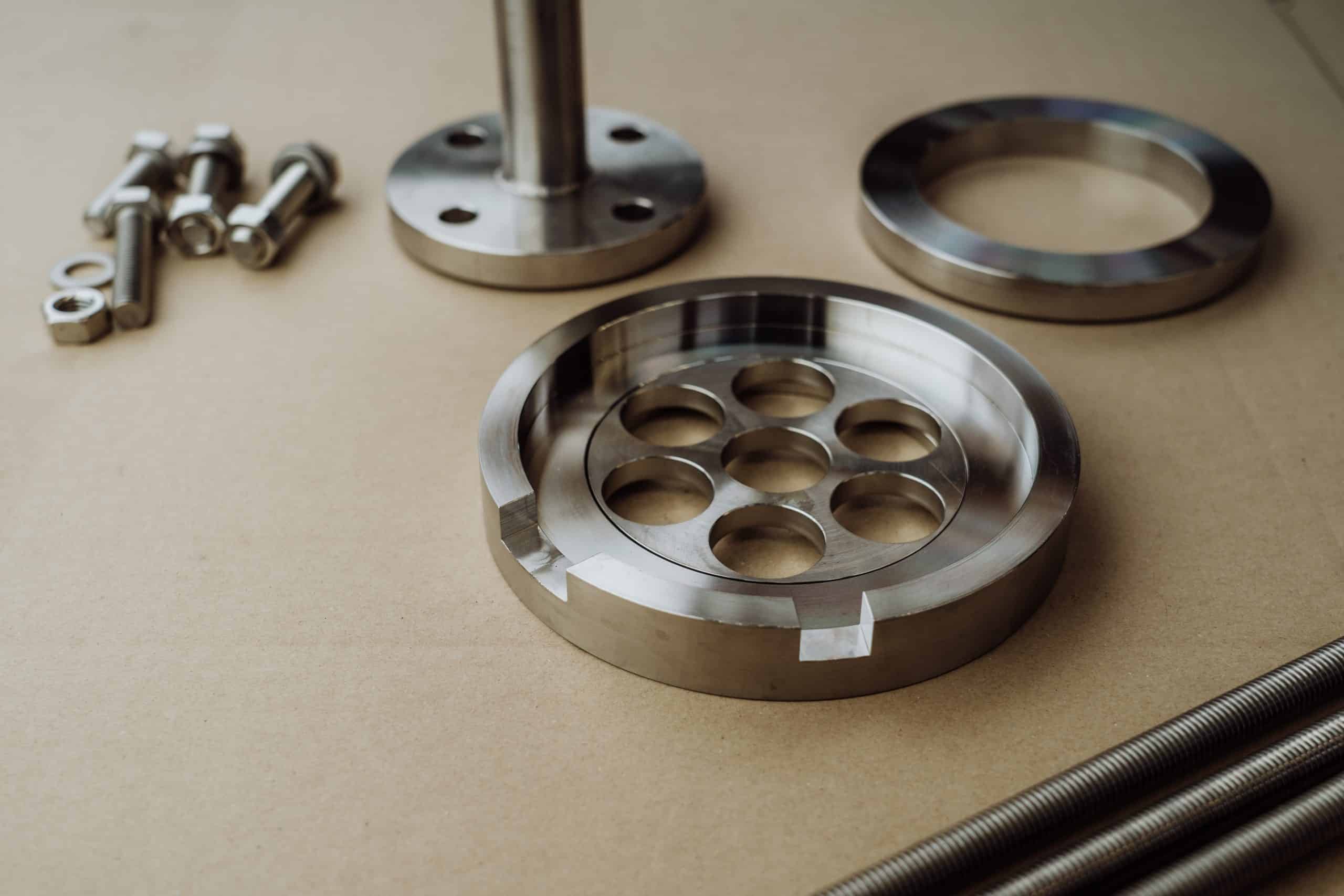

stainless steel or special materials

Stainless steel or special materials

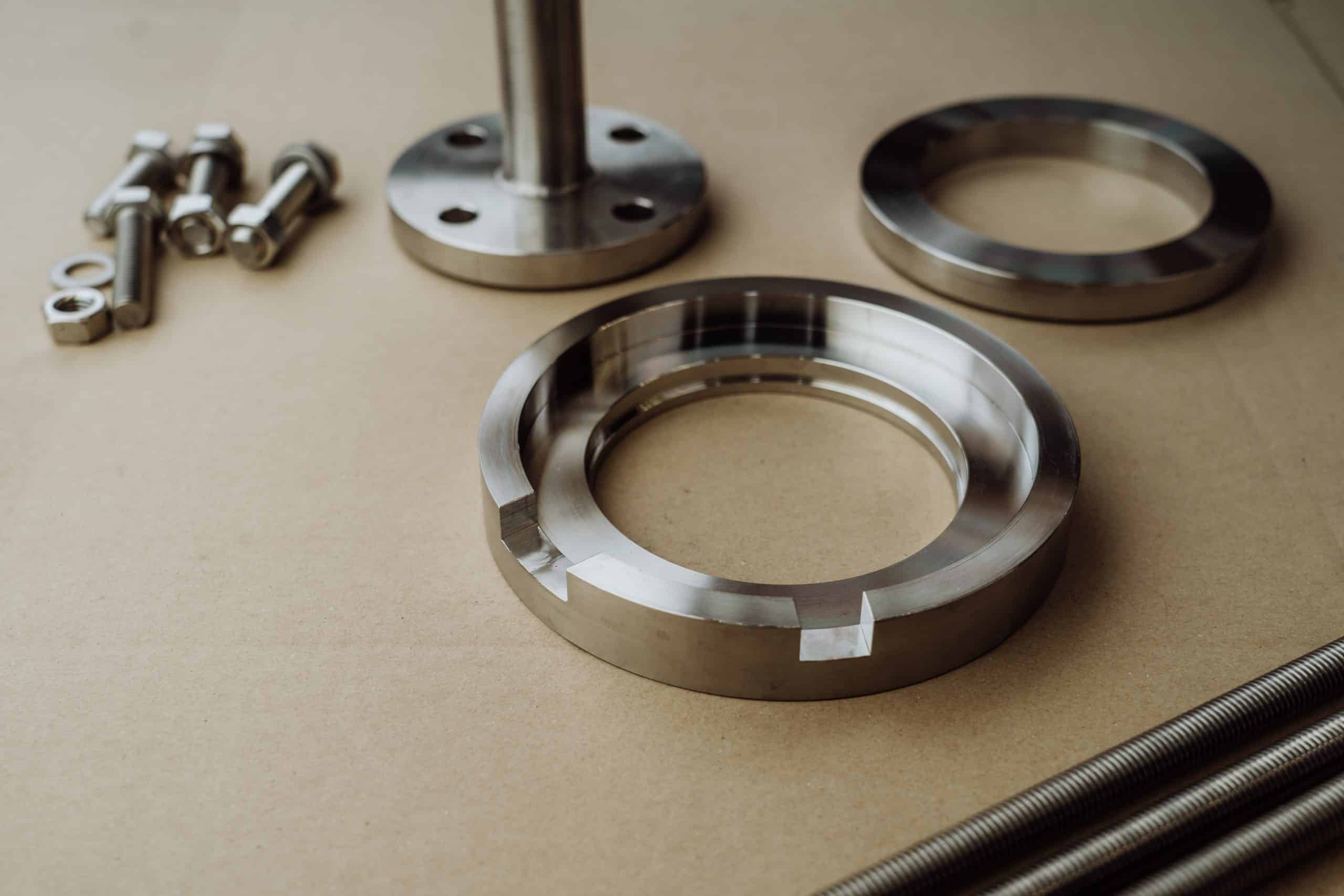

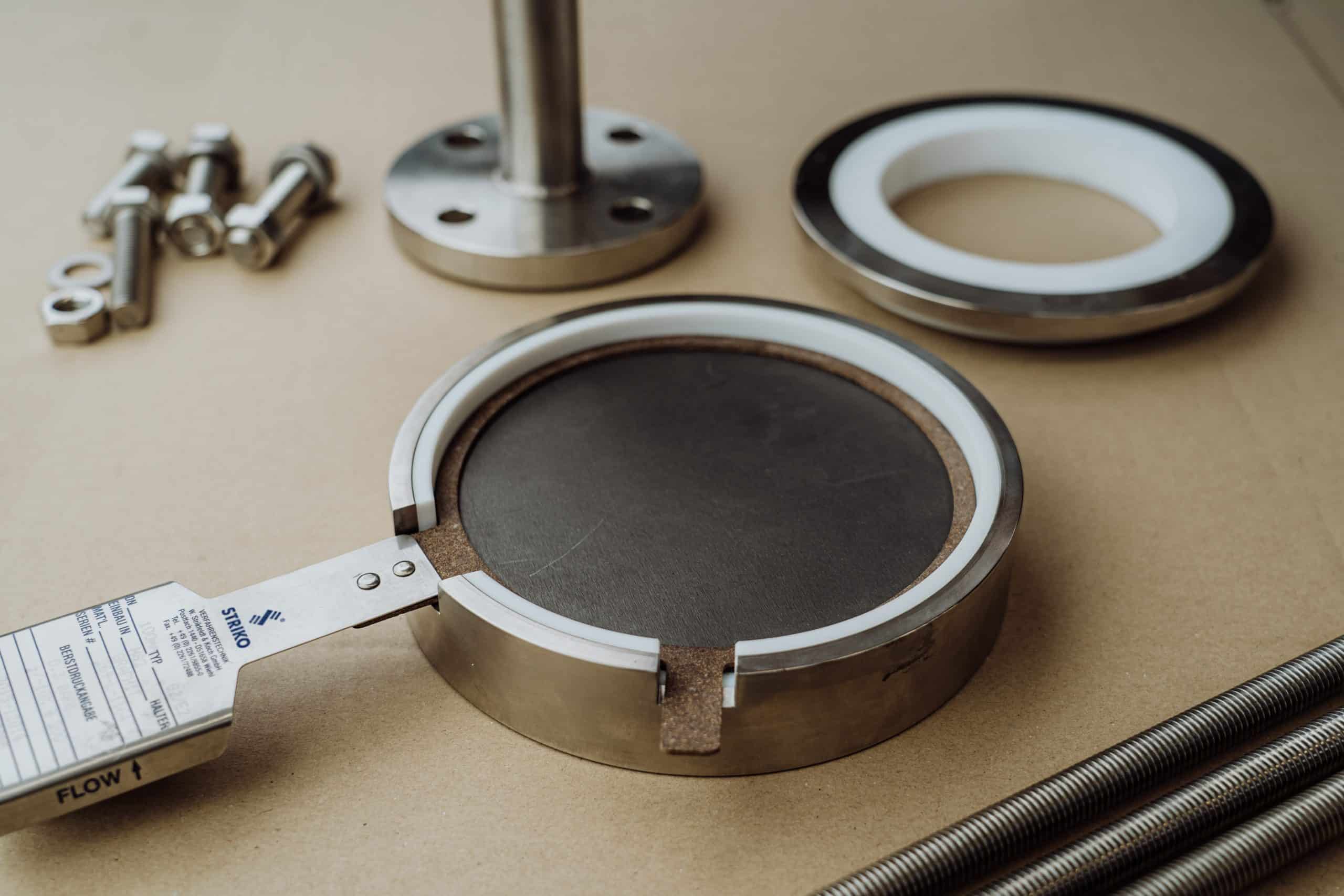

Holder from stainless steel
steel holder for bursting disks
steel holder design example

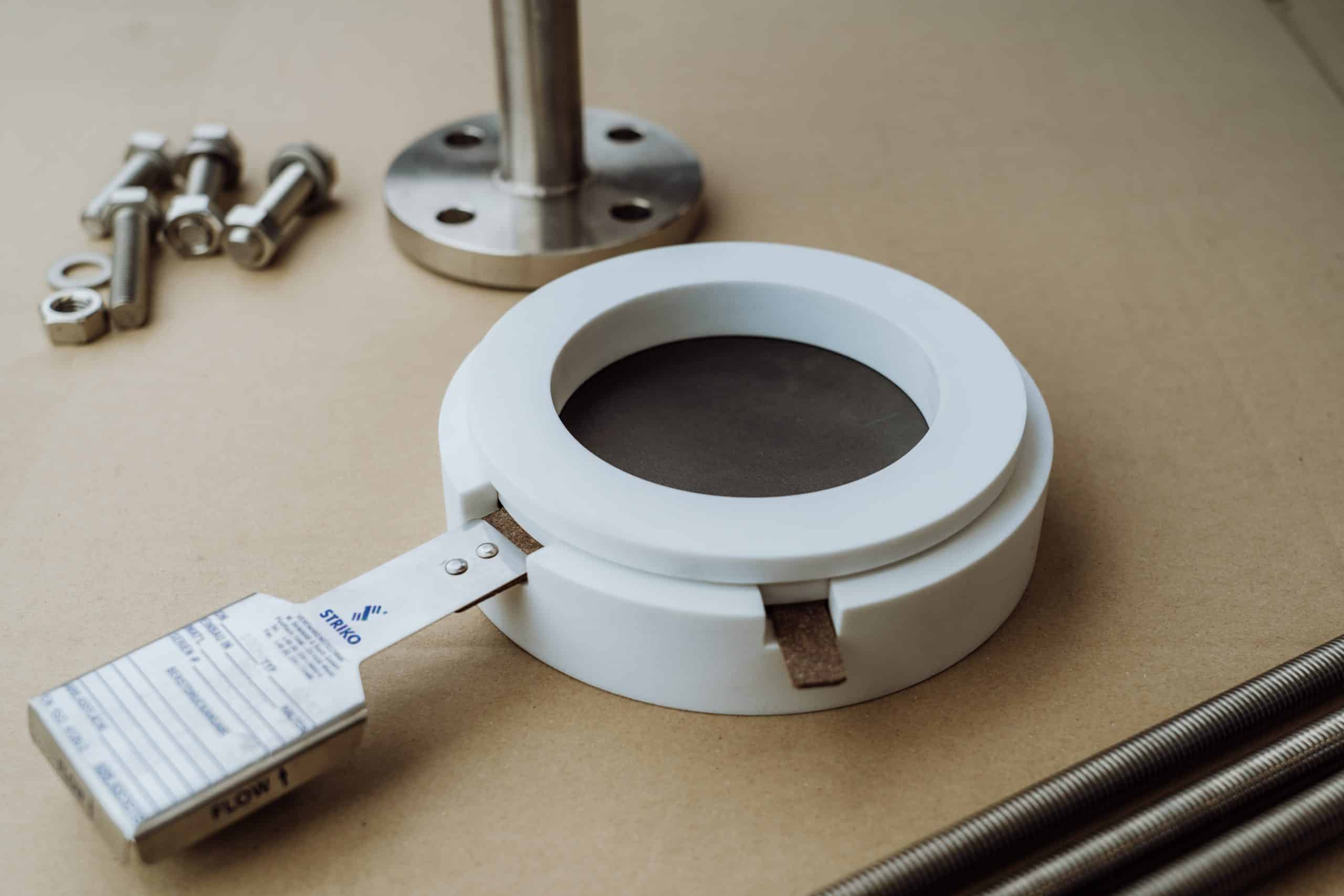

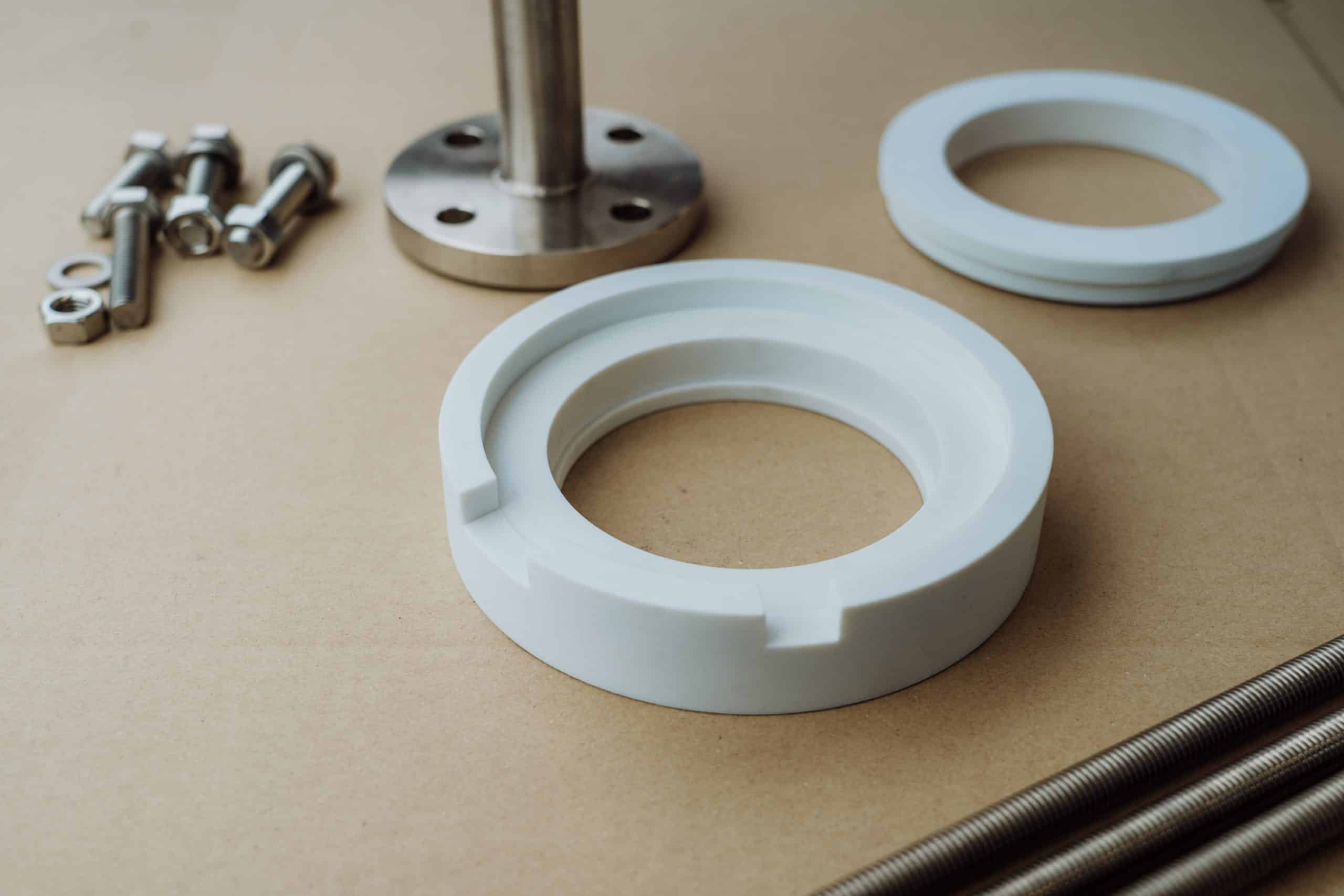

ptfe
ptfe2
ptfe3
ptfe4

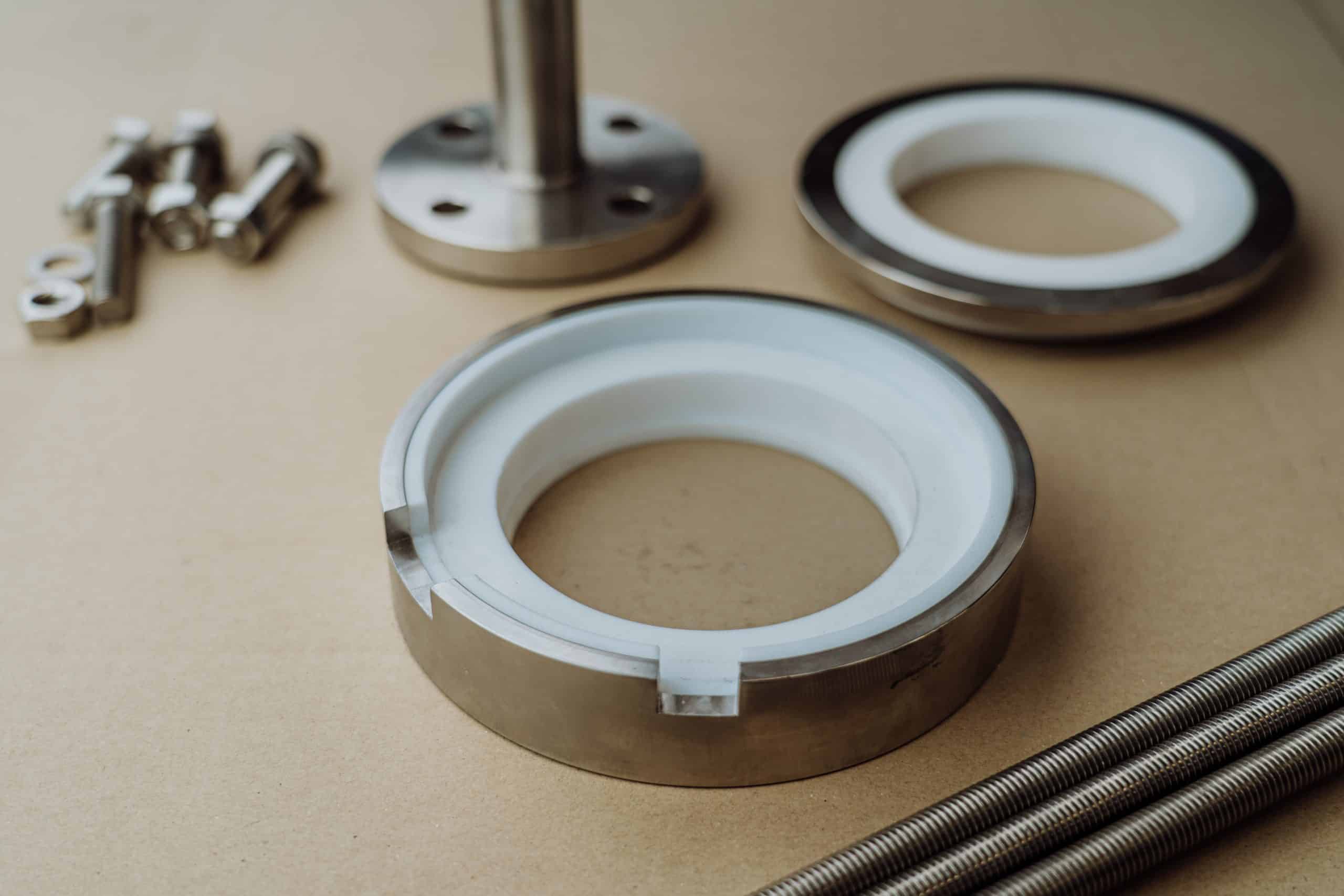

PTFE liner min 4 mm

Advantages in the application
Graphite bursting disks are designed for use with aggressive media
Ideal for applications where cost efficiency is more important than a fragment-free opening behavior of the bursting disks

Individual designs and materials
Bursting disk holders are available in different materials – according to the application requirements.
