Hinged Closure Sight Glass
Hinged process access · Weld pad or flange connection

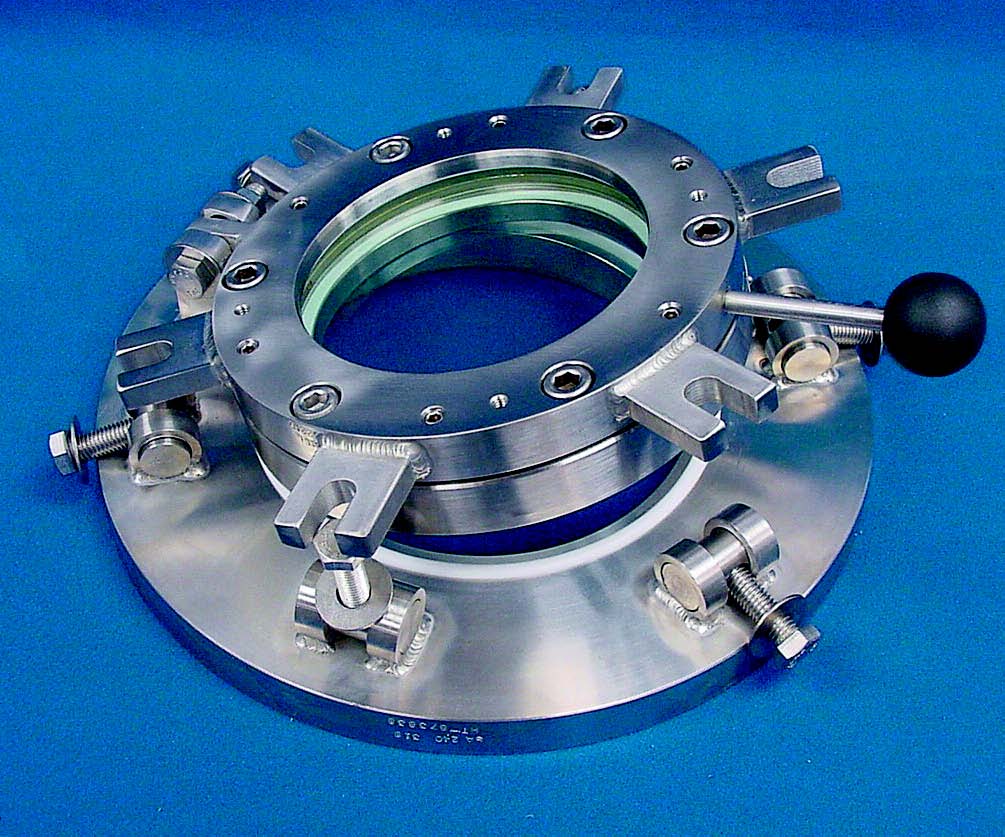

About Hinged Closure
The Hinged Closure Sight Glass provides immediate access to the process, and is designed for mounting PresSure Products Model B or Model L units (depending on pressure requirements) to be hinged and sealed on an O-ring or gasket. Different materials of construction are available to meet your process needs. Units are designed for a weld pad or flange connection (ANSI, DIN, or special bolt pattern).

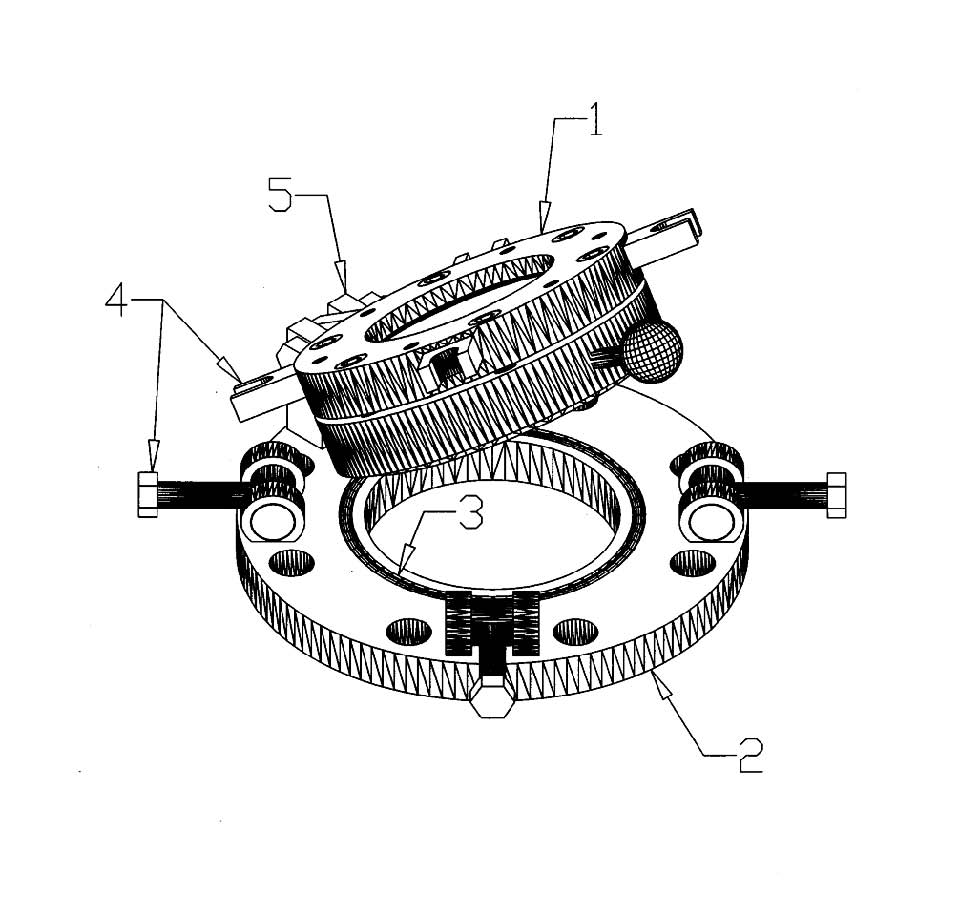

Construction and material options
- Weld pad or flange
- 316 Stainless Steel SA-240; 304 Stainless Steel SA-240; Carbon Steel PVQ; Hastelloy; Monel; Alloy 20; Titanium; Aluminum
- O-ring seal or gasket
- Teflon®; Viton®; Silicone; EPDM; Graphite; Buna-N
- Swing bolts
- 316 Stainless Steel; 304 Stainless Steel; Carbon Steel
- Hinge
- 316 Stainless Steel; 304 Stainless Steel; Carbon Steel
The sight glass uses Model L Weld or Model B Weld components, depending on pressure requirements. Other materials and special bolt patterns may be requested.
Engineering dimensions

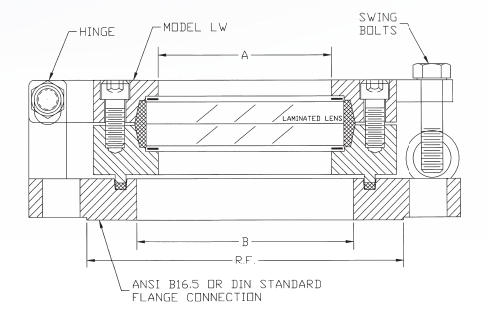

Flange connection
| Flange (in) | Model B A | Model LW A | B | R.F. | Model LW (psi) | Model B (psi) |
|---|---|---|---|---|---|---|
| 4 | 2 5/8 | 3 | 4 | 6 3/16 | 100 | 150 |
| 6 | 3 5/8 | 4 | 6 | 8 1/2 | 100 | 150 |
| 8 | 5 1/2 | 6 | 8 | 10 5/8 | 100 | 150 |

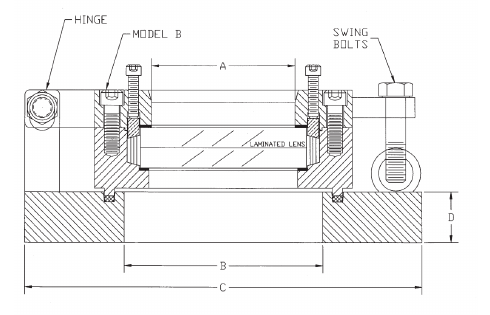

Weld pad connection
| Size (in) | Model B A | Model LW A | B | C | D | Model LW (psi) | Model B (psi) |
|---|---|---|---|---|---|---|---|
| 2 | 1 3/4 | 2 | 3 | 7 1/2 | 1 1/4 | 100 | 150 |
| 3 | 2 5/8 | 3 | 4 | 8 3/4 | 1 1/4 | 100 | 150 |
| 4 | 3 5/8 | 4 | 5 | 10 | 1 1/4 | 100 | 150 |
| 6 | 5 1/2 | 6 | 7 | 12 | 1 1/2 | 100 | 150 |
| 8 | 7 3/8 | 8 | 9 | 15 | 1 1/2 | 100 | 150 |
Approvals and documentation
The original product documentation states that a Quality Assurance System was certified in accordance with Pressure Equipment Directive 97/23/EC (PED), Annex I, Paragraph 4.3, by Certification Body 0036 of TÜV Industrie Service GmbH.
Configure your Hinged Closure
Select an available size or describe a custom requirement. Material choices can be left for Sightflow to advise.
