M-SERIES Switches and Measuring Sensors

FEATURES:
ISO 9001 and CE certificate
High imnnunity to external noise
LED indication and DC power polarity protection
High reliability, lasting durability and low cost

APPLICATION
Position of valve, damper and other devices

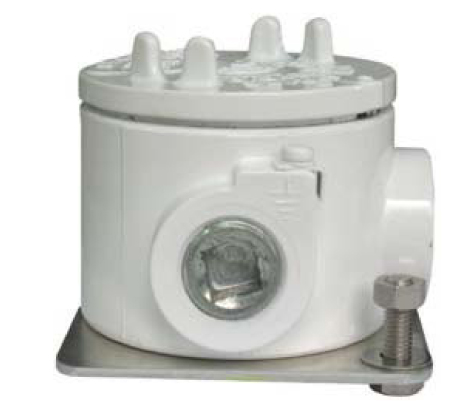

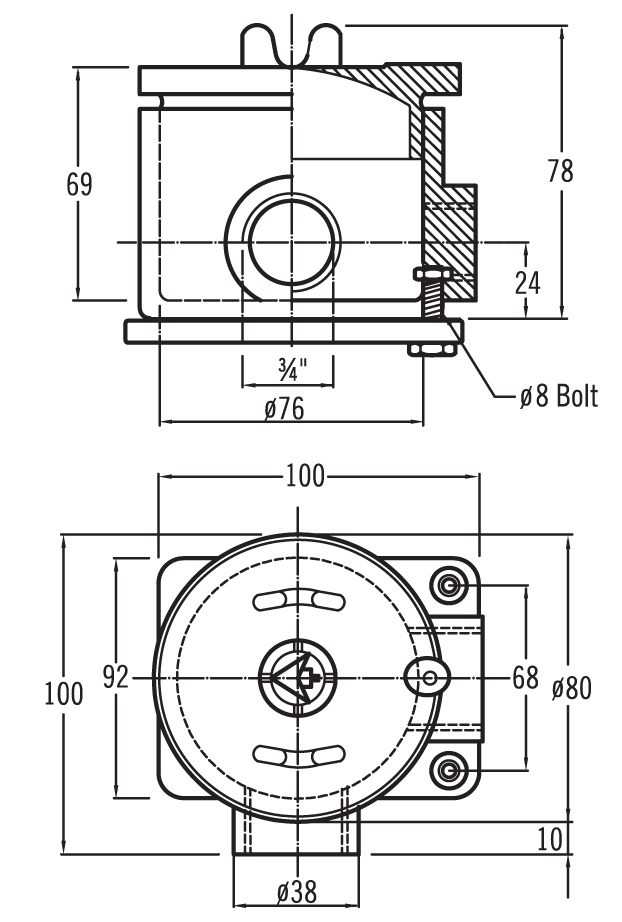

MICRO SWITCH TYPE

Protection: Explosion proof, EExd||CT6, IP65

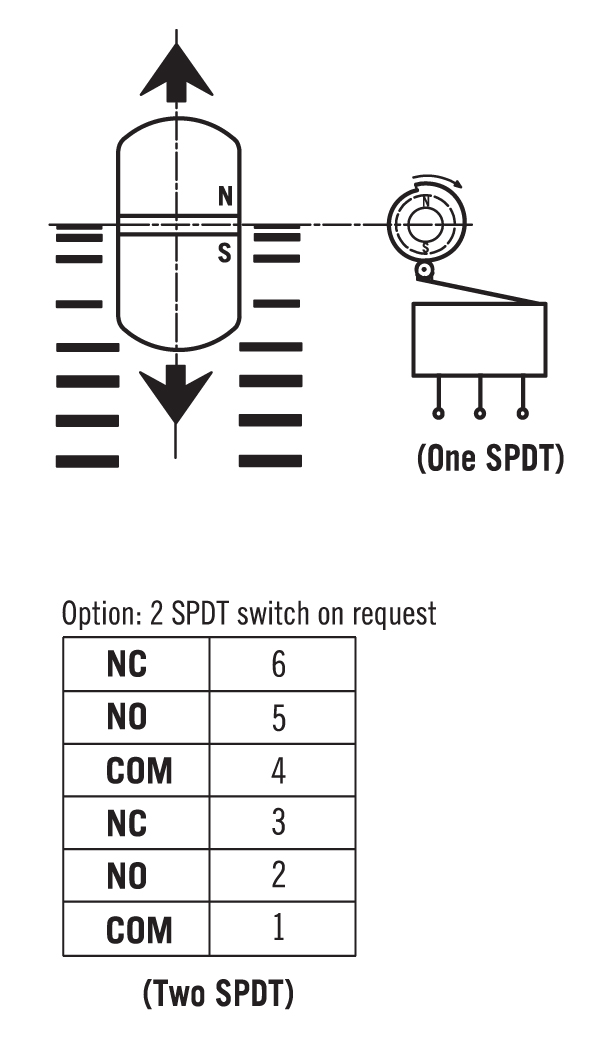

Micro Switch: 1xSPDT;
2xSPDT (one setting point) available
Rating: 3A/250VAC, 3A/30VDC, O.4A/125VDC

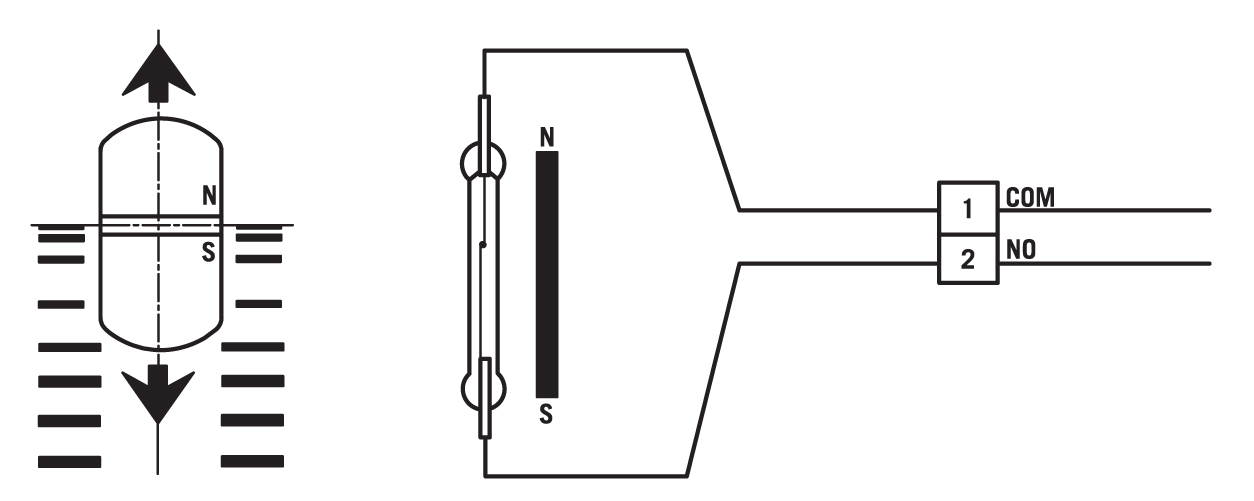

 REED SWITCH TYPE (SPST)

Alarm Switch: form A N.0. type bistable switch
Rating: AC 125V 0.5A /DC 100V 10W / Max. DC 250V < 10mA

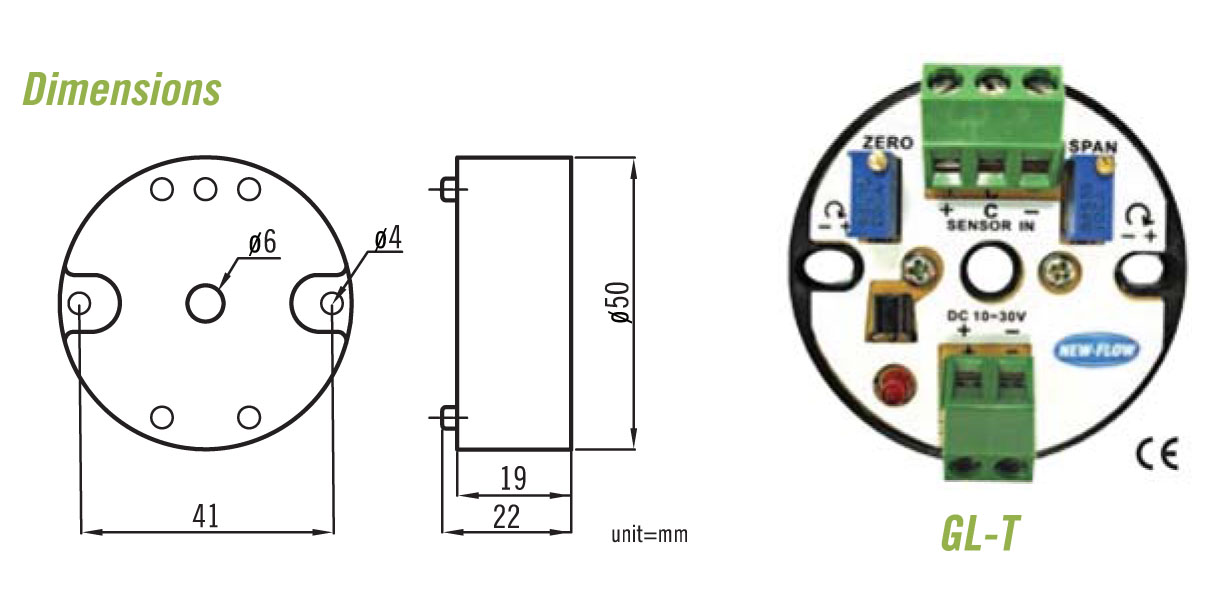

 TRANSMITTER TYPE

Potentiometer I/P
Output Signals: 4~20mA DC,
Load resistance RL(max):(Vs—10)x50Q (2-Wire)
Input Range: 100Ω to 45KΩ (3—Wire)
Output Adjustment Range: Zero adjustment 0~15%
Accuracy: ±0.1% F.S (at 23°C)
Linearity: ±0.1% F.S
Supply Voltage: 10~30V DC
Temp. Coefficient: ±0.02%/°C
Operating Temp.: -5 ~ +70/°C
Operating Humidity: 0~90% RH
Terminal: DIN type
Installation: Head and wall mounting
Case Material: Nylon 6 resin (Black)
Weight: 50 grams

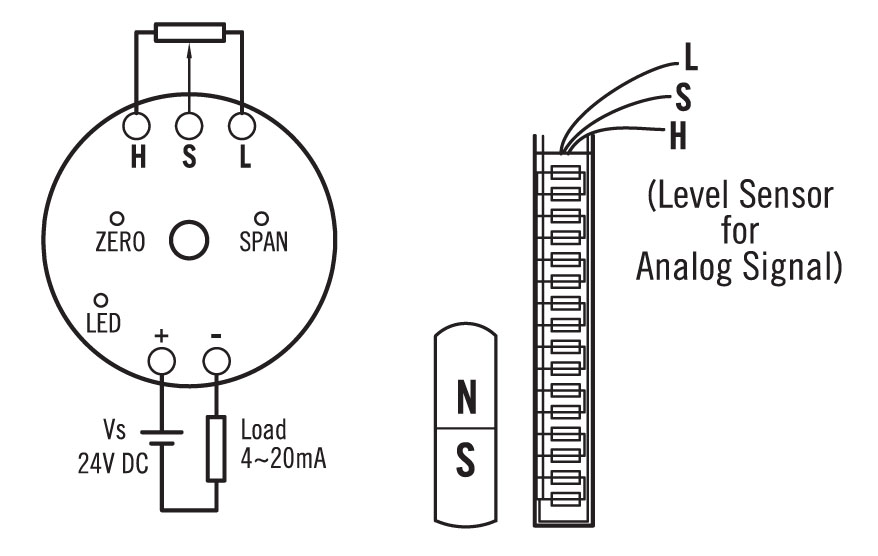

SKETCH TERMINAL AND LEVEL INDICATING STRIP
