Metal One-Way Bursting Disks
S-EW

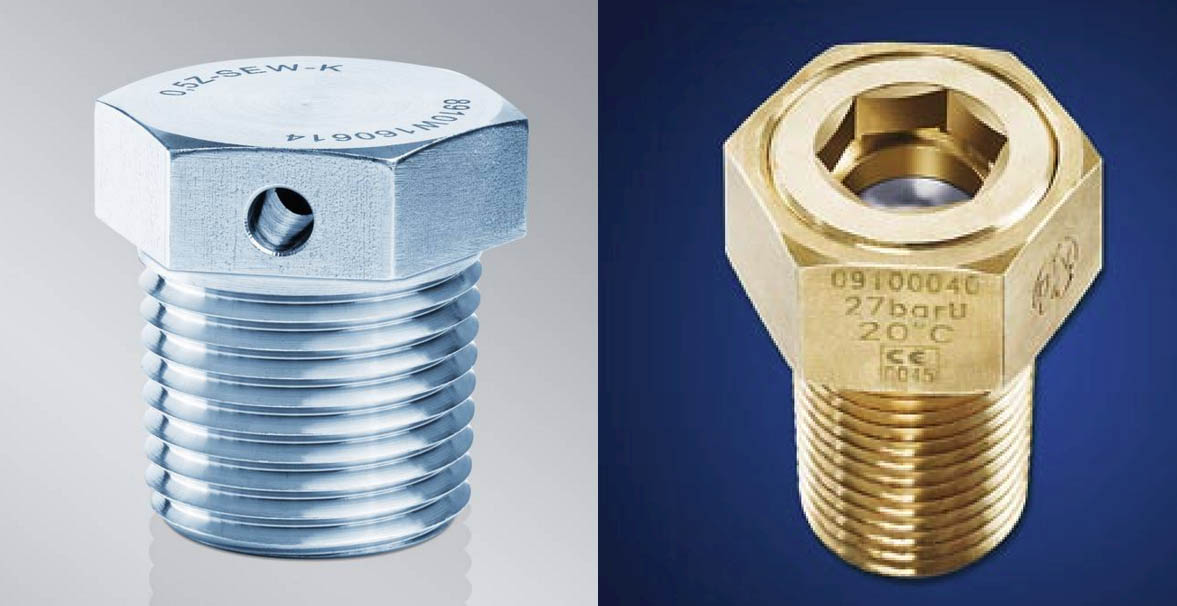

STRIKO one-way bursting disks are frequently used for protection against excess pressure in hydraulic systems. When a burst membrane has triggered, the entire bursting disk unit is replaced by a brand new component.
Models
- S-EW
- STRIKO – one way bursting disc
Advantages in the application
- quick replacements after activation
- can be delivered in different sizes and forms
- fragment-free opening behaviour
- Working ratio: between 90% and 80% available, depending on model; to be confirmed
- can be solely used for pressure protection or in addition to pressure sensors or over-pressure valves
Specifications
- Materials of housing
- Brass or Stainless Steel
- Materials of burst membrane
- Stainless steels, Inconel, nickel, special materials such as hastelloy
- Nominal widths
- 1/4″ to 1″
- Burst pressures
- from 10 bar (g) to 600 bar (g)
- Working ratio
- Between 90% and 80% available, depending on model; to be confirmed
- Burst tolerance
- min +/- 5 %
- Utilisation temperature range
- -50 ℃ to +480 ℃
Select your metal one-way bursting disks
Select a model and add your application details. This is an enquiry selection; Sightflow will confirm the final specification. Fields marked * are required.
