Metal Tube Mini Flow Meter MF100E
Technical Data

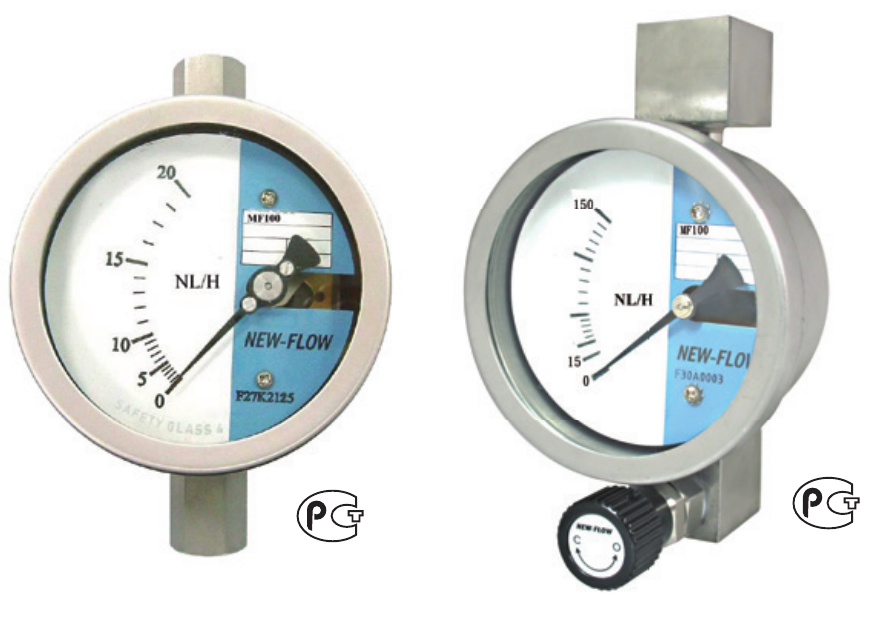

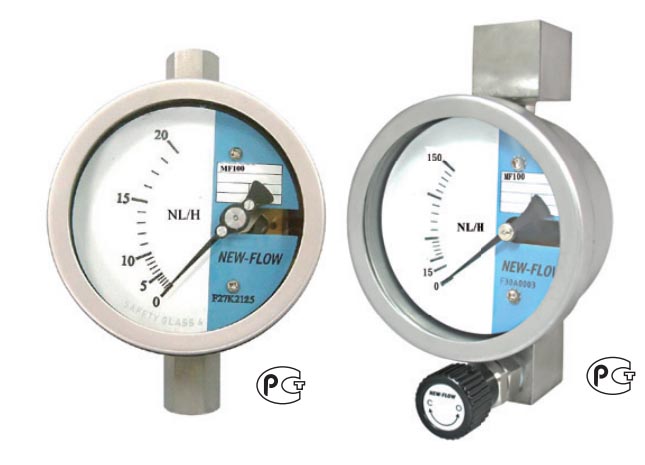

MF100E — For mini low flows of gas.
- Material
- 316 stainless steel case and body.
- Indication
- Magnetic coupling, without seals.
- Flow rate
- 8–150 NL/h.
- Working temperature
- −40 to +180°C without electronic parts.
- Working pressure
- 100 kg/cm² standard; other options on request.
- Connection size
- ¼ in NPT or BSP.
- Protection class
- IP66.
- Accuracy
- ±5% F.S.
Dimensions — mm
Swipe across a drawing to see all details.

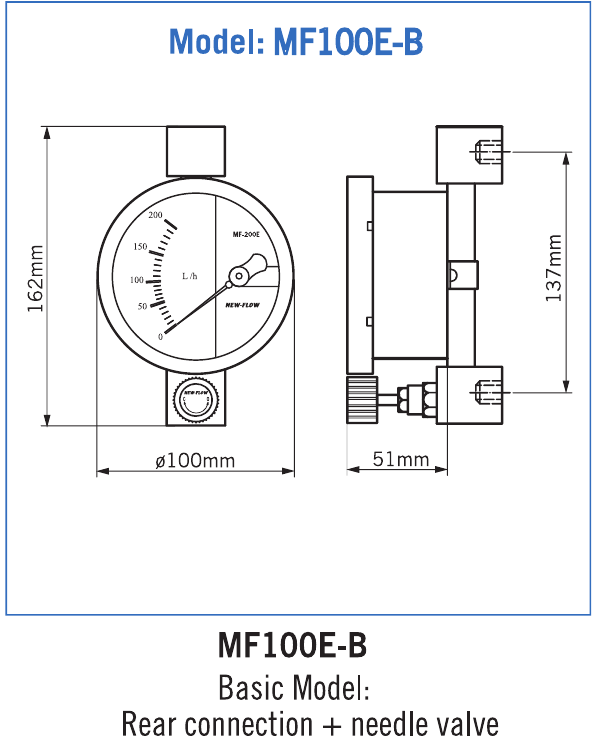

MF100E-B — rear connection with needle valve

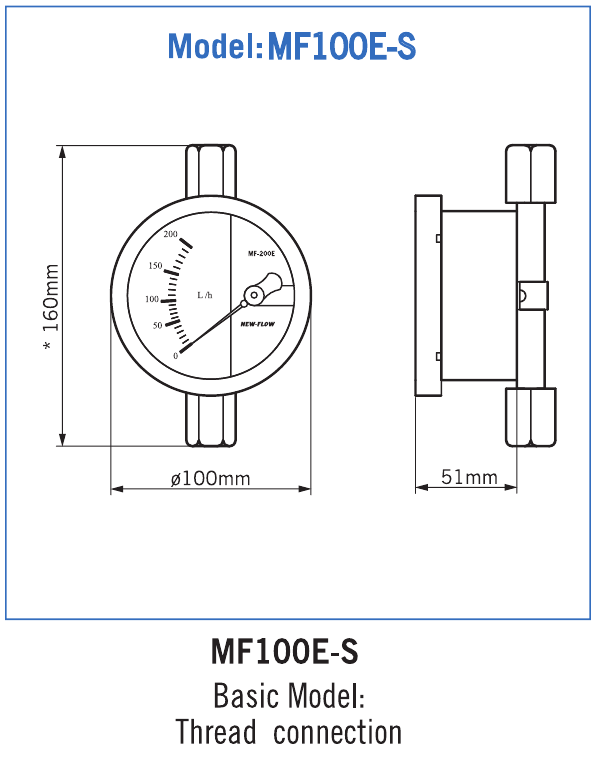

MF100E-S — thread connection
Installation and principle
Swipe across a drawing to see all details.

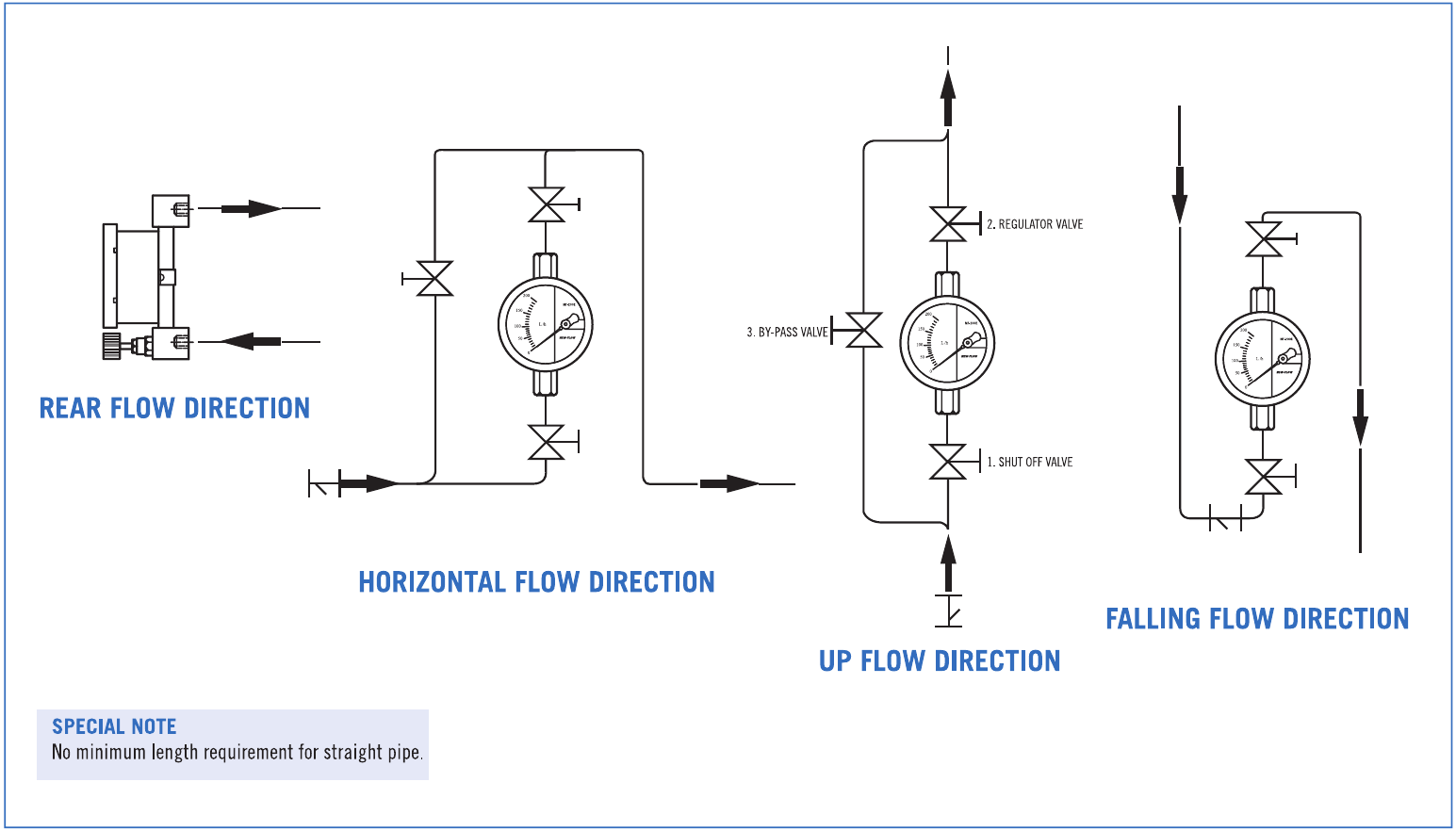

Rear, horizontal, up and falling flow. No minimum straight pipe length.

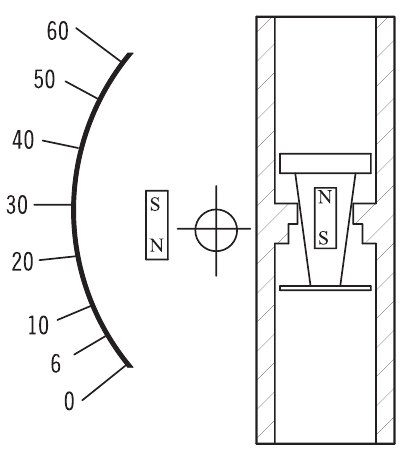

Magnetic indication principle
Standard Scales
| Tube | Air — NL/h 0°C, 1.013 bar | Connection | Accuracy |
|---|---|---|---|
| MF1001 | 8–40 | ¼ in | ±5% F.S. |
| MF1002 | 10–70 | ¼ in | ±5% F.S. |
| MF1003 | 15–90 | ¼ in | ±5% F.S. |
| MF1004 | 15–150 | ¼ in | ±5% F.S. |
Air at 0°C and 1.013 bar. All four standard scales have ±5% F.S. accuracy. Custom ranges are available on request. Technical data are subject to change.
