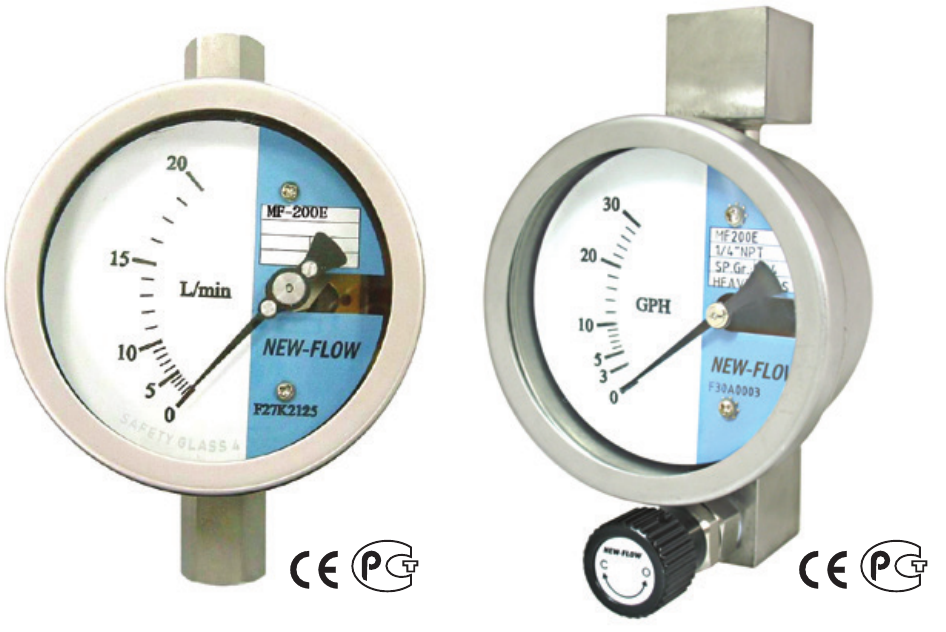

Metal Tube Flow Meter MF200E
Technical Data
MF200E — For low flows of gas, liquid and steam.
- Case and body
- 316 stainless steel case and body; SS316L ordering option.
- Indication
- Magnetic coupling, without seals.
- Scales calibrated
- L/h, m³/h, kg/h, %.
- Flow rates
- Water: 0.4–4,000 L/h. Air: 21–120,000 NL/h.
- Connections
- BSP, NPT; flange on request. Technical data: ¼–1½ in; ordering table also lists 2 in threads.
- Working temperature
- −40 to +180°C without electronic parts; −40 to +150°C with electronic parts.
- Working pressure
- 100 kg/cm² standard; other options on request.
- Protection class
- IP66.
- Accuracy
- ±2% F.S.; ±1.6% option. MF2001E: ±6% F.S.; second scale: ±3% F.S.
Dimensions — mm
Swipe across a drawing to see all details.

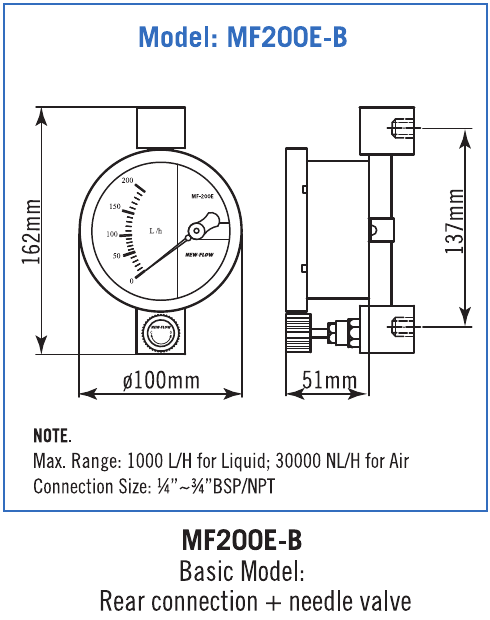

MF200E-B — rear connection with needle valve

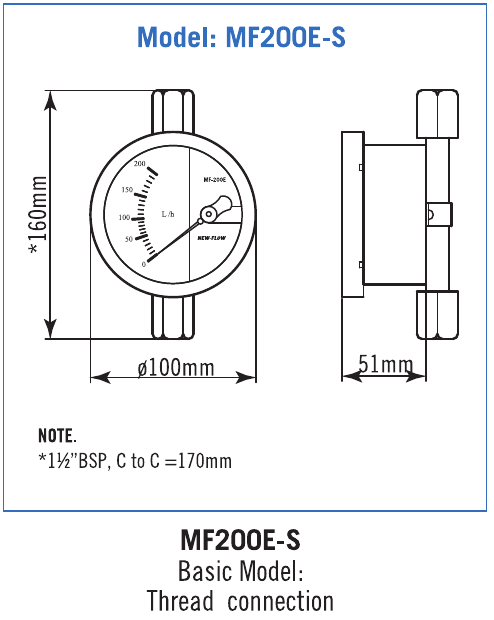

MF200E-S — thread connection

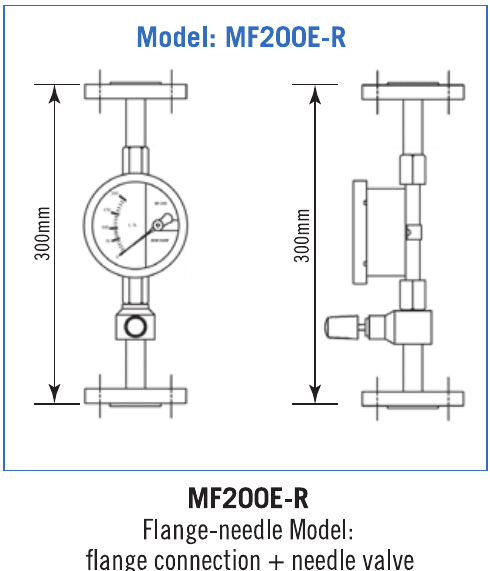

MF200E-R — flange connection with needle valve

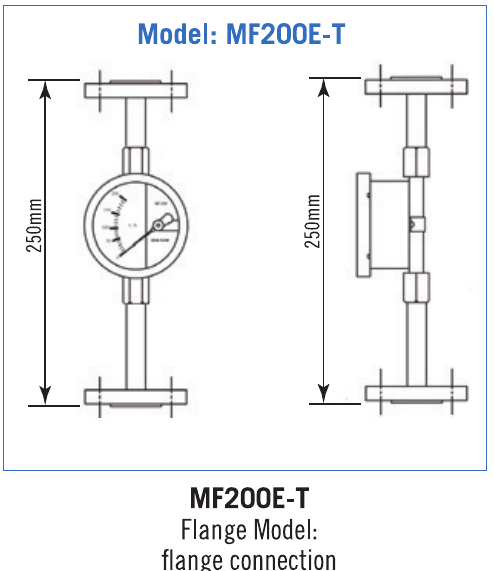

MF200E-T — flange connection
Installation and principle
Swipe across a drawing to see all details.

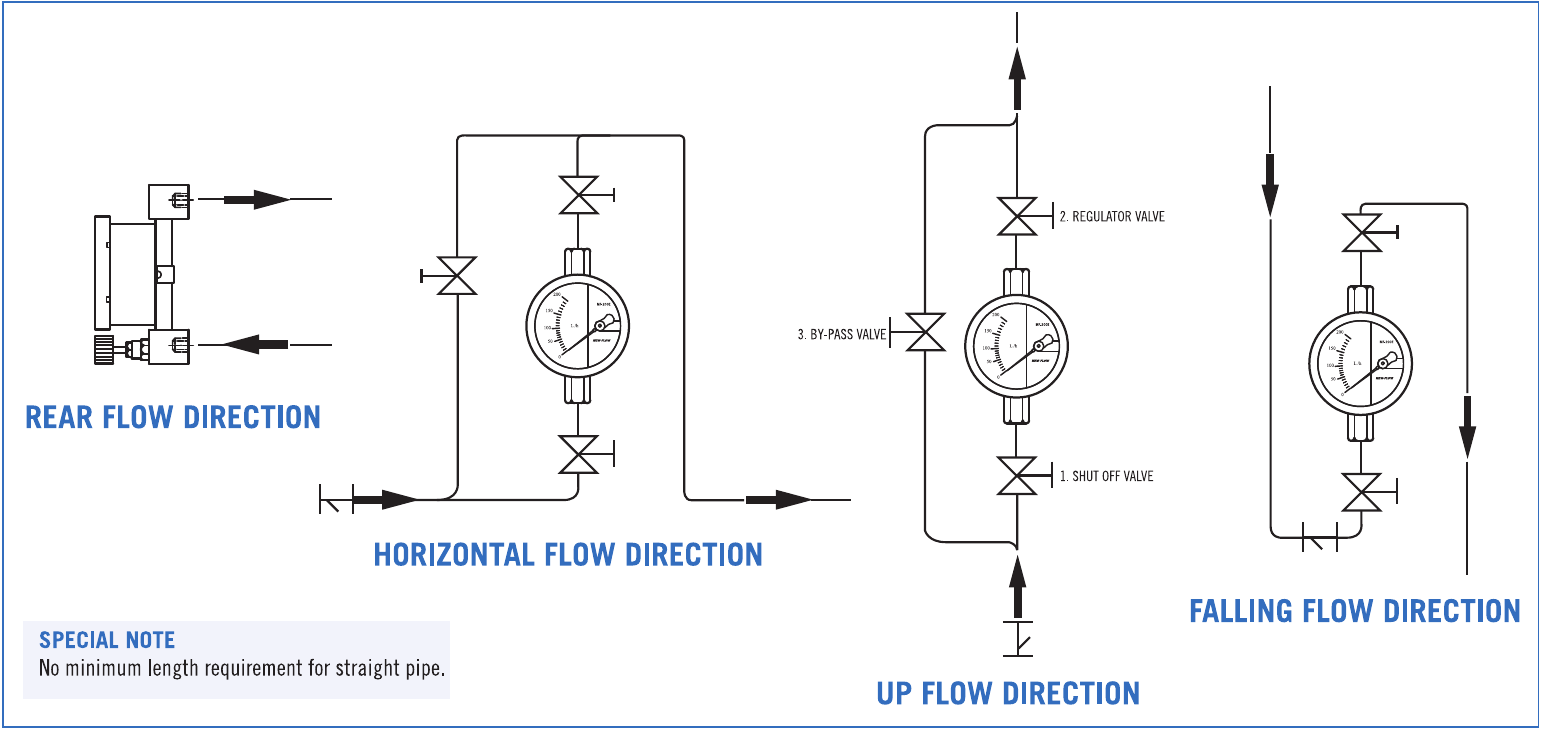

Rear, horizontal, up and falling flow. No minimum straight pipe length.

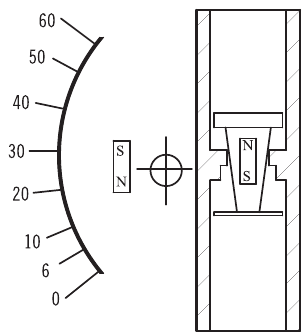

Magnetic indication principle
Standard Scales
| Tube | Water — L/h 20°C | Air — NL/h 0°C, 1.013 bar | Pressure loss mm water | Connection | Accuracy |
|---|---|---|---|---|---|
| MF2001E | 0.4–4 | 21–210 | 340 | ¼ in | ±6% F.S. |
| MF2002E | 0.6–6 | 33–330 | 340 | ¼ in | ±3% F.S. |
| MF2003E | 1–10 | 48–480 | 340 | ¼ in | ±2% F.S. |
| MF2004E | 1.5–15 | 60–600 | 340 | ¼ in | ±2% F.S. |
| MF2005E | 2–20 | 72–720 | 340 | ¼ in | ±2% F.S. |
| MF2006E | 3–30 | 90–900 | 340 | ¼ in | ±2% F.S. |
| MF2007E | 5–50 | 120–1200 | 340 | ¼ in | ±2% F.S. |
| MF2008E | 6–60 | 180–1800 | 340 | ¼ in | ±2% F.S. |
| MF2009E | 10–100 | 300–3000 | 340 | ¼ in | ±2% F.S. |
| MF2010E | 15–150 | 500–5000 | 340 | ½ in | ±2% F.S. |
| MF2011E | 25–250 | 750–7500 | 340 | ½ in | ±2% F.S. |
| MF2012E | 45–450 | 1500–15000 | 340 | ½ in | ±2% F.S. |
| MF2013E | 75–750 | 2000–20000 | 340 | ¾ in | ±2% F.S. |
| MF2014E | 100–1000 | 3000–30000 | 340 | 1 in | ±2% F.S. |
| MF2015E | 150–1500 | 5000–50000 | 450 | 1½ in | ±2% F.S. |
| MF2016E | 200–2000 | 7500–75000 | 450 | 1½ in | ±2% F.S. |
| MF2017E | 300–3000 | 9000–90000 | 450 | 1½ in | ±2% F.S. |
| MF2018E | 350–3500 | 11000–110000 | 450 | 1½ in | ±2% F.S. |
| MF2019E | 400–4000 | 12000–120000 | 450 | 1½ in | ±2% F.S. |
Water at 20°C; air at 0°C and 1.013 bar. Rear connection B: maximum 1,000 L/h water or 30,000 NL/h air; ¼–¾ in BSP/NPT. No standard scale is published for the 2 in thread ordering option. Custom ranges require review. Technical data are subject to change.
Build your MF200E ordering code
Select the options in the same order as the PDF. Each choice shows its ordering code.
