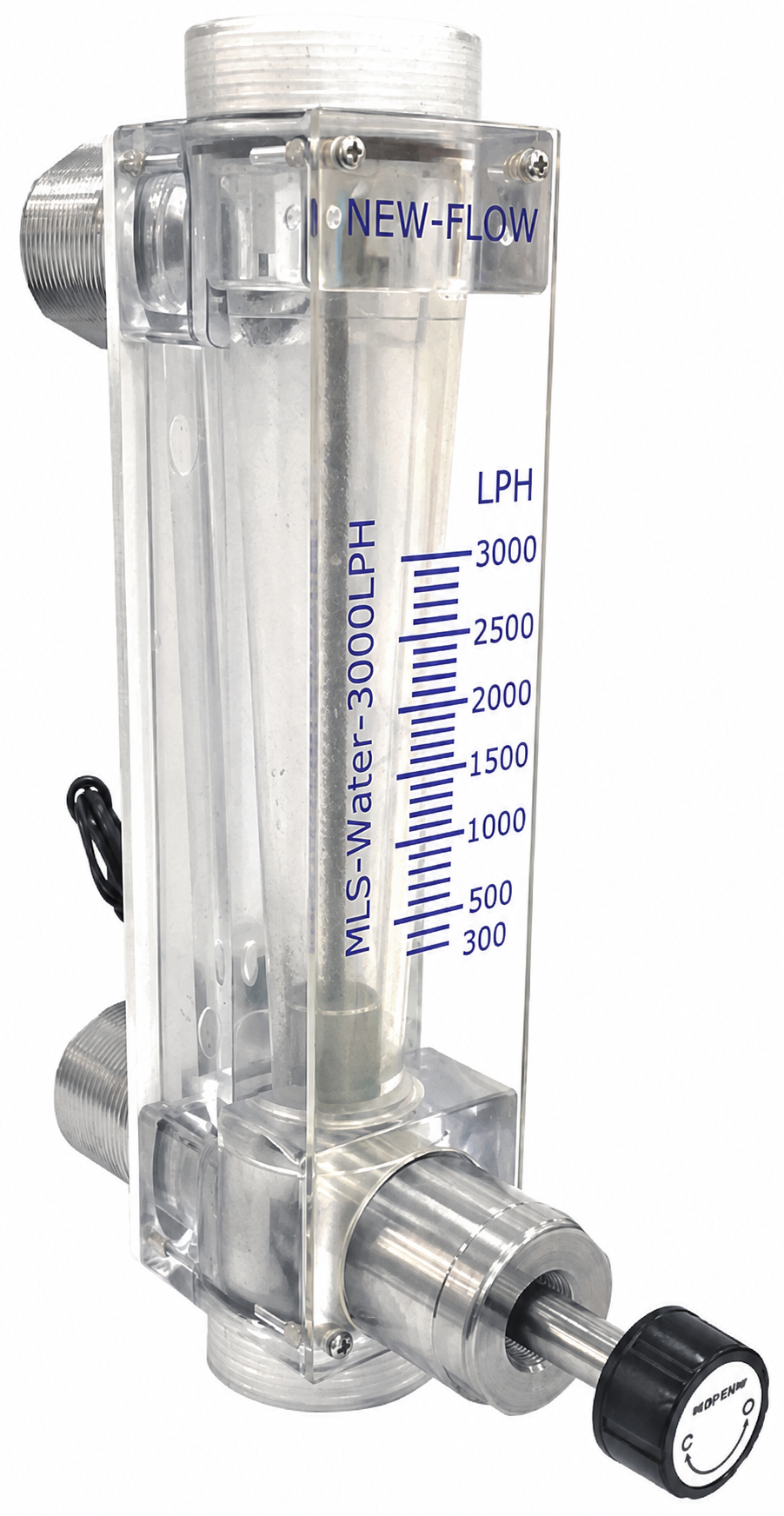

MLS Series — Rotameter

Name: MLS Series — Rotameter
Brand: Sightflow

Plastic flow meter · Adjustable front alarm setting

Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.

Find your meter

MLS Series

Technical data

Application and operating limits

Service: Water and air
Accuracy: ±5% of full scale
Mounting: Vertical; bottom rear to top rear flow
Working pressure: 1.2 MPa (12 kg/cm² as printed in PDF)
Temperature: −10 to 60°C, PC body
Test pressure: 1.4 MPa at water 25°C; not an operating rating
Weight: 0.3–0.4 kg

Materials and alarm

Body: Polycarbonate (PC)
Float / seal: Stainless steel 316 / Viton
Connections: Stainless steel; ½ in NPT, PT or G (PF) female
Needle valve: With or without
Alarm: One setting; form A normally open bistable reed switch, standard ↑ON
Setting range: 10–80% of full scale
Switch rating: AC 125 V / 0.5 A; DC 100 V / 10 W; maximum DC 250 V <40 mA

Dimensions and construction

MLS Series original dimensions from datasheet — MLS — Original dimensional drawing

MLS body dimensions — mm
Width	Overall height	Connection centres	Rear projection	Base depth
43	201	146	36.5	49.5

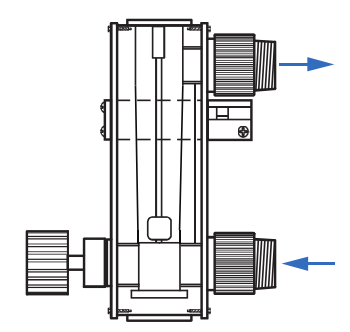

MLS Series original direction from datasheet — MLS — Bottom rear to top rear

MLS flow direction and options
Flow direction	Alarm	Needle valve
Bottom rear to top rear	One setting; with or without	With or without

Select your MLS Series meter

Choose your fluid, units and maximum range to compare the available scales.

1–3. Your flow requirements

1. Fluid2. Flow units3. Max flow range

4. Choose a matching meter

Choose a fluid to begin.

6. Your selection

Your selected meter will appear here.

Selected referenceComplete your selection above

Request a quote

Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
