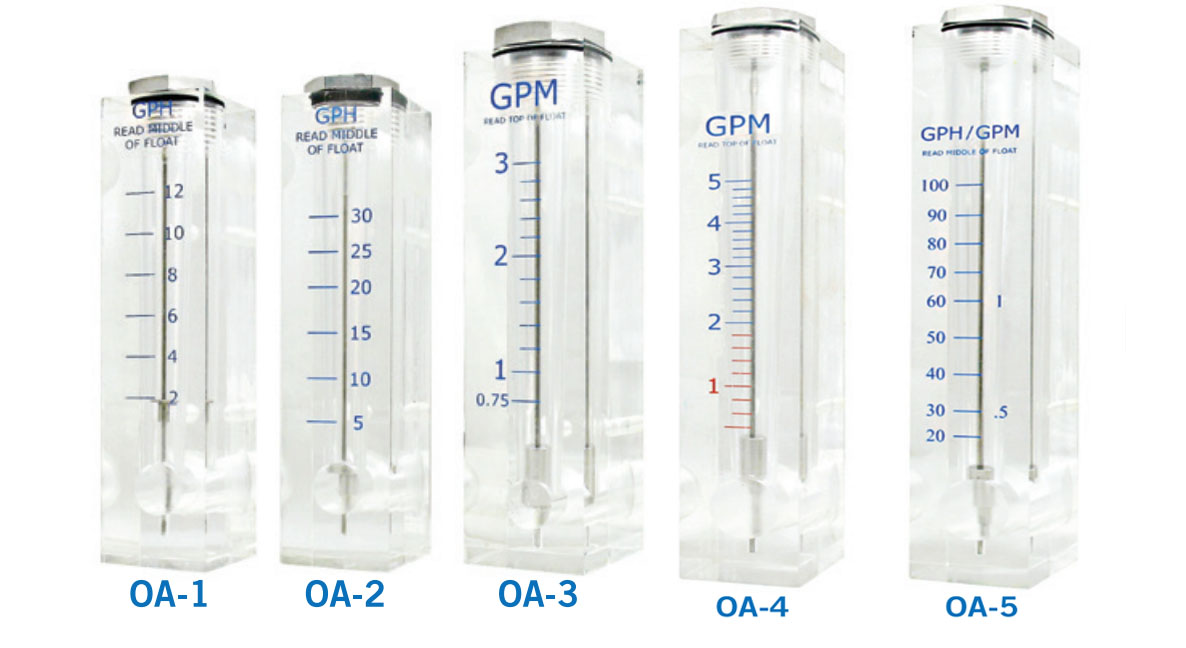

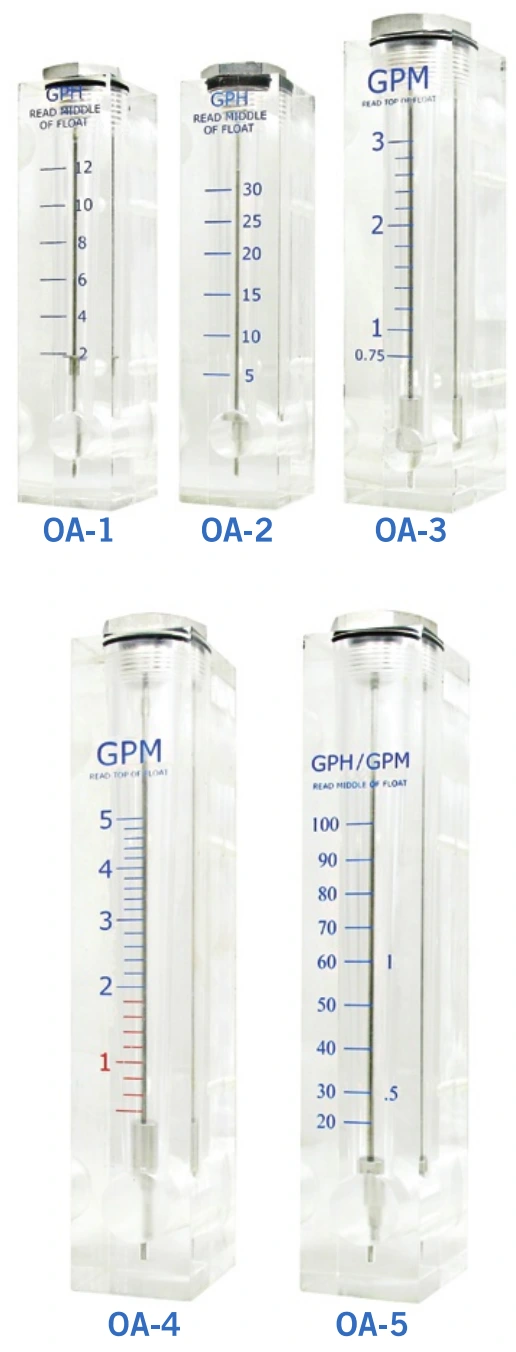

OA Series — Acrylic Flow Meter

Name: OA Series — Acrylic Flow Meter
Brand: Sightflow

Acrylic flow meter · Water and liquid · OEM available

Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.

Find your meter

OA Series

Technical data

Application and operating limits

Service: Water and liquid
Pressure limit: 120 psig (8.4 bar) at 38°C (100°F)
Temperature: 0–45°C
Accuracy: ±3% of full scale
Mounting: Vertical

Materials and connections

Body: Acrylic
O-ring: EPDM
Float guide / top plug: 304 stainless steel
Connections: OA-1 / OA-2 / OA-3: ¼ in NPT female; OA-4 / OA-5: ½ in NPT female
OEM: Custom sizes and flow ranges available

Dimensions and construction

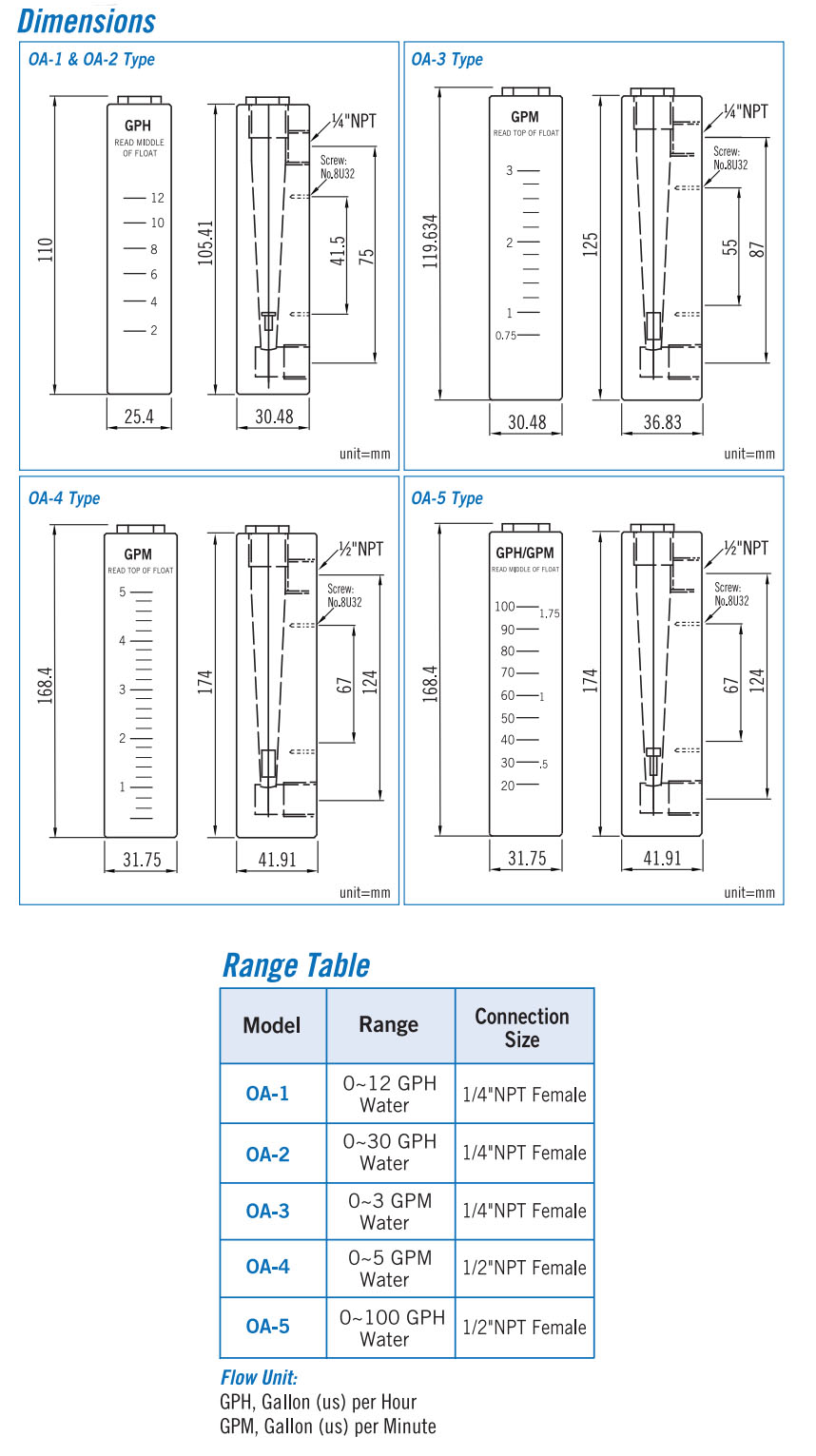

OA Series dimensions (mm)
Model	Front height	Side height	Front width	Depth	Connection centres	Mounting centres

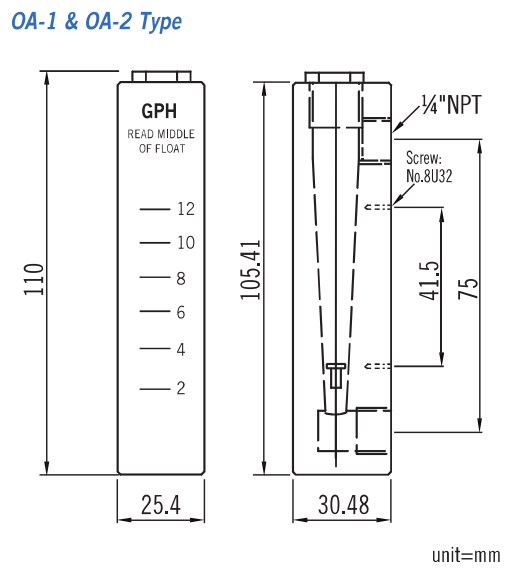

OA-1 / OA-2	110	105.41	25.4	30.48	75	41.5

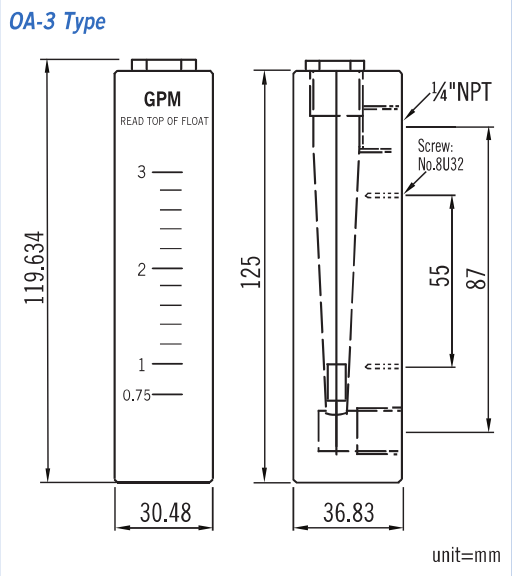

OA-3	119.634	125	30.48	36.83	87	55

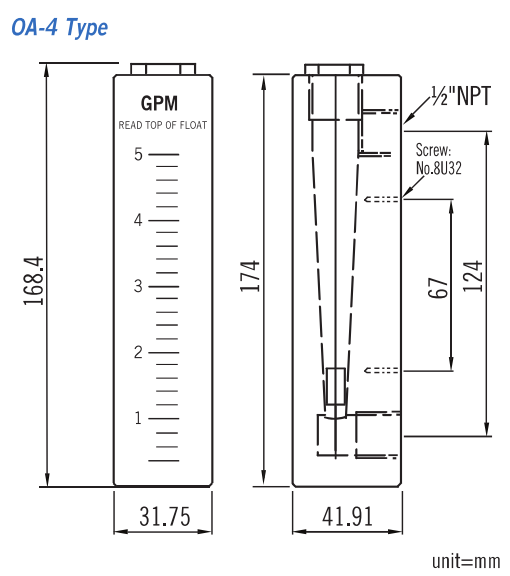

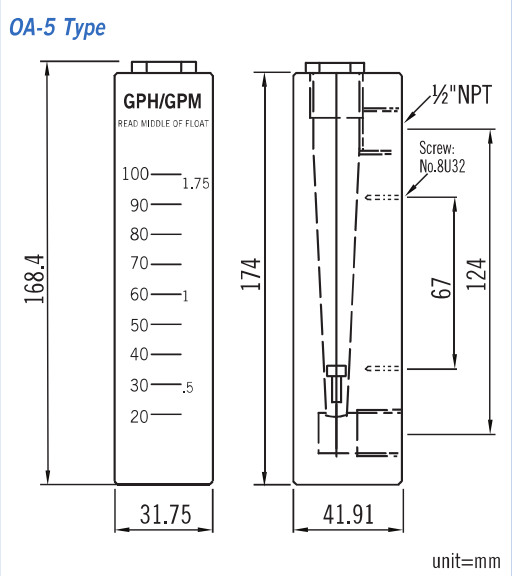

OA-4 / OA-5	168.4	174	31.75	41.91	124	67

Select your OA Series meter

Choose your fluid, units and maximum range to compare the available scales.

1–3. Your flow requirements

1. Fluid2. Flow units3. Max flow range

4. Choose a matching meter

Choose a fluid to begin.

6. Your selection

Your selected meter will appear here.

Selected referenceComplete your selection above

Request a quote

Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
