P117 Ultrasonic Flowmeter
Portable Transit-time Ultrasonic Flowmeter
Applications and measurement
Portable transit-time flow measurement checks at multiple points in a liquid-flow process without a permanent installation. Magnetic clamp-on transducers cover pipes from 25 to 1200 mm.
The rechargeable lithium battery provides a published 10-hour operating time. A 3.5-inch TFT display and 8 GB SD-card logging support temporary measurements and data collection.
About P117

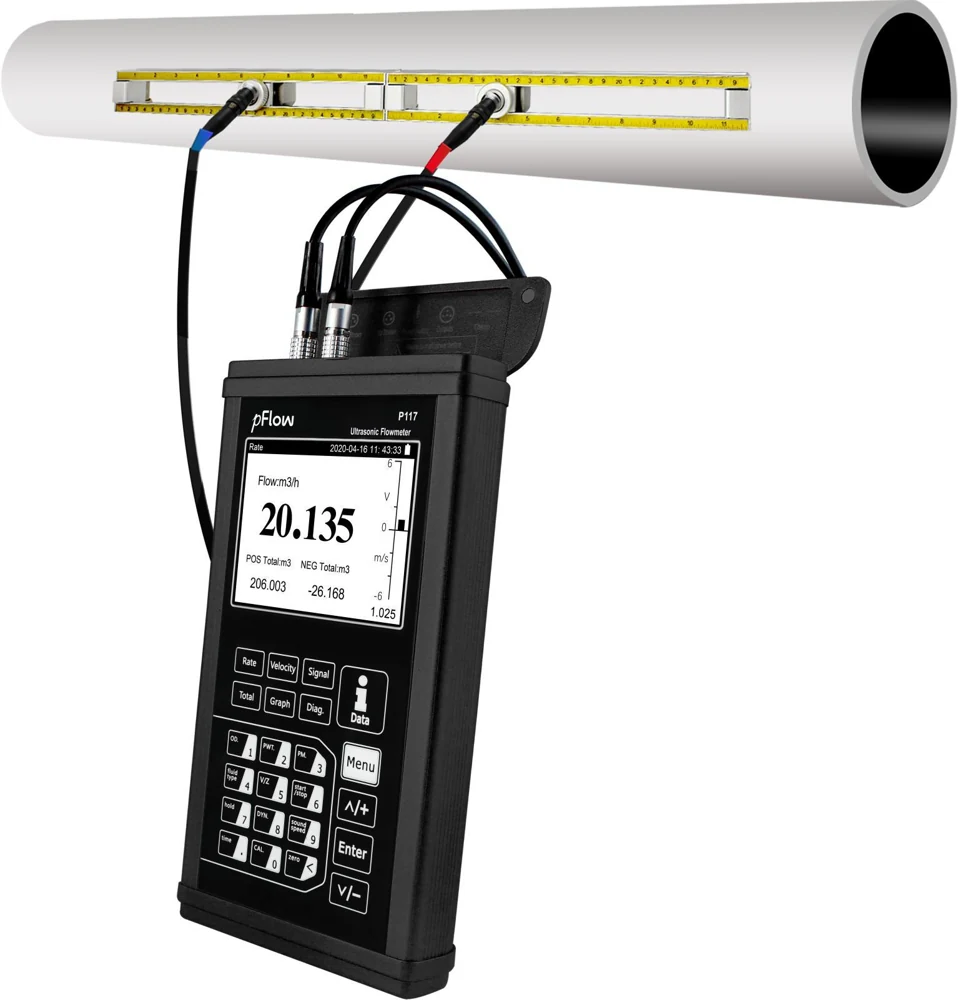

Handheld ultrasonic flowmeter with a dual-function push-button interface, ergonomic design and backlit 320 × 240 display.
- TVT technology.
- Low-voltage broadband pulse transmission with low power consumption and fewer hardware components.
- Clear, user-friendly menu selections. Daily, monthly and yearly totalized flow.
- Parallel positive, negative and net totalizers with scale factor (span) and 7-digit display; totalizing pulse and frequency output via relay and open collector.
Application and Installation Guidance
Measurement location
Select a fully developed flow profile in a pipe that remains full: a vertical pipe flowing upwards or a full horizontal pipe.
Provide the straight upstream and downstream lengths shown in the installation drawings. Keep the measurement-point temperature within the transducer limits and avoid excessive internal corrosion or scaling.
Technical Data, Dimensions and Wiring
Performance specifications
- Flow velocity range
- ±0.01–±6 m/s (±0.03–±20 ft/s)
- Accuracy
- ±1%
- Repeatability
- 0.3%
- Linearity
- ±1%
- Pipe size
- Clamp-on: 25–1200 mm (1–48 inches)
Function specifications
- Output and communication
- 4–20mA, maximum load 750 Ω; RS485 in the ordering specification.
- SD-card logging
- 8 GB; maximum 512 files; logging interval 1–60 seconds.
- Power supply
- Rechargeable lithium battery; 10 hours stated in the ordering specification.
- Keypad
- Tactile keys
- Display
- 3.5-inch TFT, 320 × 240, backlit LCD
- Transmitter temperature
- −10 to 50°C (14–122°F)
- Transducer temperature
- −40 to 80°C as printed in the Celsius specification; see configuration notes.
- Humidity
- 0–99% RH, non-condensing
Physical specifications
- Transmitter protection
- NEMA13 (IP54)
- Transducer protection
- Encapsulated design, IP68 in the specification table; see configuration notes.
- Transducer cable
- Standard 16 ft (5 m). Extensions on request, up to 305 m in 5 m increments.
- Transmitter weight
- Approximately 1.0 kg
- Transmitter dimensions
- 111 × 209 × 39 mm
- Transducer dimensions
- 300 × 40 × 30 mm
Configuration notes
- Transducer protection
- The specification table states IP68, while the ordering description states IP54. Confirm the required protection for your application.
- Transducer temperature
- The PDF prints −40 to 80°C alongside 40–176°F; the lower limits do not agree. Confirm the required low-temperature rating.

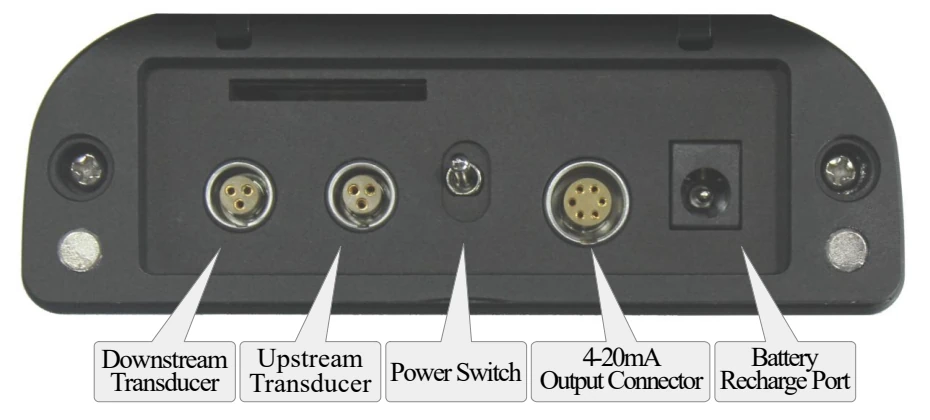

Connections

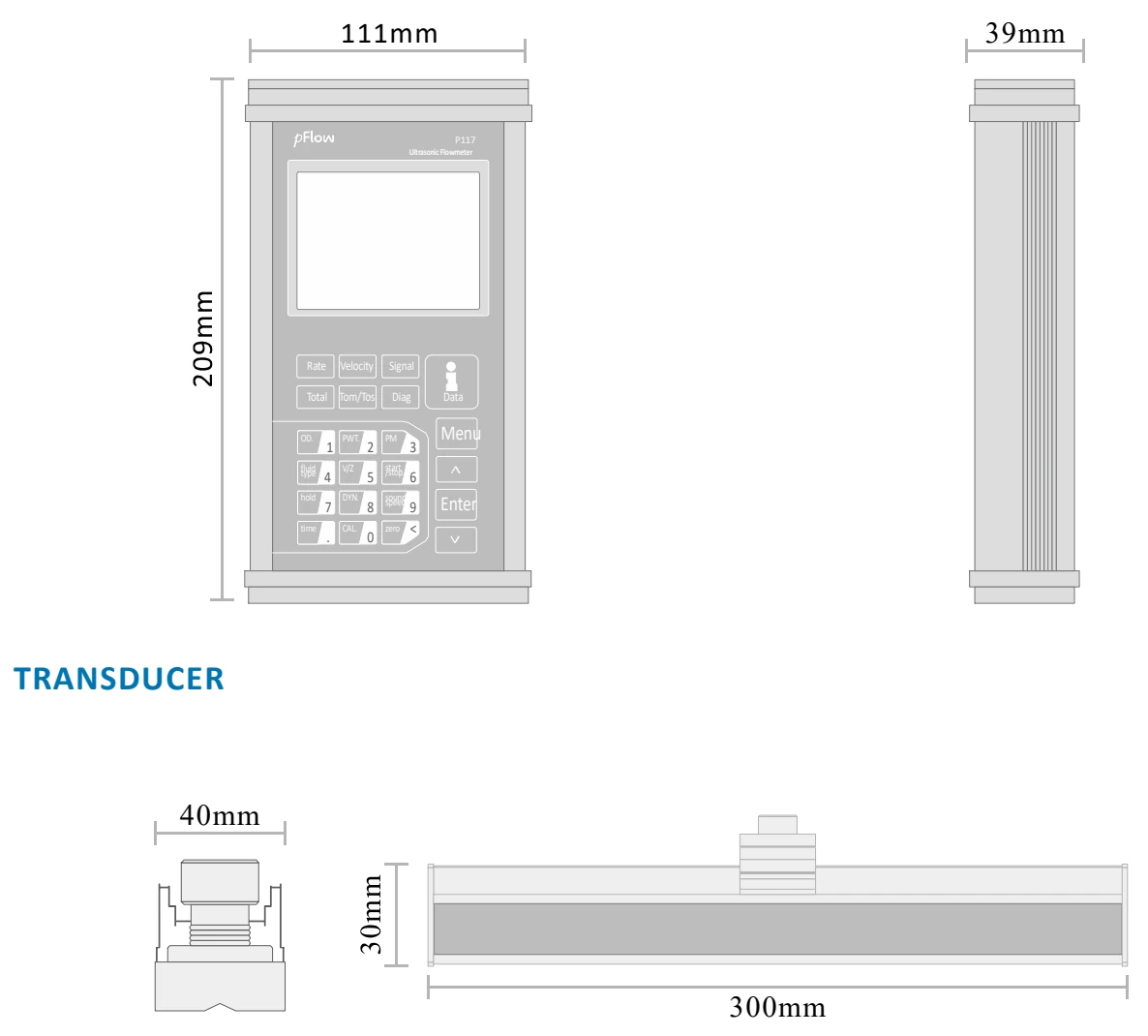

Transmitter and Transducer Dimensions — mm
Transducer Installation Methods

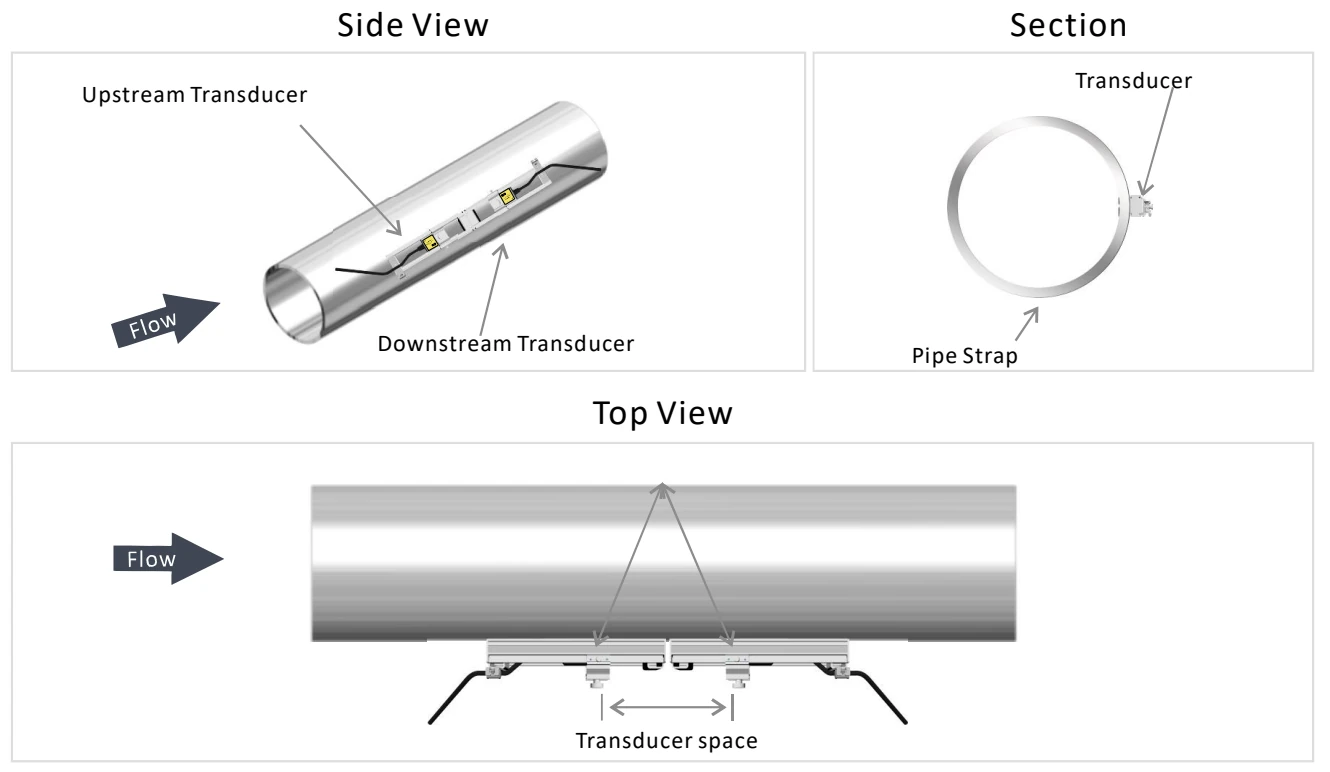

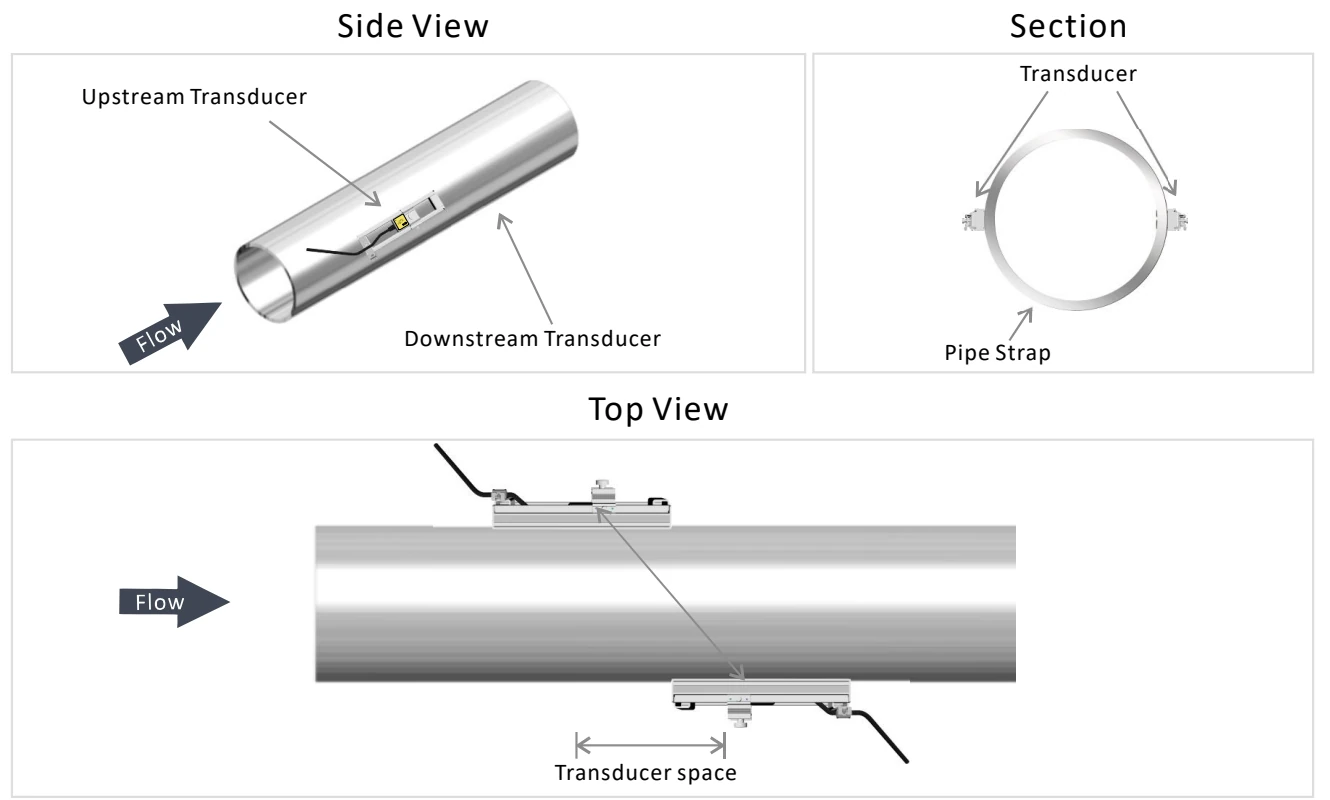

V method: 50–400mm pipe. Z method: 25–1200mm pipe.

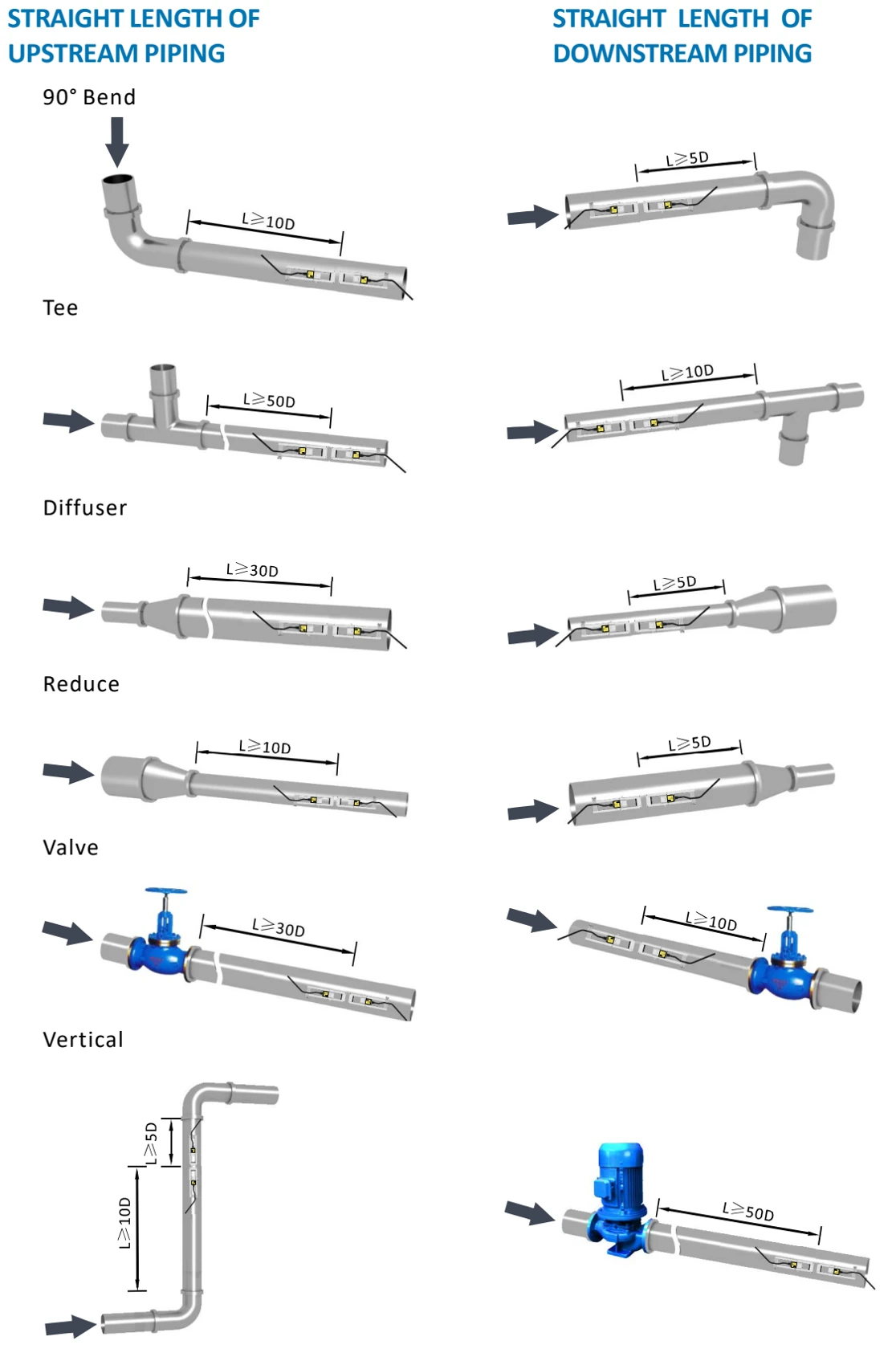

Installation Site Selection
Minimum straight lengths (upstream / downstream): 90° bend 10D / 5D; tee 50D / 10D; diffuser 30D / 5D; reducer 10D / 5D; valve 30D / 10D; vertical pipe 10D / 5D; pump 50D after the pump. D is pipe diameter.

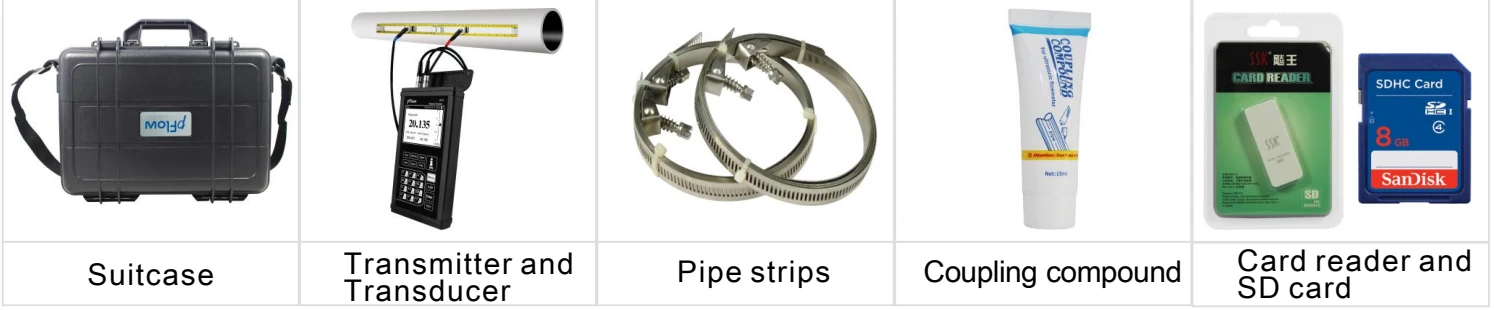

Packaging
Suitcase; transmitter and transducers; pipe strips; coupling compound; card reader and SD card.
Build your P117 ordering code
Example — Standard Model: P117-P011-016
Portable P117 with P011 magnetic transducers, 4–20mA/RS485 and standard 5 m cable.
