PS2200X Pressure Switch

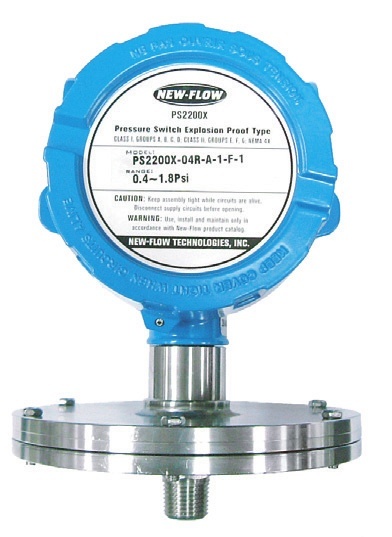

The PS2200X is an explosion-proof pressure switch for control systems, with high set-point repeatability and a narrow dead band. The set point is easily adjusted without special tools.
Explosion proof · IP68Adjustable ranges: 0.05–9.8 psiTemperature: −30 to 205°C
Features
- Welded diaphragm pressure element with SS316 wetted parts.
- Painted die-cast aluminium-alloy housing; SS316 available with type B1.
- Repeatability: ±1% of full scale.
- One or two SPDT switches, with standard, gold-contact and hermetically sealed options.
- Maximum proof pressure: 500 psi.
- Other range selections available on request.
Technical specifications
- Microswitch rating
- 15 A at 125/250 VAC; 0.4 A at 125 VDC; 3 A at 30 VDC.
- Gold-contact microswitch rating
- 1 A at 125/250 VAC.
- Hermetically sealed switch rating
- 5 A at 250 VAC.
- Process connections
- ½ inch NPT male; ¼ inch NPT male; ½ inch BSP male; ¼ inch BSP male; ½ inch PT male; ¼ inch PT male; M20 × P1.5 male.
- Conduit connections
- Female ¾ inch NPT, ½ inch NPT, or M20 × P1.5. ¾ inch NPT is standard.
- Dimensions

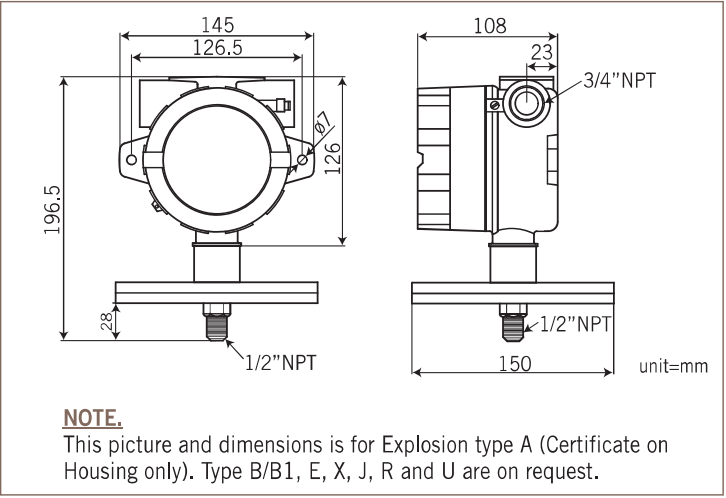

- 145 mm wide, 108 mm deep, 196.5 mm overall height for type A. See the original drawings for mounting dimensions and other explosion types.
- Housing enclosure
- Explosion-proof type; IP68.
- Temperature
- −30 to 205°C.
- Wetted parts
- SS316 (code A).
- Patents
- M295332; M334932; China: 920135.
- Japan EX certificate references
- CML 17JPN1016X; CML 17JPN3024.
Explosion-proof type / housing
| Code | Certification / housing | Classification |
|---|---|---|
| A | FM — housing only / aluminium alloy | Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III; NEMA 4X. Certificate on housing only. |
| B | Taiwan certification / aluminium alloy | Ex d IIB + H2 T6 Gb. |
| B1 | Taiwan certification / SS316 | Ex d IIB + H2 T6 Gb. |
| E | IECEx / aluminium alloy | Ex db IIB + H2 T6 Gb; Ex tb IIIC T85°C Db. |
| X | ATEX / aluminium alloy | II 2 G D Ex db IIB + H2 T6 Gb; II 2 G D Ex tb IIIC T85°C Db. |
| J | Japan certification / aluminium alloy | Ex d IIB + H2 T6 Gb; Ex t IIIC T85°C Db. |
| R | EACEx / aluminium alloy | 1Ex d IIB + H2 T6 Gb X; Ex tb IIIC T85°C Db. |
| U | UL certification / aluminium alloy | Class I, Groups A, B, C & D; Class II, Groups E, F & G. |
Pressure ranges and dead band
| Code | Adjustable range (psi) | Dead band | Maximum proof pressure (psi) |
|---|---|---|---|
| 04R | 0.05–1.8 | 0.015–0.3 | 500 |
| 10R | 0.4–2.8 | 0.2–0.5 | 500 |
| 20R | 0.4–5 | 0.3–0.6 | 500 |
| 30R | 1.6–9.8 | 0.3–0.8 | 500 |
