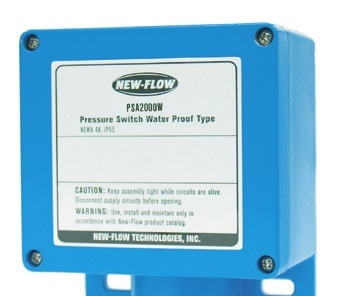

PSA2000W Pressure Switch
The PSA2000W is a weatherproof pressure switch for control systems, with high set-point repeatability and adjustable dead band. The set point is easily adjusted without special tools.
NEMA 4 / 4X · IP66Adjustable ranges: 10–1300 psiTemperature: −30 to 205°C
Features
- Welded diaphragm pressure element with SS316 wetted parts.
- Painted die-cast aluminium-alloy housing.
- One SPDT microswitch.
- Adjustable dead band.
- Maximum proof pressure: 3000 psi.
- Other range selections available on request.
Technical specifications
- Microswitch rating
- 20 A at 125/250/480 VAC; 5 A at 125 VDC.
- Process connections

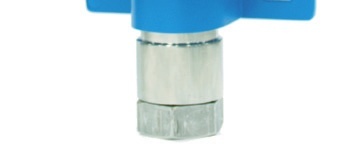

- ½ inch NPT female; ¼ inch NPT female; ½ inch BSP female; ¼ inch BSP female; ½ inch PT female; ¼ inch PT female; M20 × P1.5 female.
- Conduit connections
- Female ¾ inch NPT, ½ inch NPT (standard), or M20 × P1.5.
- Dimensions

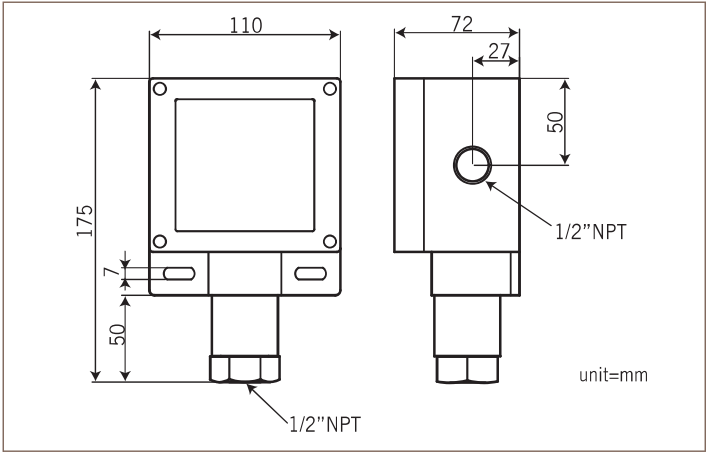

- 110 mm wide, 72 mm deep, 175 mm overall height. See the original drawing for mounting and connection dimensions.

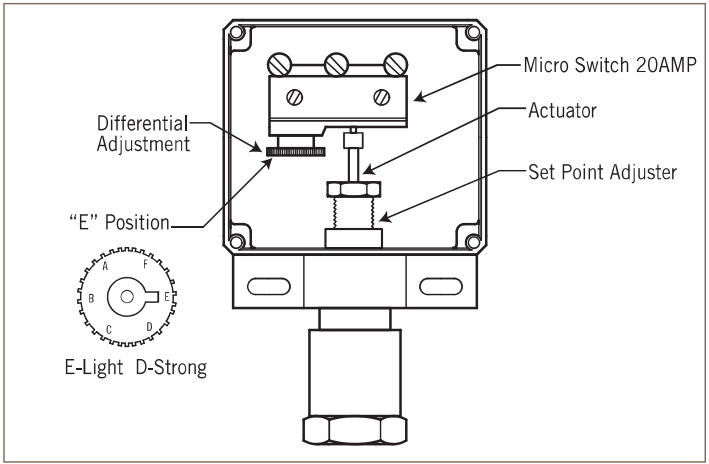

Pressure ranges and dead band
| Code | Adjustable range (psi) | Adjustable dead band at “E” position | Maximum proof pressure (psi) |
|---|---|---|---|
| 10R | 10–100 | 10–25 | 3000 |
| 20R | 35–200 | 12–30 | 3000 |
| 30R | 50–300 | 28–50 | 3000 |
| 60R | 100–600 | 28–60 | 3000 |
| 130R | 200–1300 | 42–100 | 3000 |
