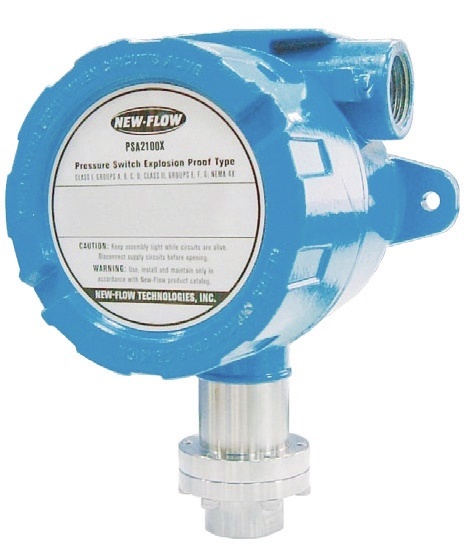

PSA2100X Pressure Switch
The PSA2100X is an explosion-proof pressure switch for control systems, with high set-point repeatability and adjustable dead band. The set point is easily adjusted without special tools.
Explosion proof · IP68Adjustable ranges: 2–100 psiTemperature: −30 to 205°C
Features
- Welded diaphragm pressure element with SS316 wetted parts.
- Painted die-cast aluminium-alloy housing; SS316 available with type B1.
- One SPDT microswitch.

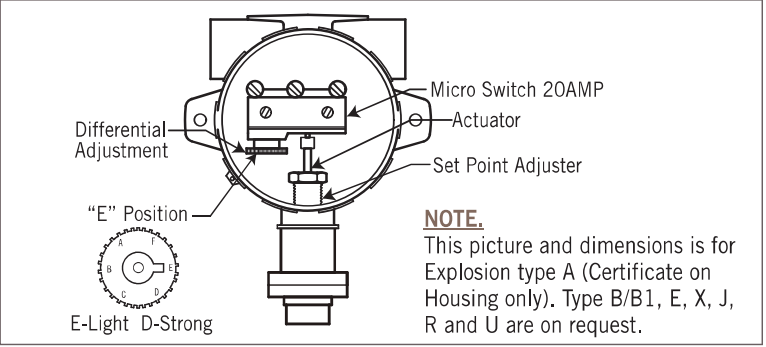

- Adjustable dead band.
- Maximum proof pressure: 1000 psi.
- Other range selections available on request.
Technical specifications
- Microswitch rating
- 20 A at 125/250/480 VAC; 5 A at 125 VDC.
- Process connections
- ½ inch NPT female; ¼ inch NPT female; ½ inch BSP female; ¼ inch BSP female; ½ inch PT female; ¼ inch PT female; M20 × P1.5 female.
- Conduit connections
- Female ¾ inch NPT, ½ inch NPT, or M20 × P1.5. ½ inch NPT is standard.

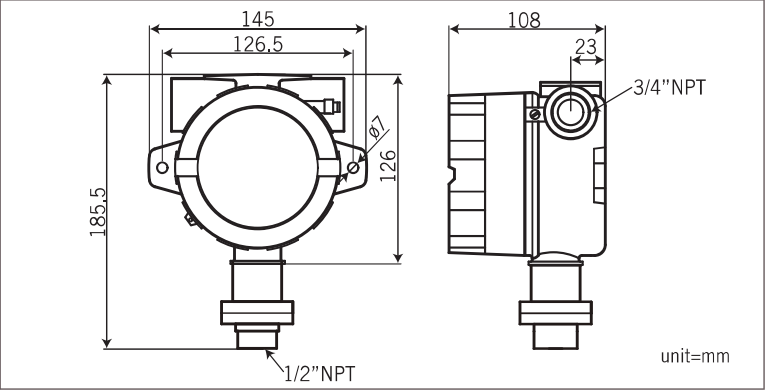

- Dimensions
- 145 mm wide, 108 mm deep, 185.5 mm overall height for type A. See the original drawings for mounting dimensions and other explosion types.
- Housing enclosure
- Explosion-proof type; IP68.
- Temperature
- −30 to 205°C.
- Wetted parts
- SS316 (code A).
- Patents
- M295332; M334932; China: 920135.
- Japan EX certificate references
- CML 17JPN1016X; CML 17JPN3024.
Explosion-proof type / housing
| Code | Certification / housing | Classification |
|---|---|---|
| A | FM — housing only / aluminium alloy | Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III; NEMA 4X. Certificate on housing only. |
| B | Taiwan certification / aluminium alloy | Ex d IIB + H2 T6 Gb. |
| B1 | Taiwan certification / SS316 | Ex d IIB + H2 T6 Gb. |
| E | IECEx / aluminium alloy | Ex db IIB + H2 T6 Gb; Ex tb IIIC T85°C Db. |
| X | ATEX / aluminium alloy | II 2 G D Ex db IIB + H2 T6 Gb; II 2 G D Ex tb IIIC T85°C Db. |
| J | Japan certification / aluminium alloy | Ex d IIB + H2 T6 Gb; Ex t IIIC T85°C Db. |
| R | EACEx / aluminium alloy | 1Ex d IIB + H2 T6 Gb X; Ex tb IIIC T85°C Db. |
| U | UL certification / aluminium alloy | Class I, Groups A, B, C & D; Class II, Groups E, F & G. |
Pressure ranges and dead band
| Code | Adjustable range (psi) | Adjustable dead band at “E” position | Maximum proof pressure (psi) |
|---|---|---|---|
| 04R | 2–12 | 1.2–3 | 1000 |
| 10R | 2–16 | 1.6–4 | 1000 |
| 20R | 2–20 | 2–5 | 1000 |
| 30R | 3–28 | 2.8–7 | 1000 |
| 40R | 7–100 | 9.9–28.4 | 1000 |
