Flow Meters

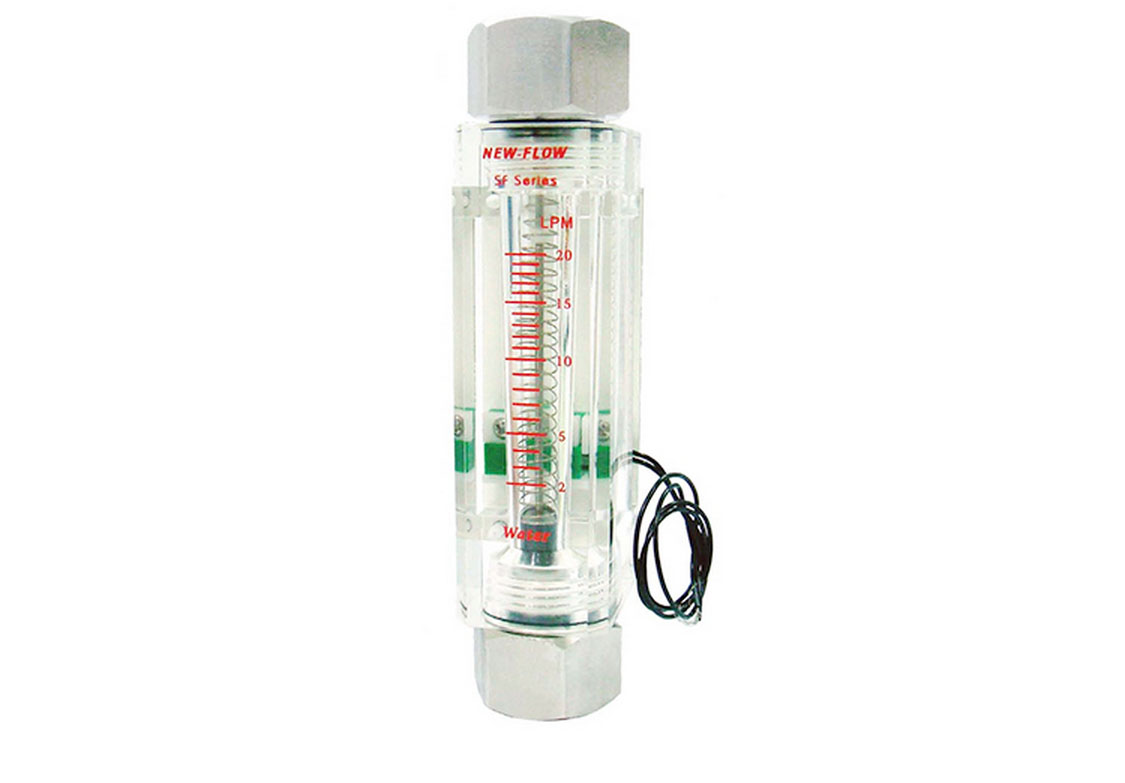

SF100 Series — Spring Type Flow Meter
Spring type · Vertical and horizontal mounting
Select a scale for your application, then choose the available connections and options. Original drawings and the complete source PDF are included below.
Find your meter

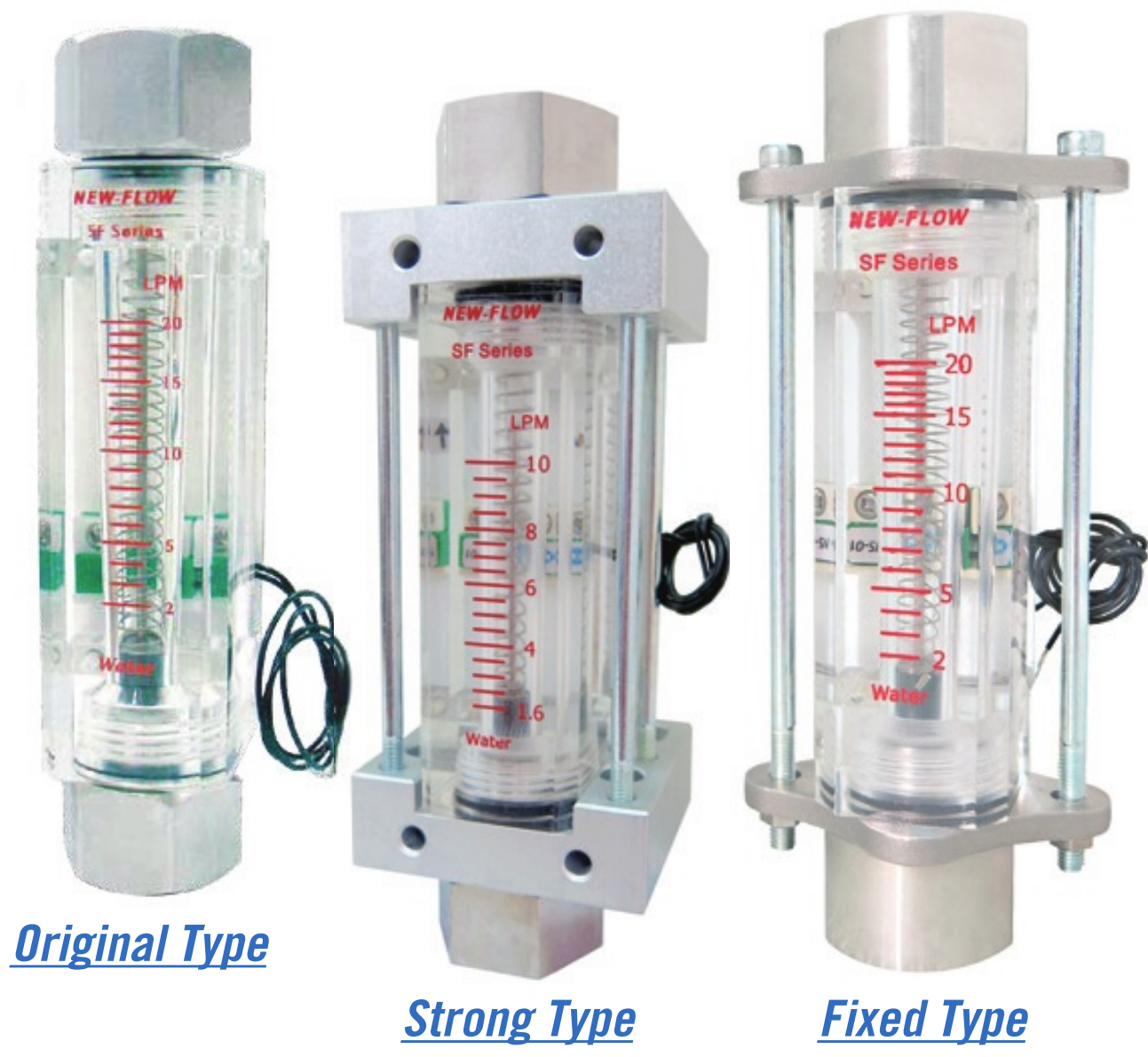

Original, strong and fixed types
Technical data
Application and operating limits
- Service
- Liquid and oil
- scale
- Water
- Mounting
- Vertical or horizontal; four flow directions
- Accuracy
- ±5% of full scale
- Pressure limit
- 150 psig (10 bar) at 38°C
- Temperature limit
- −24°C to +54°C
- Weight
- 0.45–0.5 kg
Materials and connections
- Body
- Acrylic plastic
- O-ring
- Viton
- Float
- Magnet covered with PPS plastic
- Connection / spring
- SS316
- Connection sizes
- ⅜ in, ½ in and ¾ in NPT female
- Alarm switch
- One or two setting points; form A normally open bistable reed switch
- Switch rating
- AC 125 V / 0.5 A; DC 100 V / 10 W; maximum DC 250 V <40 mA
- Alarm setting range
- 10% to 80% of full scale

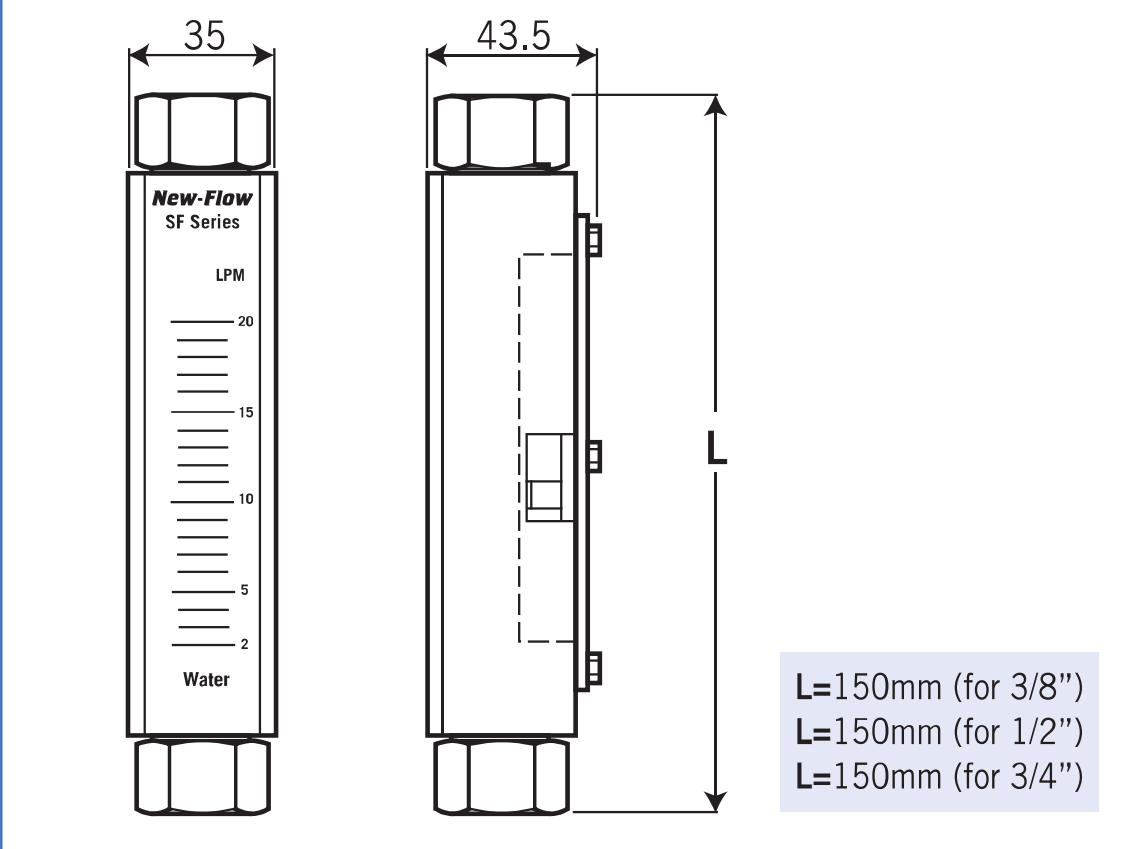

Dimensions and construction
| Type | NPT female connections | Front width (mm) | Side width (mm) | L (mm) |
|---|---|---|---|---|
| Original | ⅜ in, ½ in, ¾ in | 35 | 43.5 | 150 |

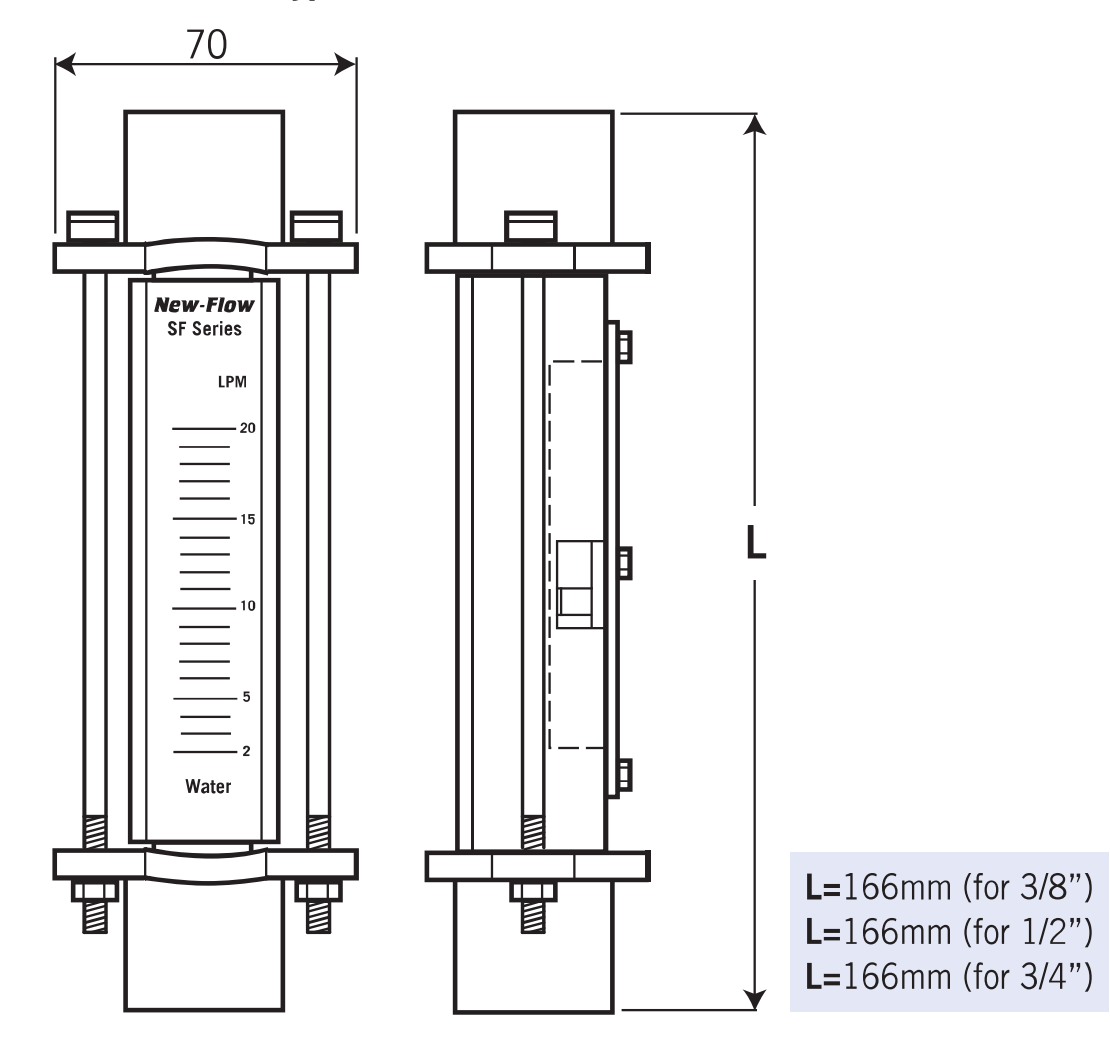

| Fixed | ⅜ in, ½ in, ¾ in | 70 | — | 166 |

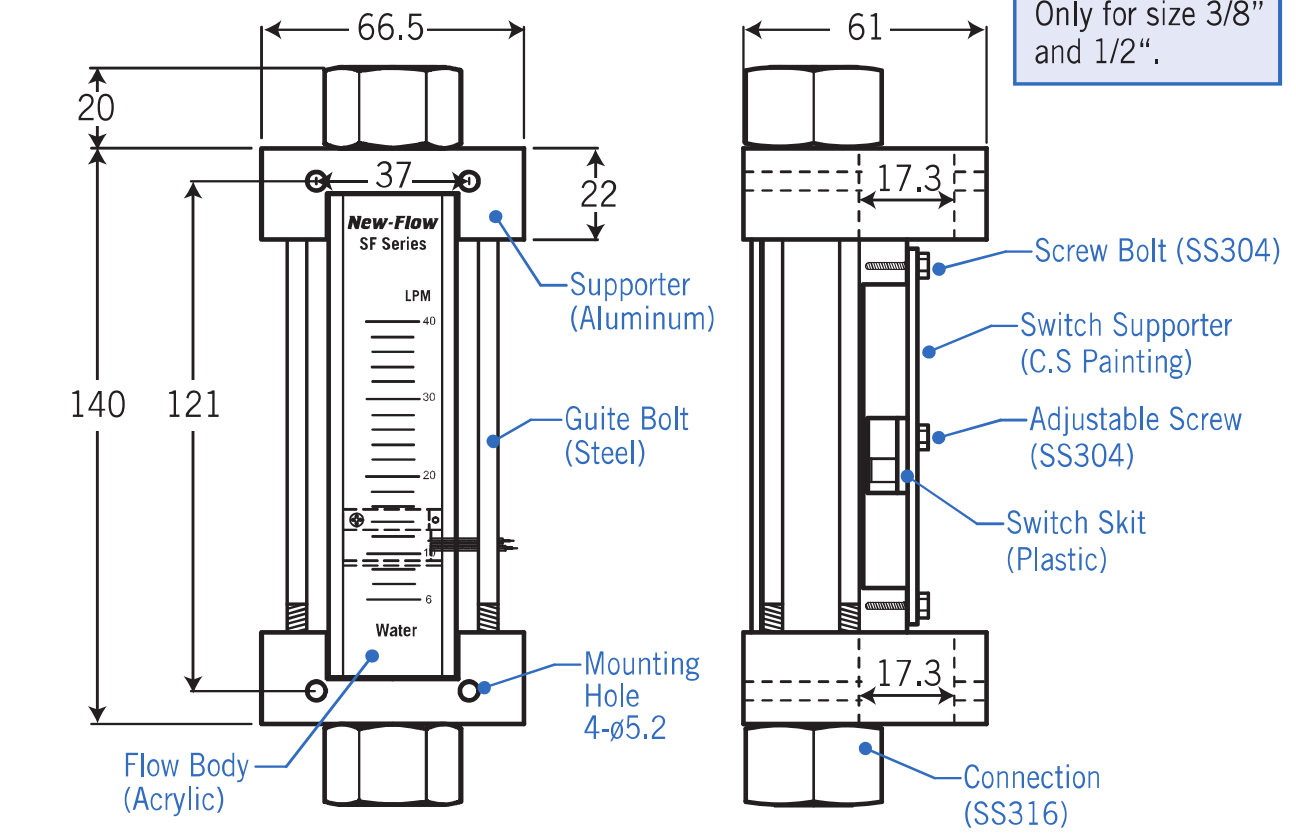

| Connections | Front width | Side width | Body span | Mounting centres | Mounting holes |
|---|---|---|---|---|---|
| ⅜ in / ½ in | 66.5 mm | 61 mm | 140 mm | 121 mm | 4 × Ø5.2 mm |
| Range code | Water flow range (L/min) |
|---|---|
| A | 0.6–4 |
| B | 1.6–10 |
| C | 2–20 |
| D | 6–40 |
| E | 3–30 |
| F | 5–50 |
| G | 6–60 |

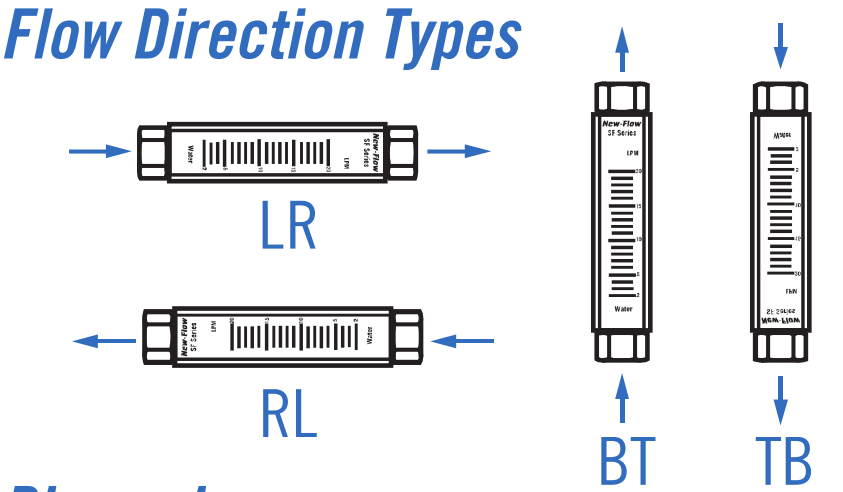

| Code | Direction |
|---|---|
| BT | Bottom to top |
| TB | Top to bottom |
| RL | Right to left |
| LR | Left to right |
Select your SF100 Series meter
Choose your fluid, units and maximum range to compare the available scales.
Specifications are general selection guidance. Confirm materials, connection standards, operating temperature and pressure with Sightflow before placing an order.
