Spring Loaded Pressure Vacuum Relief Valves
Direct acting pressure / vacuum spring loaded relief valve (also known as breather valve, conservation vent, or safety vent) is a special type of relief valve which is specifically designed for tank protection. The spring loaded relief valve includes pressure relief only, vacuum relief only and combined pressure/vacuum relief valves and are Ideal for Liquid Nitrogen Gas Tanks (LNG Tanks), all are Spring Loaded Relief Valves are available with flanged outlets or vented to atmosphere.
The Spring loaded relief valve is used extensively on bulk storage tanks, including fixed roof tanks with floating covers and Liquid Nitrogen Gas Tanks (LNG Tanks), to minimise evaporation loss. The spring loaded relief valves prevent the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel. The relief valves are all built to customer requirements and all set at our factory.

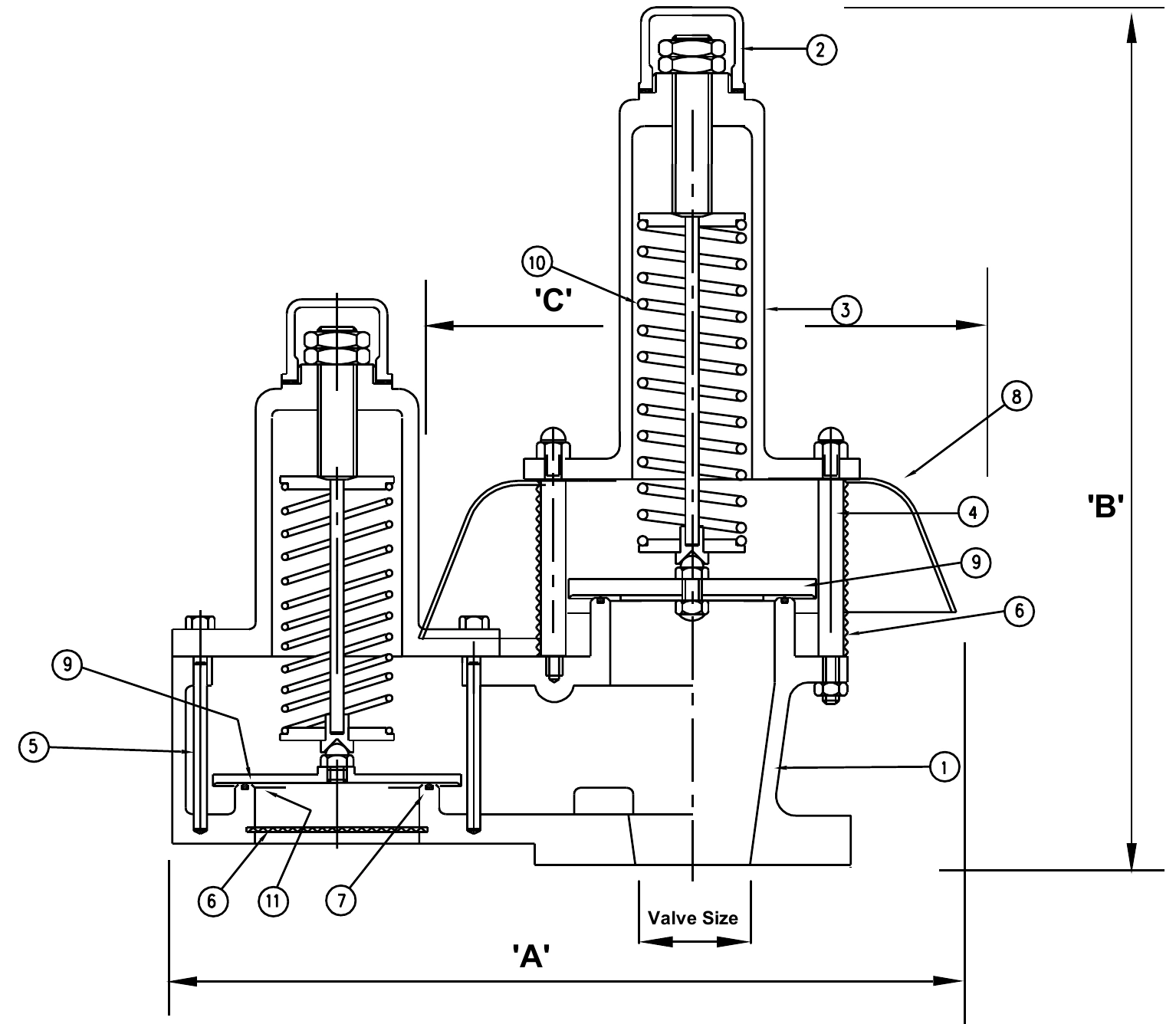

The spring loaded relief valve has a cast body which is flanged for connection to the storage tank. A weather hood protects the pressure exhaust port and a mesh cover is fitted to prevent the ingress of foreign matter for valves vented to atmosphere. Piped-away versions are also available throughout the range.

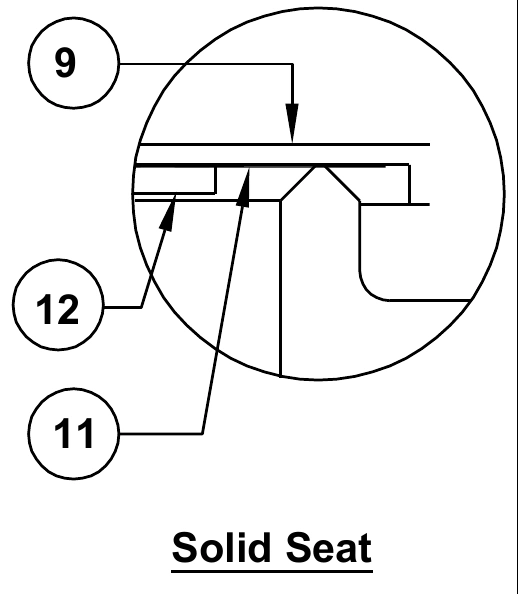

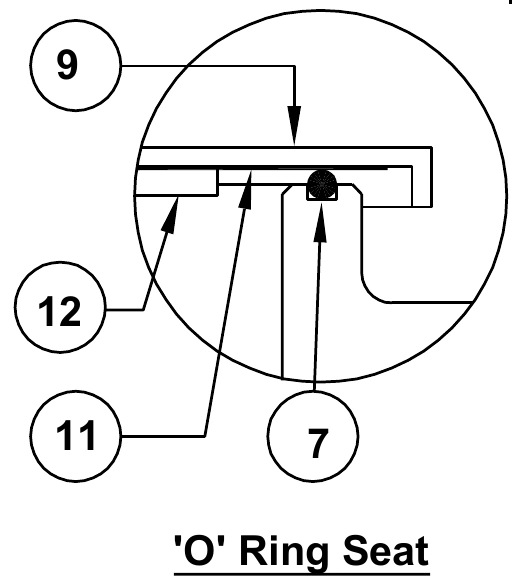

Both the pressure and vacuum sides of the relief valve incorporate a pallet and diaphragm assembly which rest on an ‘O’ ring seal to prevent leakage. This ‘O’ ring can be removed and the seat machined optically flat, producing a metal to metal seating arrangement if required. The weight of the pallet pushes the diaphragm against the seat to keep it closed. When the pressure or the vacuum increases, the pallet and diaphragm lifts and air/gas is allowed to flow.
Benefits of the spring loaded relief valve
- Pressure/vacuum relief valves provide high gas flow from a compact valve size
- provides relief from 70 mbarg to 0.5 bar
- Range of sizes from 2″ (50mm) to 12″ ( 300mm)
- Seat options available include Nitrile, PTFE and metal to metal
- Available in Aluminium, Cast iron, Carbon Steel and Stainless Steel as standard, other materials available upon request
- Wide range of pressure and vacuum settings to provide maximum tank protection
whilst ensuring minimum gas loss - Valve sizing service assists optimum valve performance/cost specification
- Multiple configuration options for venting to/from pipes and/or atmosphere
- The motherwell technical team can provide advise on any specific questions
