Type I & II Sight Glass with Threaded Retainer Cap
Sanitary sight glasses · Removable threaded retainer cap

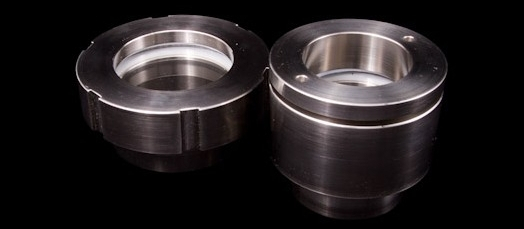

About Type I & II
Type I and II Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries. Type I and II Glasses have a threaded retainer cap that can be removed, which allows easy access to the inside of the lens for cleaning and/or sampling of the product.

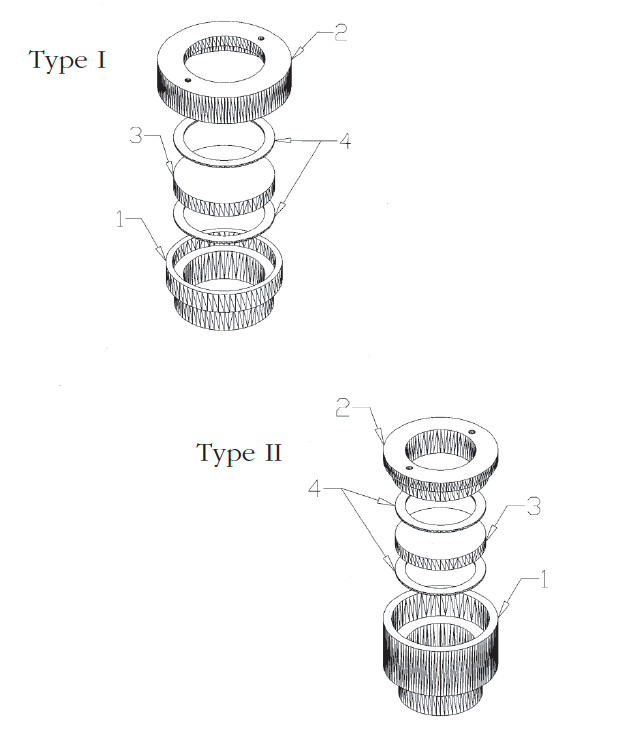

Construction and material options
- Body
- 304L Stainless Steel; 316L Stainless Steel
- Retainer cap
- 304L Stainless Steel; 316L Stainless Steel
- Glass
- Tempered Soda Lime; Tempered Borosilicate (Pyrex); Quartz; Polycarbonate (Lexan); Acrylic
- Gaskets
- Teflon®; Viton®; Buna-N; Silicone; EPDM; Gore-Tex®
Other gasket materials are available on request.
Engineering dimensions

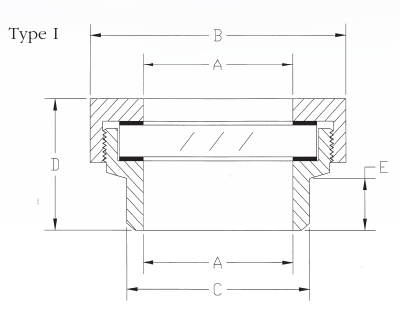

Type I
| Size | A | B | C | D | E |
|---|---|---|---|---|---|
| 65 | 2 9/16 | 4 3/8 | 3 1/8 | 2 1/16 | 13/16 |
| 80 | 3 1/8 | 4 9/16 | 3 11/16 | 2 1/4 | 7/8 |
| 100 | 3 15/16 | 5 9/16 | 4 1/2 | 2 11/16 | 1 1/4 |
| 125 | 4 15/16 | 6 9/16 | 5 3/8 | 2 1/4 | 3/4 |

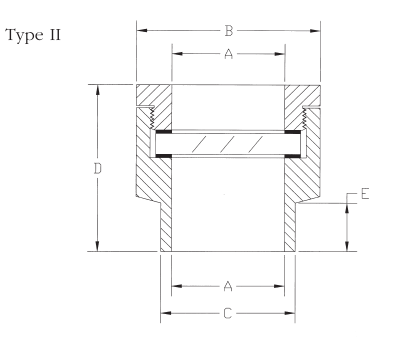

Type II
| Size | A | B | C | D | E |
|---|---|---|---|---|---|
| 65 | 2 | 3 1/4 | 2 3/8 | 3 | 7/8 |
| 80 | 3 | 4 1/4 | 3 1/2 | 3 1/4 | 7/8 |
| 100 | 4 | 5 1/4 | 4 1/2 | 3 1/2 | 1 |
| 125 | 5 | 6 1/4 | 5 5/8 | 3 3/4 | 1 1/16 |
Approvals and documentation
The original product documentation states that a Quality Assurance System was certified in accordance with Pressure Equipment Directive 97/23/EC (PED), Annex I, Paragraph 4.3, by Certification Body 0036 of TÜV Industrie Service GmbH.
Configure your Type I & II
Select an available size or describe a custom requirement. Material choices can be left for Sightflow to advise.
