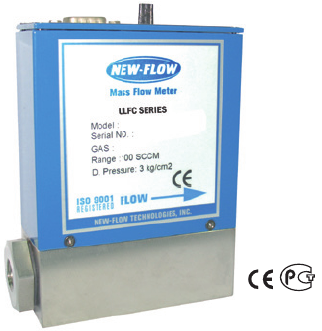

ULFC Mass Flow Controller
Thermal mass flow controller for non-corrosive gas, with a top electrical connection and no LCD display. An integral control valve allows flow adjustment using the local set point or a remote 0–5 VDC signal.
ULFC SERIES
Without LCD DisplayTop Electric Connection Type
- ±1% Accuracy
- Linear Output
- Thermal Technology
- For Using in Non Corrosive Gas
- Power Supply Included
The NEW-FLOW Thermal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The ULFC Series comes without an LCD display, and all models come with linear 0-5 VDC and 4-20 mA output.The ULFC Series measures the mass flow rate of gases in 18 ranges from 0-10 SCCM to 0-50 SLM as shown in the range table. The ULFC Series combines a mass flow transducer with an electromagnetic proportional valve. Valves are not recommended as shut off valves. Controllers use a 0-5 VDC linear set-point signal supplied from the local set-point pot or from a remote source.
Technical Data and Dimensions
- Wetted material
- SS316 flow body; optional materials available. Viton O-ring.
- Output signal
- 0–5 VDC linear, minimum load 1000 Ω; or 4–20 mA linear, loop resistance 500 Ω.
- Input power
- 24 VDC standard; optional power supply 15 VDC, 115 VAC or 220 VAC at 500 mA.
- Accuracy
- ±1% F.S., including linearity.
- Turndown ratio
- 100:1
- Repeatability
- ±0.15% F.S. or better.
- Electrical connection
- 9-pin Sub-D.
- Process connection
- ¼ in NPT female.
- Control signal
- Integral set point or remote 0–5 VDC.
- Control valve
- Electromagnetic, normally closed. Not recommended for use as a shut-off valve.
- Range
- 0–10 SCCM to 0–50 SLM at 24 VDC; 0–10 SCCM to 0–20 SLM at 15 VDC.
- Maximum pressure
- SS316: 500 psig; Tapcon plastic: 250 psig.
- Temperature range
- 0–50°C
- Response time
- 1 second.
- Temperature coefficient
- 0.05% of full scale per 1°C or better.
- Pressure coefficient
- 0.01% of full scale per PSIG or better.
- Weight
- Approximately 1.35 kg with power supply.

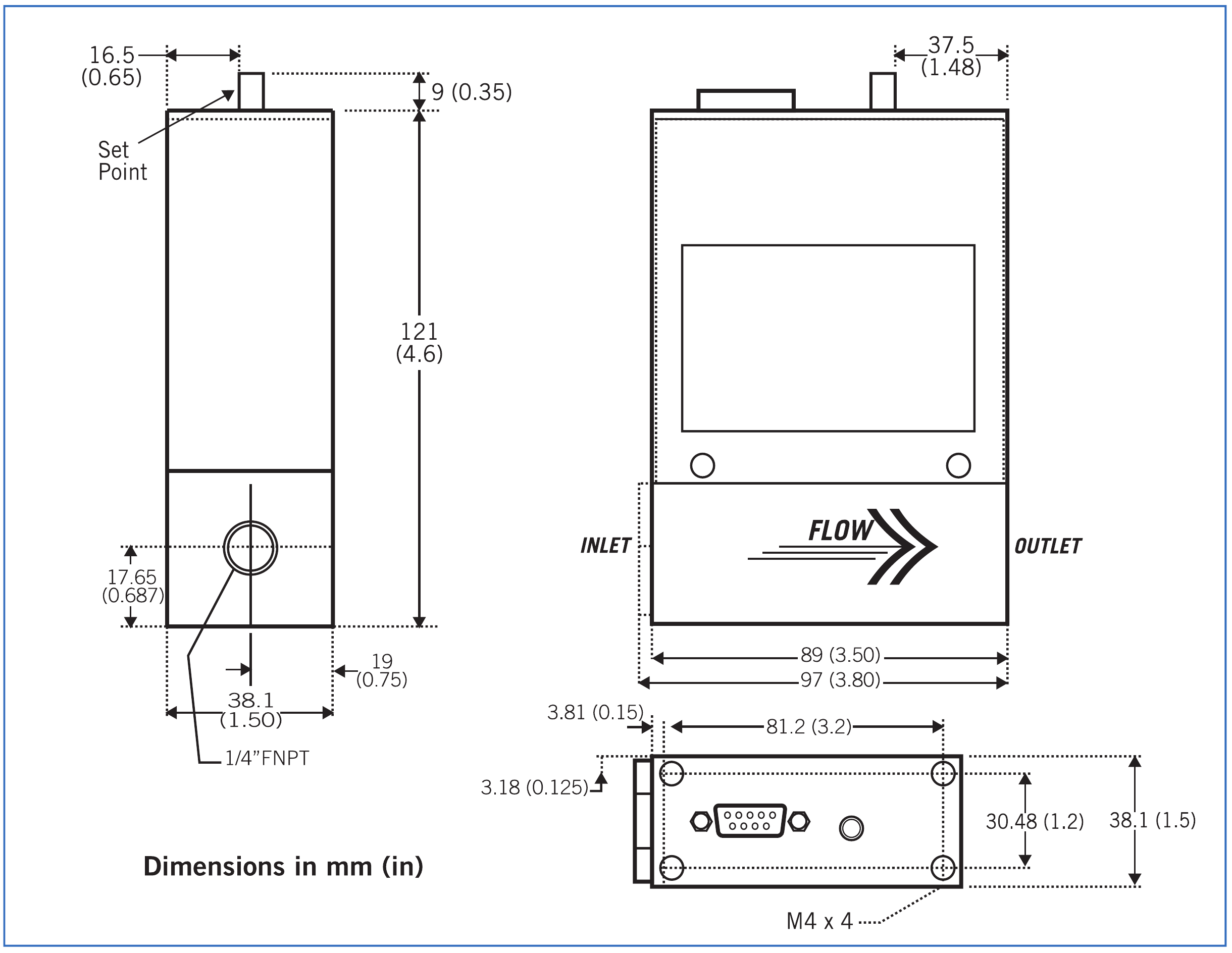

Dimensions — mm (in)
Specify the actual gas and operating conditions for calibration review.
Standard Scales and Operating Differential Pressure
Standard Scales
| Code | Flow range |
|---|---|
| 00 | 0–10 SCCM |
| 01 | 0–20 SCCM |
| 02 | 0–50 SCCM |
| 03 | 0–100 SCCM |
| 04 | 0–200 SCCM |
| 05 | 0–500 SCCM |
| Code | Flow range |
|---|---|
| 06 | 0–1 SLM |
| 07 | 0–2 SLM |
| 08 | 0–5 SLM |
| 09 | 0–10 SLM |
| 10 | 0–15 SLM |
| 11 | 0–20 SLM |
| Code | Flow range |
|---|---|
| 12 | 0–25 SLM |
| 13 | 0–30 SLM |
| 14 | 0–35 SLM |
| 15 | 0–40 SLM |
| 16 | 0–45 SLM |
| 17 | 0–50 SLM |
18 — Custom flow range
Connection: ¼ in NPT female. Custom flow range: maximum 50 SLM. Maximum with 15 VDC: 20 SLM.
Operating differential pressure
- F.S. ≤ 5 SLM: 0.5–3 kg/cm².
- 5 SLM < F.S. < 20 SLM: 1–3 kg/cm².
- 20 SLM < F.S. < 50 SLM: 2–3 kg/cm².
Low differential pressure depends on the gas and flow rate.
