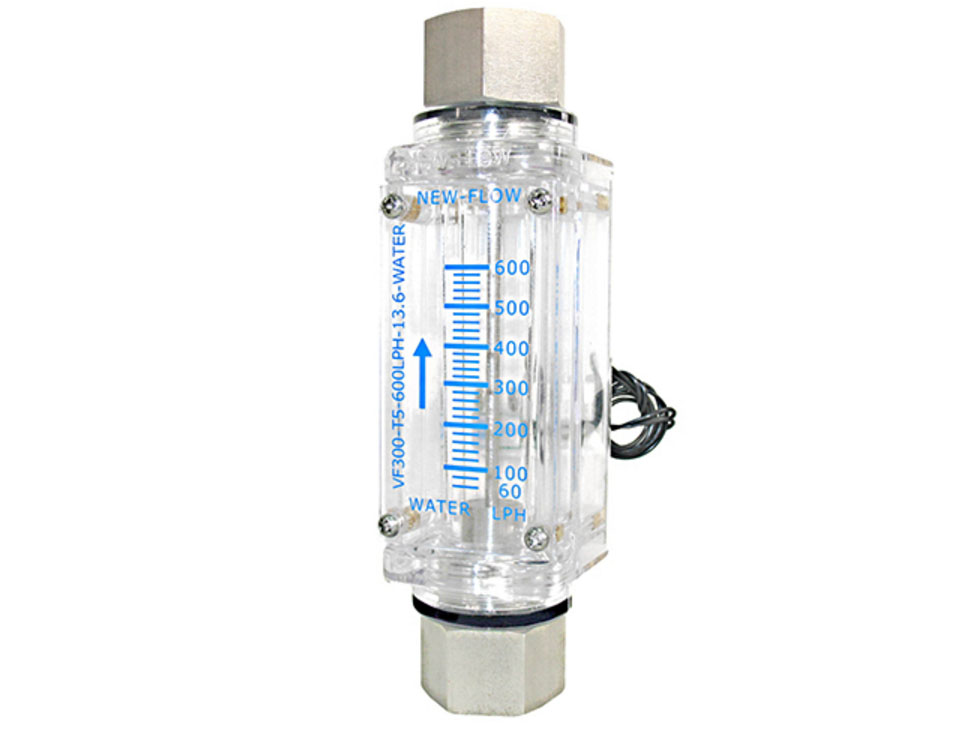

VF300 — Polycarbonate
With or without Alarm Switch

Service:
Water & Air

Wetted Parts Material: Body- Polycarbonate (P.C), Polysulfone (PSU) available; O-ring- Viton
Float- magnet cover with PPS plastic

Connection- SS316
Connection Size: 3/8″, 1/2″, 3/4″NPT female available

Mounting:Vertical position

Max. Working Pressure Limit: 1.2 MPa (12kg/cm2)
Max. Test Pressure: 2.0 MPa (20kg/cm2) (water 25ºC)

Max. Working Temperature Limit: -10ºC to 60ºC (for PC body); -10ºC to 80ºC (for PSU body)

Accuracy: +/-5% F.S.
Alarm Switch: One or Two setting points, form A N.O. type bistable reed switch
Switch Rating: AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA
Weight: 0.3~0.4 kg
(Contact setting point should be within 10% to 80% of F.S.)
