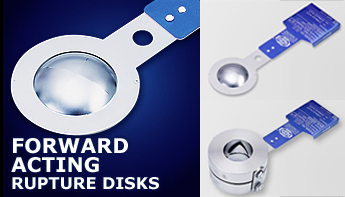

Forward Acting Metal Bursting Disks
Series SZ
Types SZ-X / SZ-M / SZ-MV
Forward acting metal bursting disks are installed in a standard holder SHZ or in a pre-torqued holder SHZ Pro between flanges.
Especially suitable for securing medium to high working pressures.
Models
- SZ-X
- STRIKO – forward acting, x-form scored
- SZ-M
- STRIKO – forward acting, Multi-part (layer) design
- SZ-MV
- STRIKO – forward acting, Multi-part, Vacuum resistant
Advantages in the application
- fragment-free opening behaviour
- ideal as single pressure relief unit or used in combination with safety valve
- high working ratio: up to 90%
- “Fail-Safe” design – incorrect installation leads to bursting of the SZ-X at or underneath the actual burst pressure
- also obtainable with a PTFE-liner
- equipped with a 3D name-plate for safe detection of correct direction of installation as a standard
- suitable for gasses, vapours and liquids
Design options include vacuum-resistant construction, a PTFE liner and special materials. Ask us for advice on your application.
Specifications
- Materials
- Stainless steels, nickel, special materials such as hastelloy, tantal
- Nominal widths
- DN 15 – DN 250
- Burst pressures
- from 0.02 bar (g) to 200 bar (g)
- Working ratio
- up to 90 %
- Burst tolerance
- min +/- 5 %
- Utilisation temperature range
- -200 ℃ to +480 ℃
- Bursting disk holder
- SHZ and SHZ Pro
- Vacuum support
- optional
- Burst / Leakage indication
- optionally installed on discharge side
- Installation before safety valve?
- yes, since fragment-free opening
Accessories – Holders / Burst / Leakage Indication
Optional holders
| Series | Description |
|---|---|
| SHZ | Standard holder for forward acting metal bursting discs. |
| SHZ Pro | Pre-torqued holder for forward acting metal bursting discs. |
Burst / leakage indication
| Series | Description |
|---|---|
| SVT 02 | Burst Indicator for breakage of bursting disk / opening of safety valve |
| SVT 05 | Leakage sensor (activates already for the smallest leaks) |
| SVT AM | Full metal alarm for bursting disk monitoring (for high temperatures up to +600 °C and at aggressive media) |
| SVT AM-L | Alarm for bursting disks/breakage monitoring (use for lowest burst pressures, from 10 mbar (g)) |
