Reverse Acting Metal Bursting Disks
Series SU
Types SU-R / SU-C / SU-X

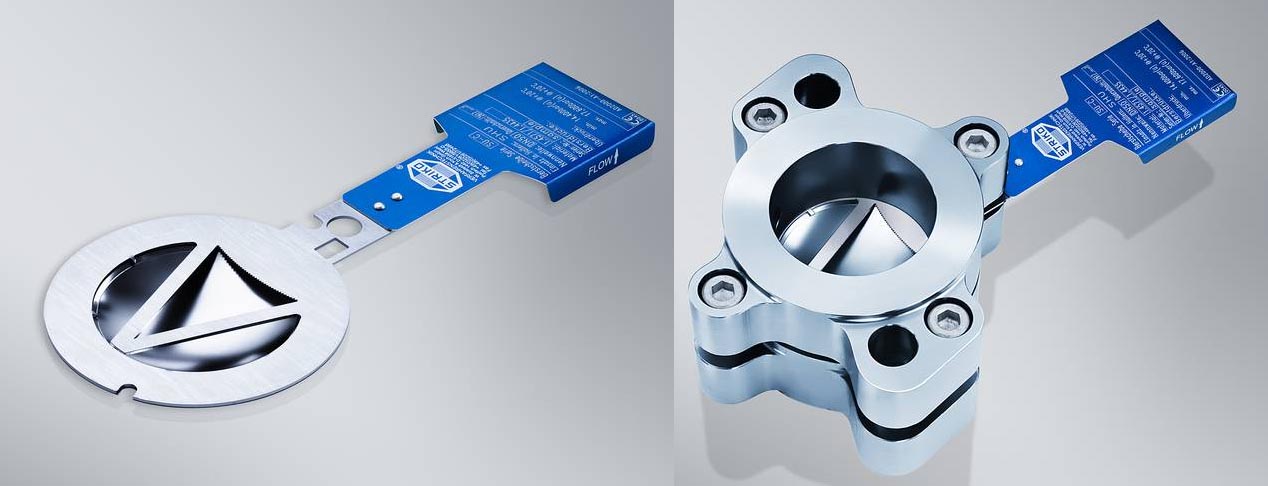

STRIKO reverse acting metal bursting disks are installed in a standard holder SHU or in a pre-torqued holder SHU Pro between flanges. They are especially suitable for securing pulsating working pressures of medium to high strength.
Models
- SU-R
- STRIKO – reverse acting, shearRing
- SU-C
- STRIKO – reverse acting, C-form scored
- SU-X
- STRIKO – reverse acting, x-form scored
Advantages in the application
- fragment-free opening behaviour
- ideal as single pressure relief unit or used in combination with safety valve
- Vacuum resistant
- optimum working ratio: 90%
- counter pressures up to min 1.4 times of the burst pressure are possible
- testing safety valves without time consuming removal
- high pressure change resistance
- equipped with a 3D name-plate for safe detection of correct direction of installation as a standard
- ideal for securing media that tend to “cake”
Design options include integrated burst indication, standard materials and special materials. Ask us for advice on your application.
Specifications
- Materials
- Stainless steels, Inconel, nickel, special materials such as hastelloy
- Nominal widths
- DN 25 – DN 250
- Burst pressures
- from 0.3 bar (g) to 70 bar (g)
- Working ratio
- 90 %
- Burst tolerance
- min +/- 5 %
- Utilisation temperature range
- -200 ℃ to +480 ℃
- Bursting disc holder
- SHU and SHU Pro
- Vacuum support
- not necessary
- Burst / Leakage Indication
- optionally installed on discharge side
- Installation before safety valve?
- yes
Accessories – Holders / Burst / Leakage Indication
Optional holders
| Series | Description |
|---|---|
| SHU | Standard holder for reverse acting metal bursting discs. |
| SHU Pro | Pre-torqued holder for reverse acting metal bursting discs. |
Burst / leakage indication
| Series | Description |
|---|---|
| SVT 02 | Burst Indicator for breakage of bursting disk / opening of safety valve |
| SVT 05 | Leakage sensor (activates already for the smallest leaks) |
| SVT AM | Full metal alarm for bursting disk monitoring (for high temperatures up to +600 °C and at aggressive media) |
| SVT AM-L | Alarm for bursting disks/breakage monitoring (use for lowest burst pressures, from 10 mbar (g)) |
