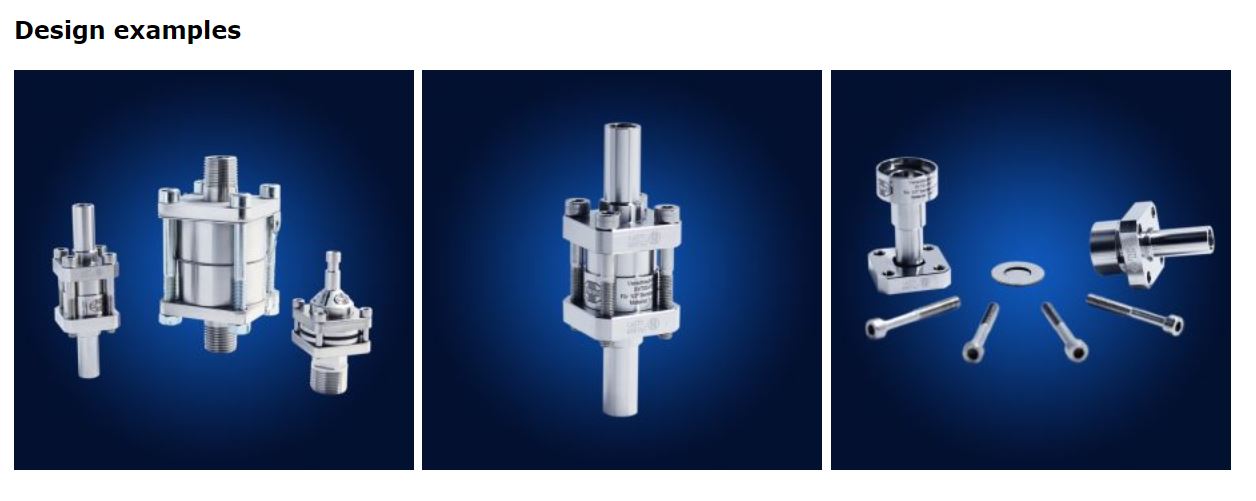

Pre-loaded Holder SH Lab
A compact, rugged holder for STRIKO metal bursting discs, with plain-pipe connections and alternative custom-built connections available.
Advantages in the application
- Very low leakage rates down to 10⁻⁹ mbar·l/s are achievable.
- Safe sealing without applying torque to the bursting disc.
- Assembly protects the disc from damage.
- Stainless steel and special-material designs.
- Plain-pipe diameters from 6 to 16 mm; 12 mm standard.
Specifications
- Connection diameter
- 6–16 mm; 12 mm standard. Alternative connections and sizes on request.
- Materials
- Stainless steels; 1.4571 standard. Hastelloy or Alloy on request.
- Pressure range
- 1–1,000 bar(g), depending on disc type and nominal width.
- Temperature range
- −200°C to +480°C
Related discs and accessories
