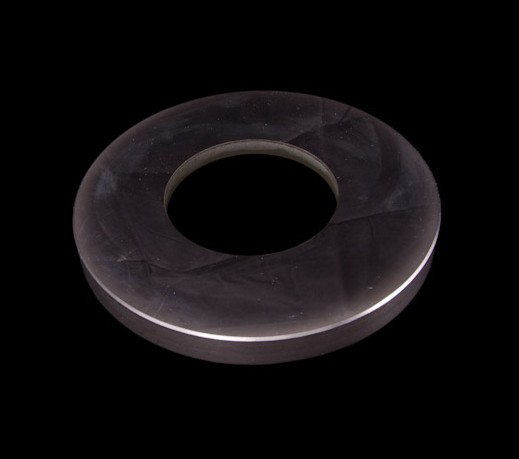

DuraPort Raised Face Flange Fused Sight Glass

Description:

The DuraPort Raised Face Flange Sight Glass combines the strength of steel with the visual clarity of glass. The self-contained, no-maintenance units are created by fusing a glass lens inside of a metal ring. The Raised Face units are designed to bolt between a new or existing flange connection and a cover flange. These units are also available with an ANSI weld pad which can be machined to fit the radius of the vessel for a complete weld-on sight glass package. Standard units are for ANSI flanges but other types (such as DIN) are available upon request.

View Engineering Information >>

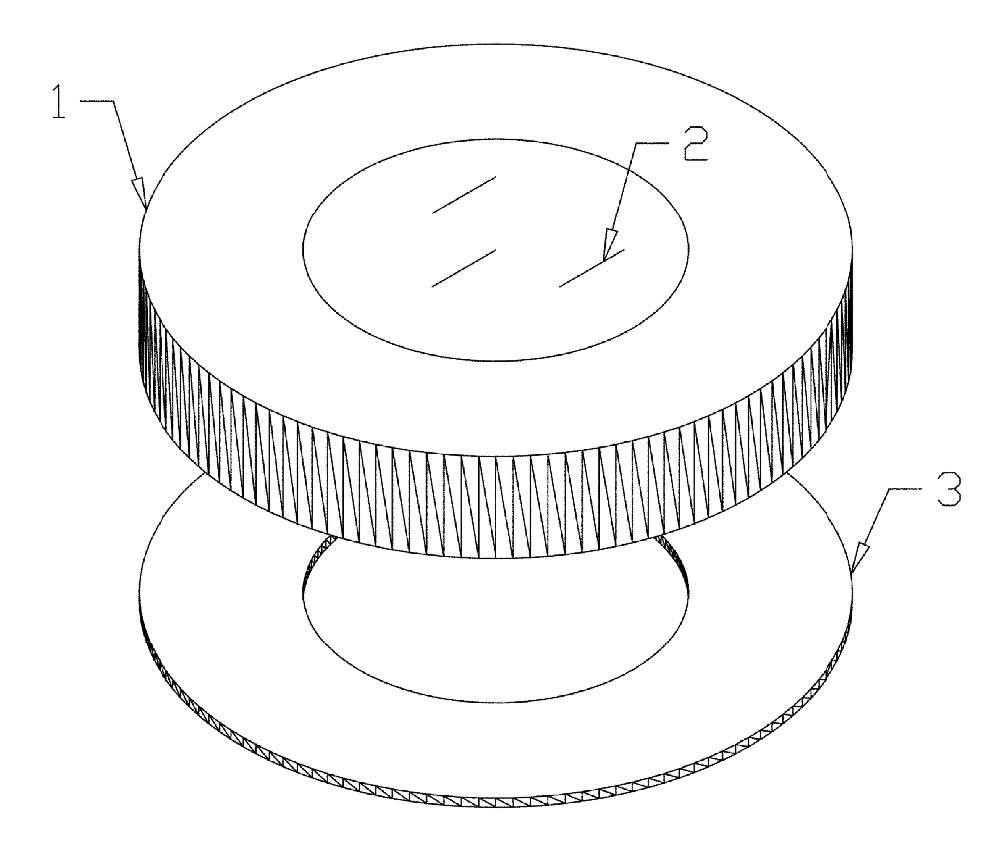

Materials of Construction:

1. Ring: 2205 Stainless Steel; 316 Stainless Steel; Hastelloy; Carbon Steel
2. Glass: Borosilicate; Soda Lime
3. Optional Mating Gasket: Teflon; Grafoil; Gylon; JM-961; G9800; etc.
