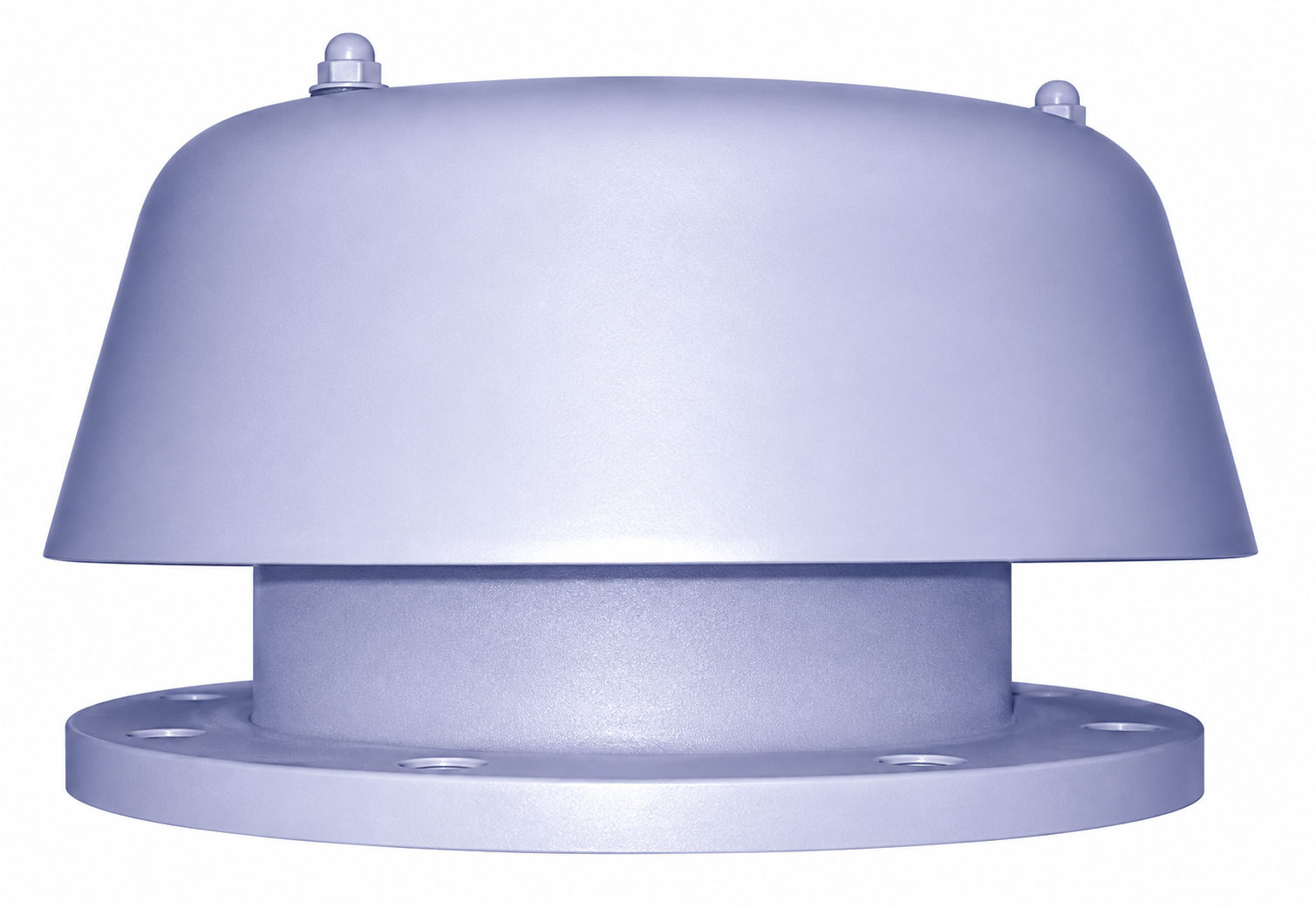

CNC 104 Series Rim Vent provides low pressure relief for storage tanks and originally designed for floating roof tanks.
Our rim vent comes in the following configuration
- Aluminium construction
- Standard 6″ flanged or screwed units
- Set pressure 0.865″ wg
- Low cost pressure relief
- Stainless steel screen mesh
- Ideal for floating roof tanks
- Instantly available
The rim Vent has a cast body which can be flanged or threaded for connection to the storage tank, the weatherhood protects the exhaust port of the rim vent from atmospheric conditions. The rim vent is fitted with a hinged pallet lift set to lift when the set pressure in the tank exceeds the set-pressure allaowing the air/gas to flow.
