Model L Flange Sight Glass
Full vacuum to 100 psi · No metal contact with the process
About Model L

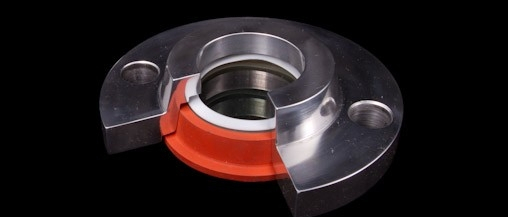

The Model L Flange is developed to satisfy the need for pressure requirements from full vacuum to 100 psi while still providing the safety of PresSure Products’ higher-pressure and temperature units. The Model L Flange unit mounts on standard 150 psi ANSI B16.5 (2" to 8") flange accommodations, and is rated for temperatures up to 450°F. The wetted parts are the seal, the bottom cushion gasket, and the glass lens, held in place by either a carbon steel or stainless steel flange. The unit can be provided with a Silicone, Viton®, Teflon®, or EPDM seal, and different materials of construction are available to meet your process needs. Applications requiring DIN standards or non-ANSI flanges are available upon request; no metal parts are in contact with the process and no mating gaskets required.
- Connection
- 150 psi ANSI B16.5 flange accommodations
- Product size range
- 2–8 inches
- Operating pressure
- Full vacuum to 100 psi
- Temperature
- Up to 450°F
- Standard lens
- Two-piece laminated tempered soda lime
- Other Model L connection
- Model L Weld sight glass

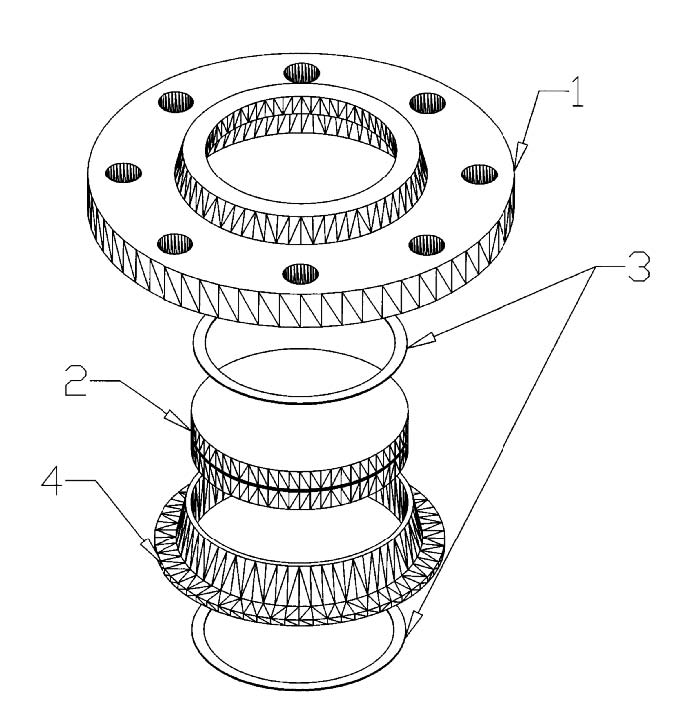

Construction and material options
- 1Flange
- 316 Stainless Steel SA-182; 304 Stainless Steel SA-182; Carbon Steel SA-105
- 2Lens
- Two-Piece Laminated Tempered Soda Lime (Standard); Tempered Borosilicate; Annealed Borosilicate; Polycarbonate; Acrylic
- 3Lens cushion gaskets
- Teflon®; Grafoil®; Gylon®; Blue-Gard®; other materials on request
- 4Seal
- Teflon® (Standard); Viton® (Standard); Silicone (Standard); EPDM — special order; other materials on request
Engineering dimensions — inches

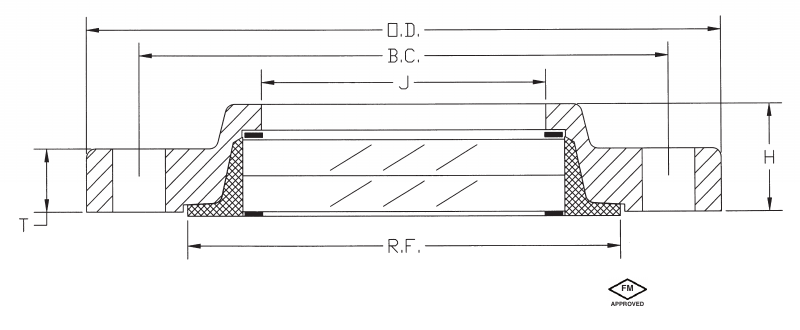

Use the drawing letters with the table below. Sizes and dimensions are in inches. The 150 psi flange connection does not change the unit’s operating range of full vacuum to 100 psi.
For other sizes, DIN or non-ANSI flange connections, select a custom requirement in the options below.
Open the original engineering sheet
| Size | O.D. | T | J | R.F. | H | Bolt holes — qty | Bolt hole dia. | Bolt circle dia. |
|---|---|---|---|---|---|---|---|---|
| 2 | 6 | 11/16 | 2 | 3 5/8 | 1 1/4 | 4 | 3/4 | 4 3/4 |
| 3 | 7 1/2 | 7/8 | 3 | 5 | 1 1/2 | 4 | 3/4 | 6 |
| 4 | 9 | 7/8 | 4 | 6 3/16 | 1 1/2 | 8 | 3/4 | 7 1/2 |
| 6 | 11 | 15/16 | 6 | 8 1/2 | 1 1/2 | 8 | 7/8 | 9 1/2 |
| 8 | 13 1/2 | 1 1/8 | 8 | 10 5/8 | 1 3/4 | 8 | 7/8 | 11 3/4 |
Patent number: 5,210,658. When bolting to a slip-on flange, an adaptor plate may be required. DIN or non-ANSI flanges are available upon request. No mating gasket required.
Approvals and documentation
The original product documentation states:
This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
