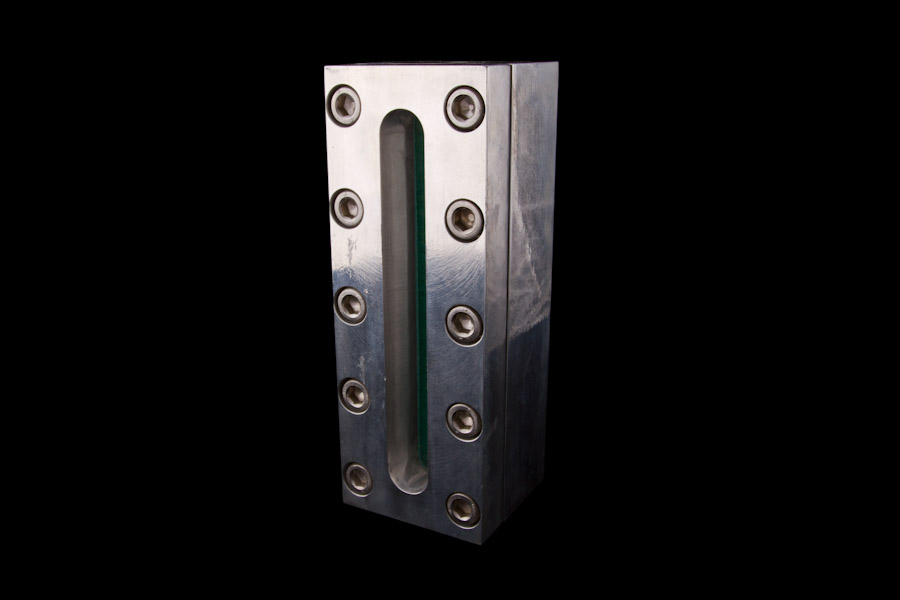

Reflex Liquid Level Gauge
Description:
The Reflex Liquid Level Gauge is used to see the level of the liquid in a vessel or tank. The gauges are used as a single unit or stacked up in multiple sections to view a desired height of liquid in a vessel or tank. Standard units are furnished with 1/2" or 3/4" NPT female-end connections. The Reflex can also be furnished with other connections (socket weld, flanged, sanitary, or as specified) as well as with various types of valves upon request. Reflex liquid level gauges offer low initial cost and, if there is no reason to observe the media, easy level reading.
View Engineering Information >>
Materials of Construction:
- Body: 316 Stainless Steel; Carbon Steel
- Retainer Cap: 316 Stainless Steel; Carbon Steel
- Lens: Borosilicate (Pyrex®)— Reflex—Gauge Glass; Quartz
- Lens Cushion Gaskets: Teflon®; Grafoil®; Gylon®; Blue-Gard®; etc.
- O-Rings or Packing: Viton®; Teflon®; Graphite; Buna-N; Silicone; EPDM; etc.
- Retainer Cap Bolts: 18-8 Stainless Steel; Carbon Steel SA-193
- Set Screws: 18-8 Stainless Steel; Carbon Steel SA-193
This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
