DuraPort Sanitary Fused Sight Glass

Description:

The DuraPort Sanitary Sight Glass combines the strength of steel with the visual clarity of glass. These are self-contained, no-maintenance units created by fusing glass inside of a steel ring. This concept works especially well in sanitary applications where an uninterrupted surface with no cracks or crevices is required. The sanitary clamp design allows the unit to be quickly removed without tools for easy cleaning.

View Engineering Information >>

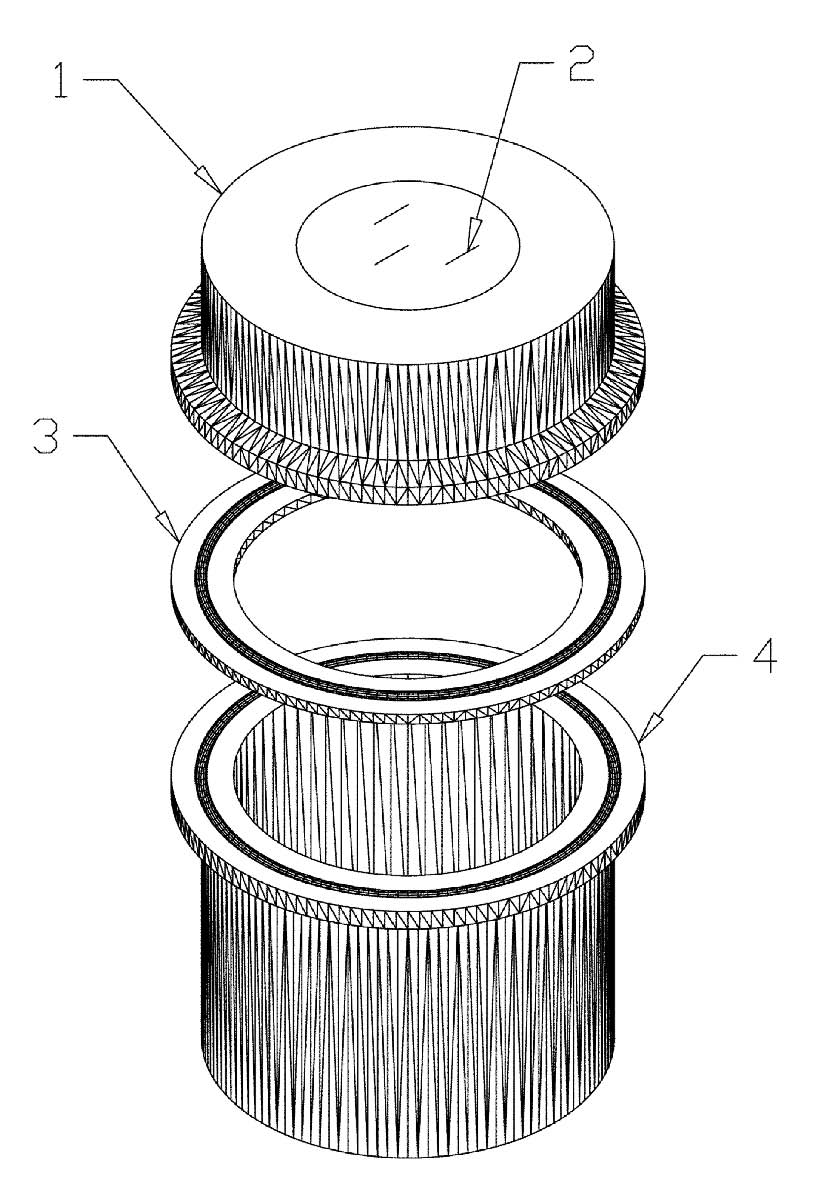

Materials of Construction:

1. Ring: 2205 Stainless Steel; 316 Stainless Steel; Hastelloy
2. Glass: Borosilicate; Soda Lime
3. Sanitary Gasket: Teflon; Viton; EPDM; Buna
4. Optional Welding Ferrule: 304 or 316 Stainless Steel
   Optional Sanitary Clamp: 304 Stainless Steel (not shown)
