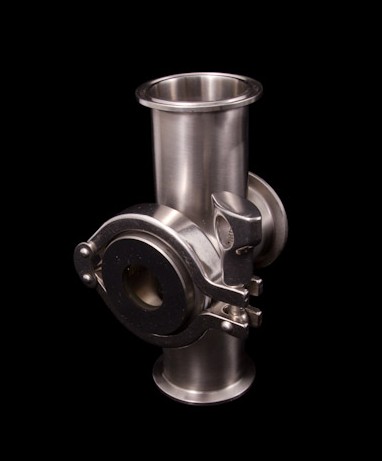

DuraPort Sanitary See-Thru Fused Sight Glass

Description:

The DuraPort Sanitary See-Thru Sight Flow Indicator utilizes the DuraPort Sanitary Sight Glass mounted to a sanitary short-stack cross to provide a view inside a line. The DuraPort Sanitary Sight Glass lets the user easily distinguish flow in the line as well as color or clarity of the material. The sanitary clamp design allows the unit to be quickly removed without tools for easy cleaning.

View Engineering Information >>

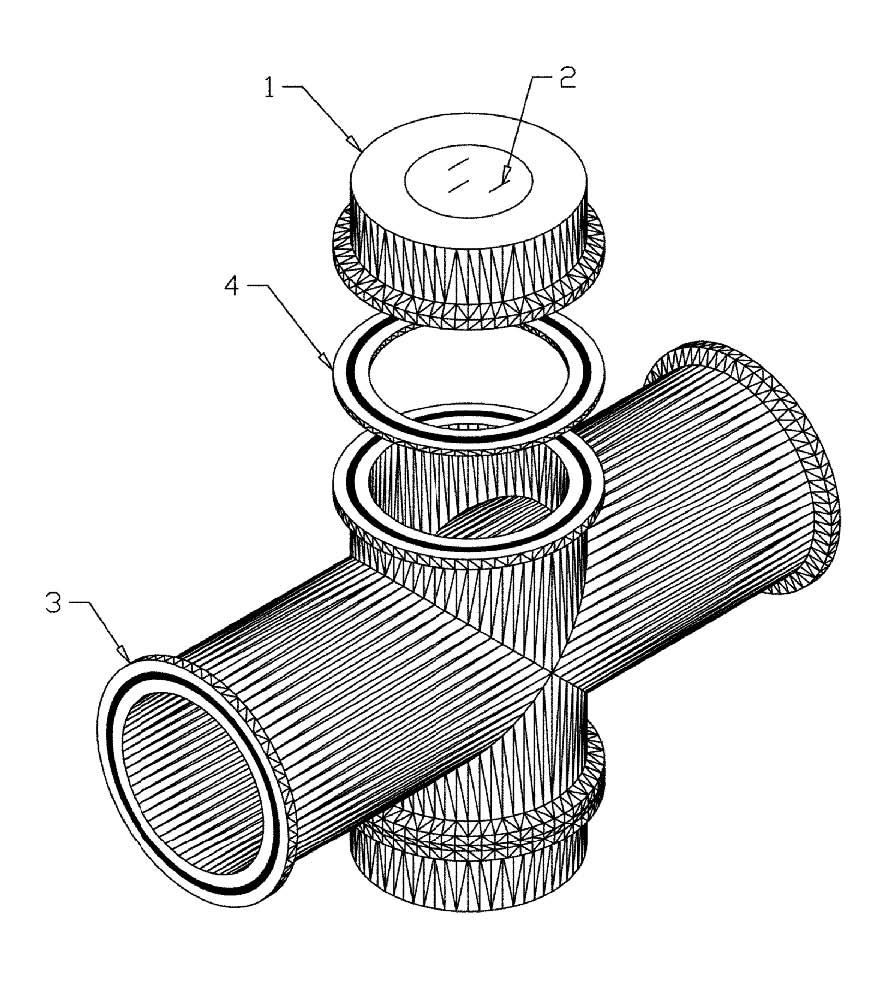

Materials of Construction:

1. Ring: 2205 Stainless Steel; 316 Stainless Steel; Hastelloy
2. Glass: Borosilicate; Soda Lime
3. Center: 304 Stainless Steel; 316 Stainless Steel
4. Sanitary Gaskets: Teflon; Viton; EPDM; Buna Sanitary Clamps: 304 Stainless Steel (not shown)
